26

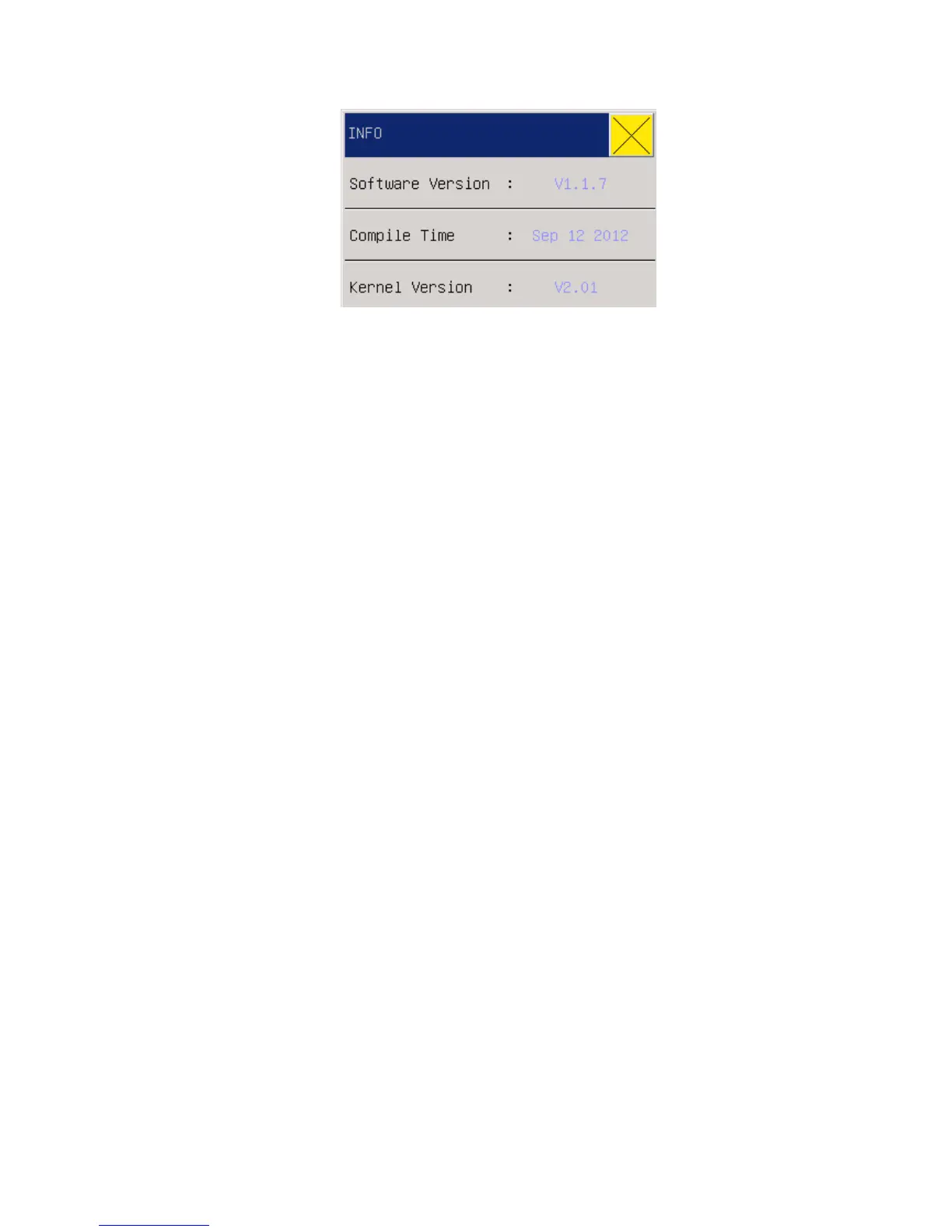

Fig 3-14 Monitoring Information
3.12 DRUG CALCULATION & TITRATION LIST
The portable-type multi-parameter monitor can provide the computation for 15 kinds of medicines
as well as the Titration List Display Function, and output the content of Titration list on the
recorder.
3.13 Maintenance
In the “MAIN MENU” select the “MAINTENANCE”, submenu pop out:
Password: 5188
a) Language：you can select CHINESE(SIMP) or ENGLISH
b) VGA size：12.1 `TFT
c) Wave Mode: Color or mono
d) Wave type: SpO2 waveform and RESP waveform has two type to select: LINE and
FILL
e) Exporting Data：Data including alarm data, NIBP list data and trend table data. The
monitor export data provides two options: CSV (* csv) file export and TXT (* txt) file
export. Based on the need to export data format
f) Screen Adjust: switch on touch screen as monitor indicated.
g) Factory default: you can into the menu “default” ,if you select “YES” , adopt factory
default big configuration ,the previous configure will be lost.
3.14 DEMO (Password: 5188)
In the “System Menu” select the “Demo” to have the “Input Demo Password” dialog box pop up.
