148
CO2 hotkey in the parameter area, and then press the shuttle button to enter the menu “CO2
Settings”.

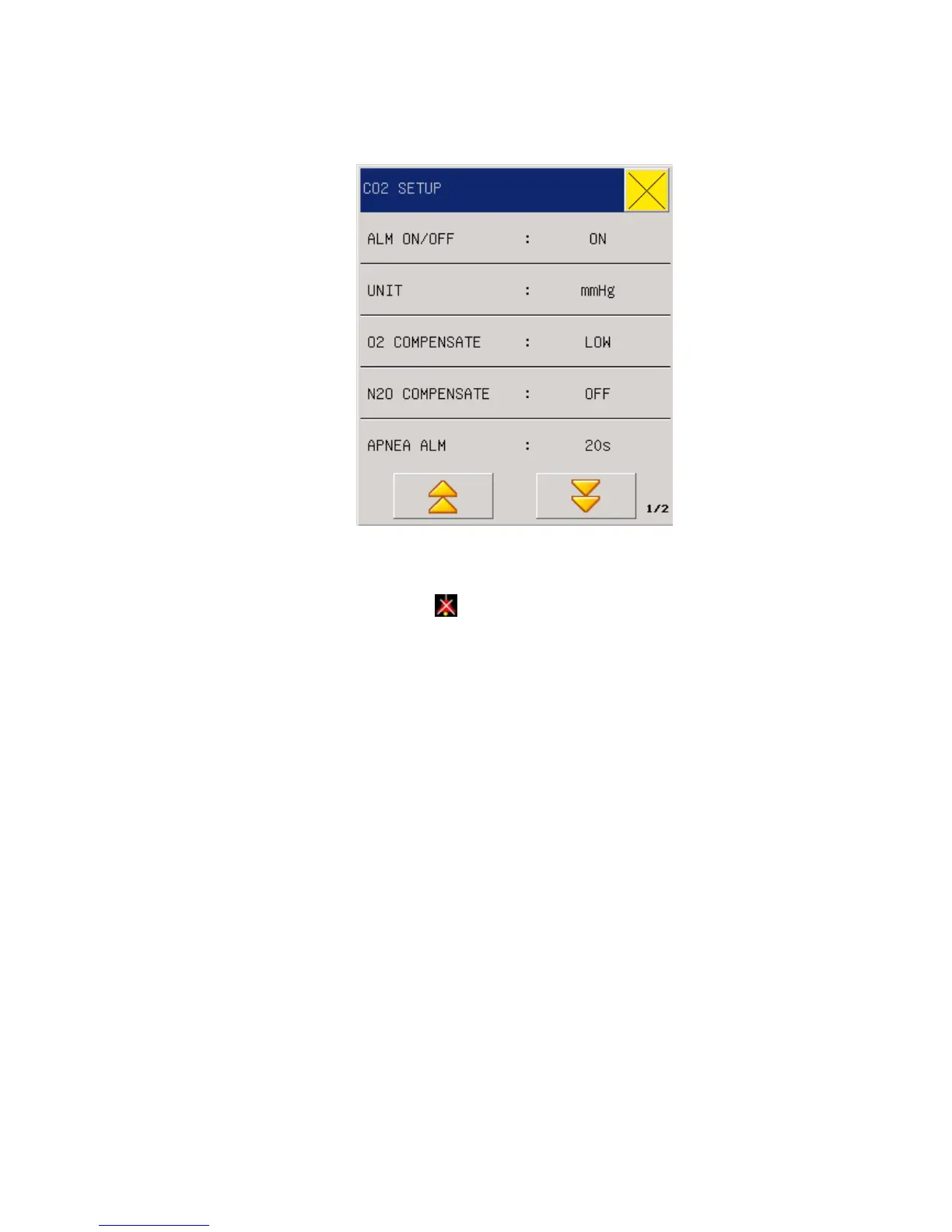

Fig. 17-3 CO2 Settings
ALM ON/OFF(Alarm Switch): select “On" to enable CO2 alarms, or select “Off" to
disable CO2 alarms with the icon “
” appearing beside “CO2” in the parameter area on
the screen.
Pressure Unit: mmHg, kpa.
Oxygen Compensation: High ,Med ,Low
N2O Compensation: On or Off.
APNEA ALM: No ,1s ,2s ,5s, 10s ,15s,20s ,25s ,30s ,35s ,40s
ET ALM SETUP :set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
FI ALM SETUP : set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
AWRR ALM SETUP : set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
DEFAULT: select “Yes” to enable the default settings to override the original settings.
2. CO2 Settings in Waveform Area
In the AG interface, rotate the shuttle button to move the cursor on the display interface to
the CO2 hotkey in the waveform area, and then press the shuttle button to enter the menu
“AG CO2” as below:
