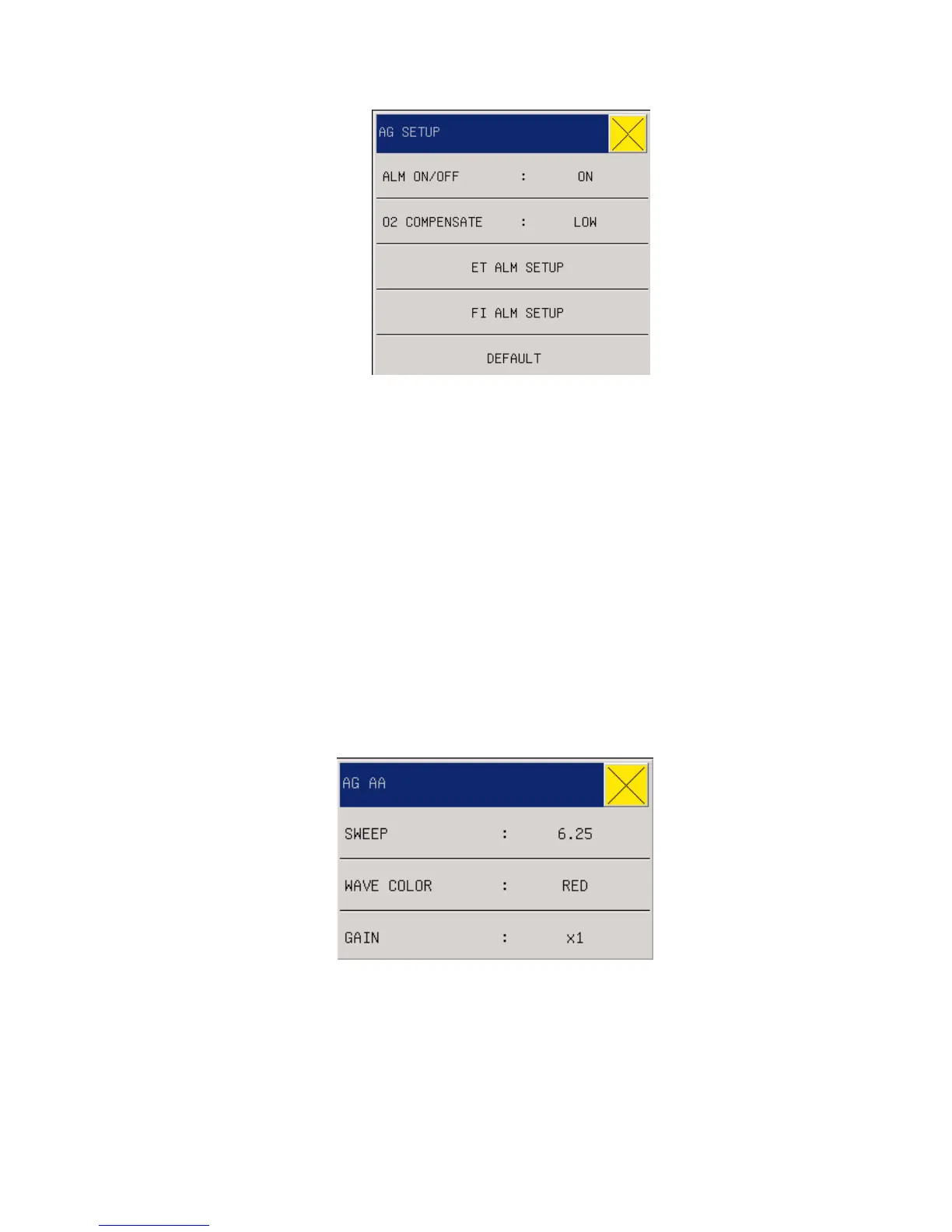

Fig. 17-9 AG Settings
ALM ON/OFF
Oxygen Compensation: HIGH ,MED ,LOW.
ET ALM SETUP :set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
FI ALM SETUP : set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
DEFAULT: select “Yes” to enable the default settings to override the original settings.
2. AGAA Settings in Waveform Area
In the AG interface, rotate the shuttle button to move the cursor on the display interface to the
hotkey “AG X” in the waveform area, and then press the shuttle button to enter the menu “AG
AA” as below:
Fig. 17-10 AG AA Settings
Waveform Speed: 12.5mm/s or 25.0mm/s.
Waveform Color: Green, Cyan, Red, Yellow, White, Blue, or Purple.
Gain: ×1, ×2, or ×4, to adjust the wave amplitude of the AG AA waveform.
3. AG X Settings in Measurement Setup
