24

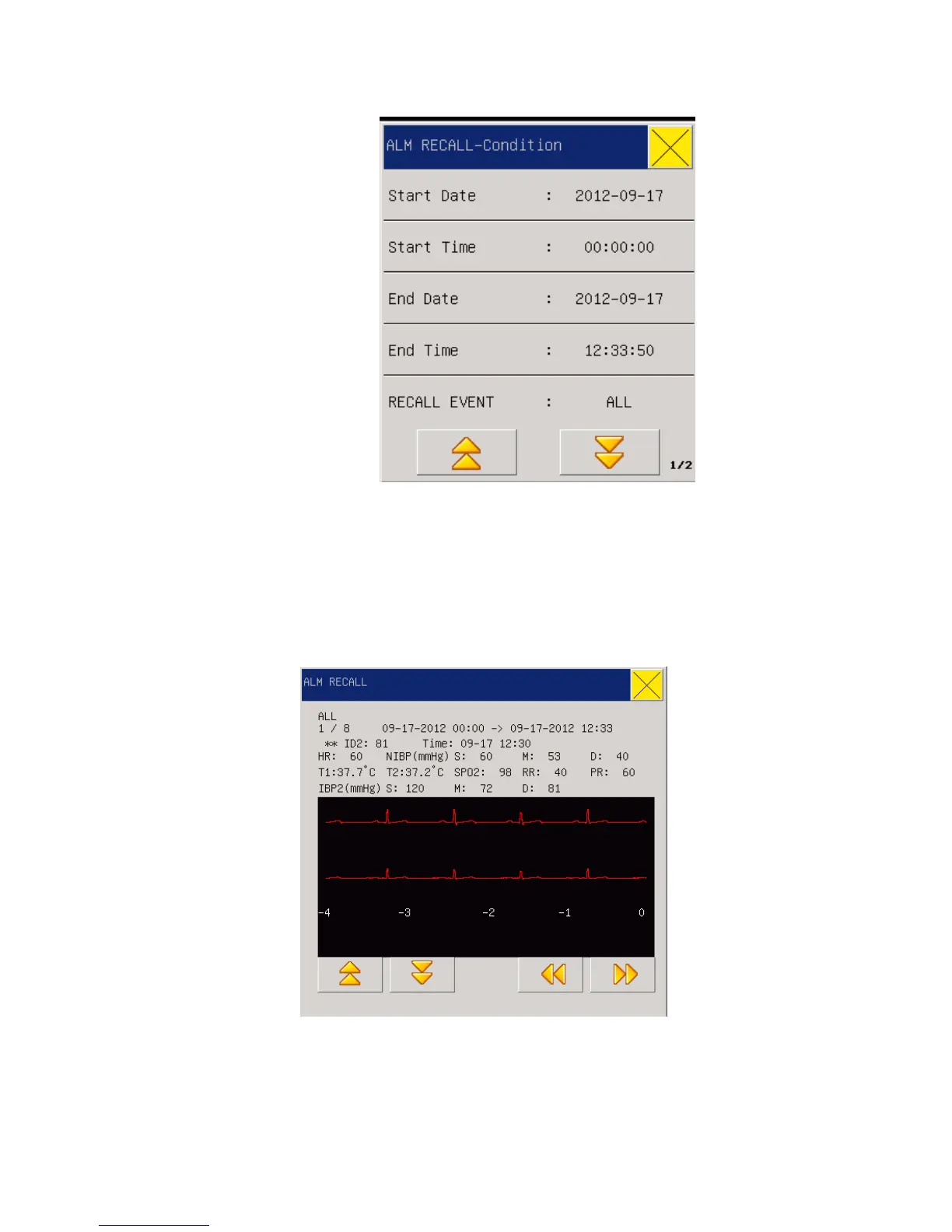

Fig 3-10 Alarm Recall condition
1. Setup up the “recall event” from start time/date to end time/date
2. Would be re-check the alarm status in “RECALL EVENT” menu , the events include
“ALL , ECG ,SPO2 , NIBP , IBP , CO2 , RESP , TEMP” status.
3. Optional “ALM-RECALL_Condition” window , would be recall the alarm parameter
and waveform ，following with figure below:
Fig 3-11 Recall event
