Installation – RF Path Elements P/N 709C011801 Page 109
10. RAU MAIN POWER (for RAU/RAU+RxU) DC input power connections (see Figure 5-68) – connect DC wire pair to the
terminal block connector:
• Power input range: 37 to 57 VDC
• Wire size: 12-30 AWG
• Max. consumption:
o RAU: 35 W
o RAU + RxU: 60 W
o RAU + GEM: 39 W
o RAU + RxU + GEM: 64 W

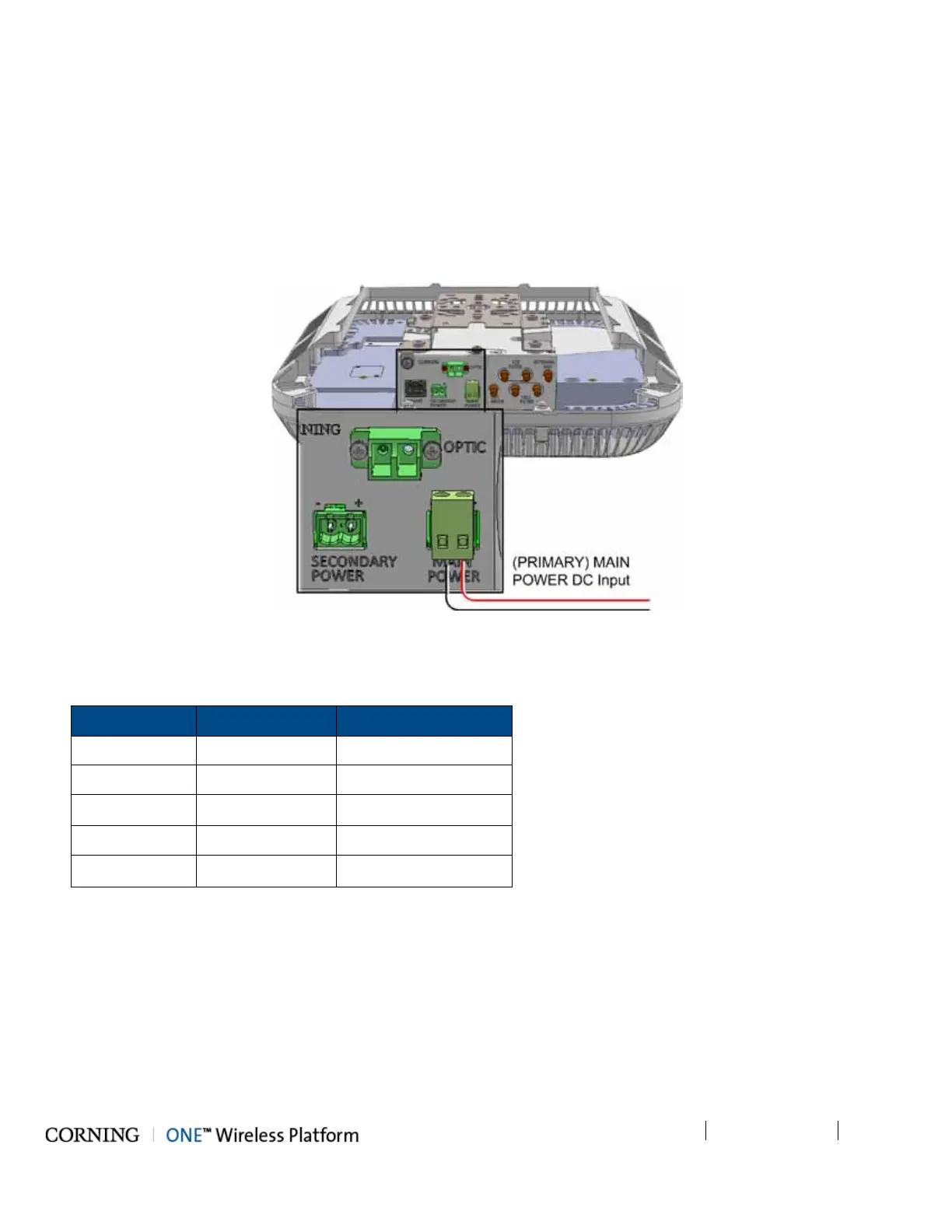

Figure 5-68. RAU MAIN POWER DC Input Connection
11.
For configurations with the GEM module only - power-up and verify normal operation as follows:
A. After the RAU MAIN POWER is connected to the 48V feed, wait 1-2 seconds and verify the status of the GEM LEDs:
(GEM) RUN OK/Fault/Run Flashing Amber 1/Sec)
Ethernet LINK Link Off
Ethernet ACT Activity Off
(SFP) LINK Link\Activity Off
PoE PoE Status Steady Amber
