DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Group Icon

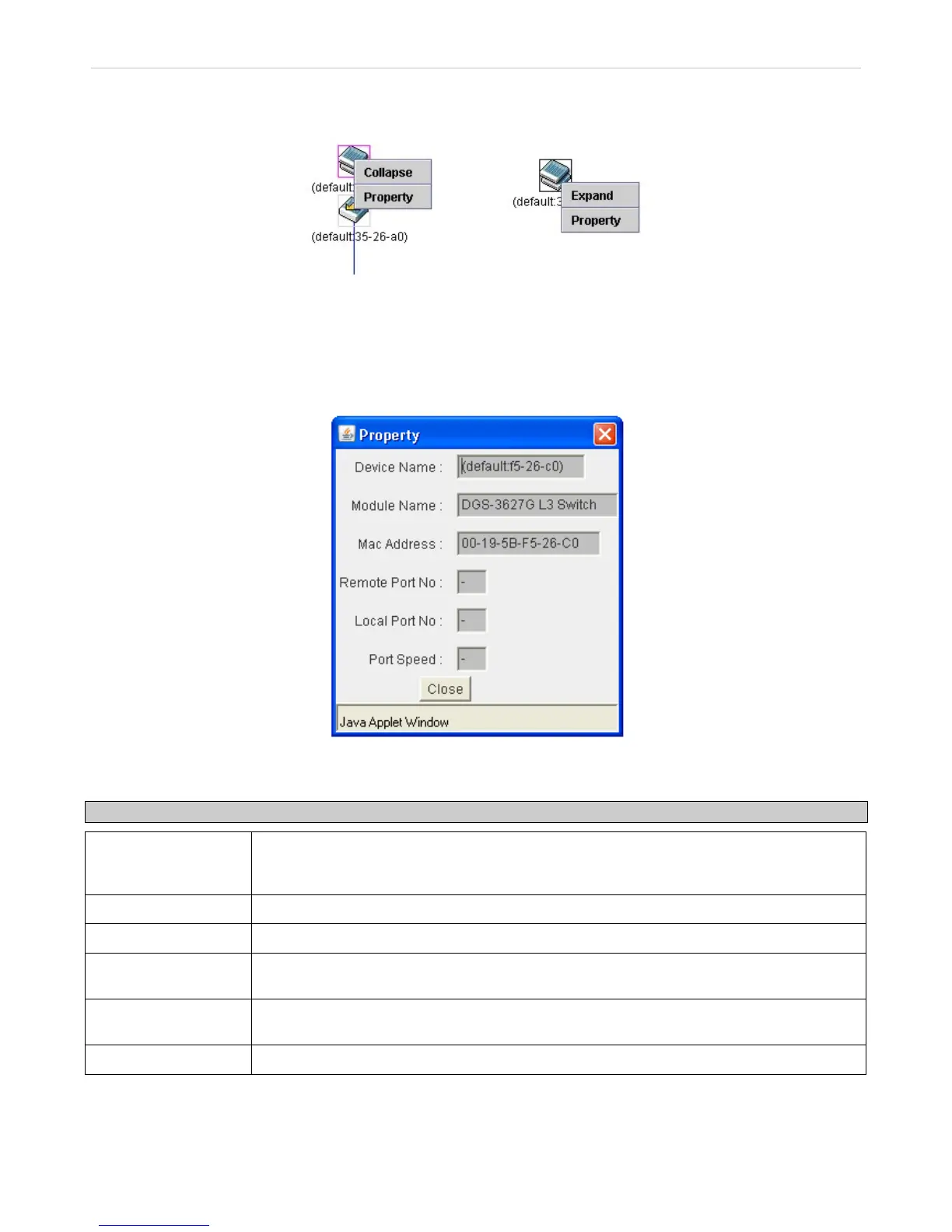

Figure 2- 95. Right-Clicking a Group Icon
The following options may appear for the user to configure:
Collapse - To collapse the group that will be represented by a single icon.
Expand - To expand the SIM group, in detail.
Property - To pop up a window to display the group information.
Figure 2- 96. Property window
This window holds the following information:
Parameter Description
Device Name This field will display the Device Name of the switches in the SIM group configured by the
user. If no Device Name is configured by the name, it will be given the name default and
tagged with the last six digits of the MAC Address to identify it.
Module Name
Displays the full module name of the switch that was right-clicked.
MAC Address
Displays the MAC Address of the corresponding Switch.
Remote Port No. Displays the number of the physical port on the MS or CaS that the CS is connected to. The
CS will have no entry in this field.
Local Port No. Displays the number of the physical port on the CS that the MS or CaS is connected to. The
CS will have no entry in this field.
Port Speed
Displays the connection speed between the CS and the MS or CaS
Click Close to close the Property window.
