DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Traffic Segmentation
Traffic segmentation is used to limit traffic flow from a single port to a group of ports on either a single switch or a group of ports
on another switch in a switch stack. This method of segmenting the flow of traffic is similar to using VLANs to limit traffic, but is
more restrictive. It provides a method of directing traffic that does not increase the overhead of the Master switch CPU.
To view the Traffic Segmentation window, click Security > Traffic Segmentation, as shown below:

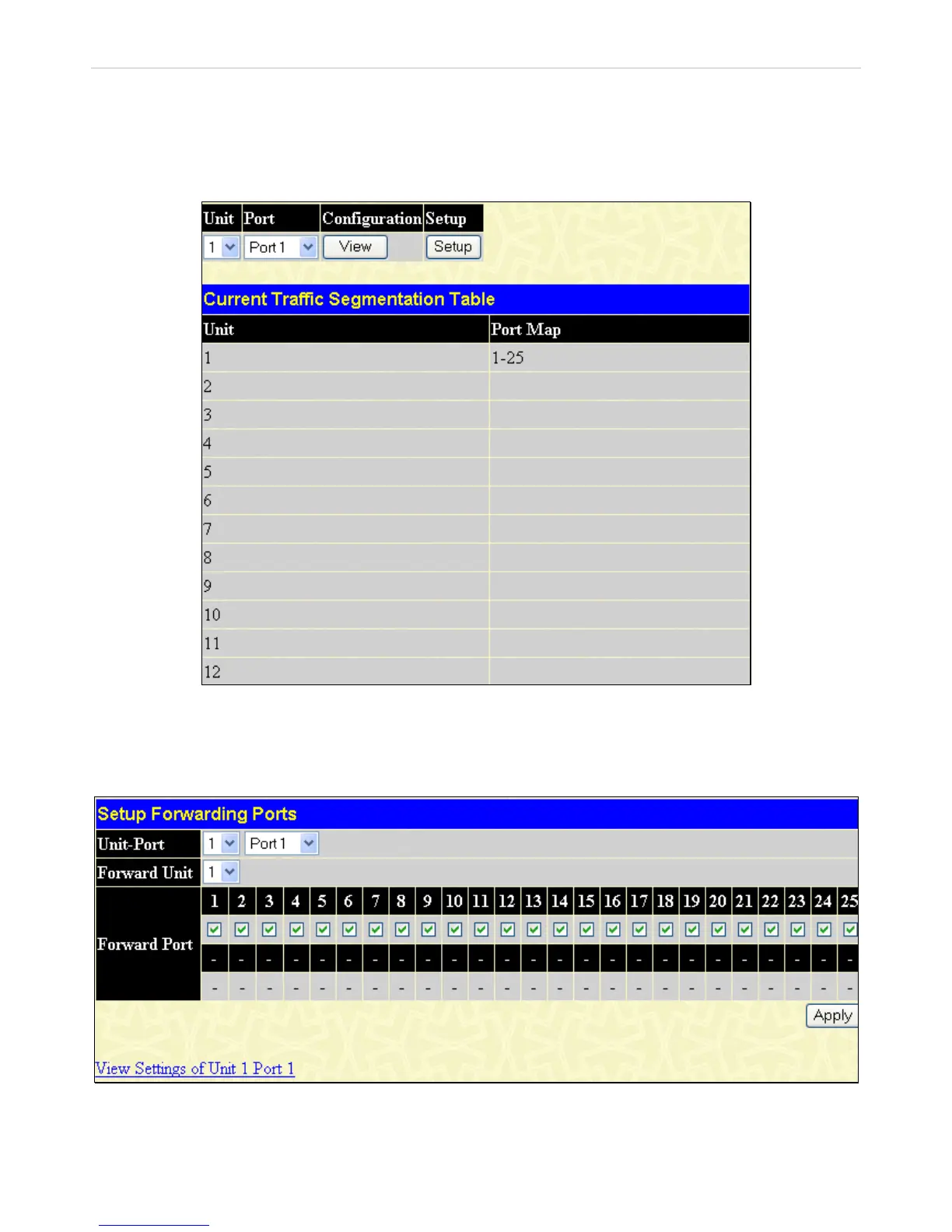

Figure 7- 64. Current Traffic Segmentation Table window
This window allows you to view which port on a given switch will be allowed to forward packets to other ports on that switch.
Select the unit you wish to configure and a port number from the drop down menu and click View to display the forwarding ports.
To configure new forwarding ports for a particular port, select a port from the drop down menu and click Setup. The window
shown below will appear.
Figure 7- 65. Setup Forwarding Ports window
The user may set the following parameters:
