xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
OSPF Interface Settings
This window is used to set up OSPF interfaces. If there are no IP interfaces configured (besides the default System interface), only
the System interface settings will appear listed. To change settings for an IP interface, click on the hyperlinked name of the
interface to see the configuration window for that interface.
To view this window, click L3 Features > OSPF > OSPF > OSPF Interface Settings, as shown below:

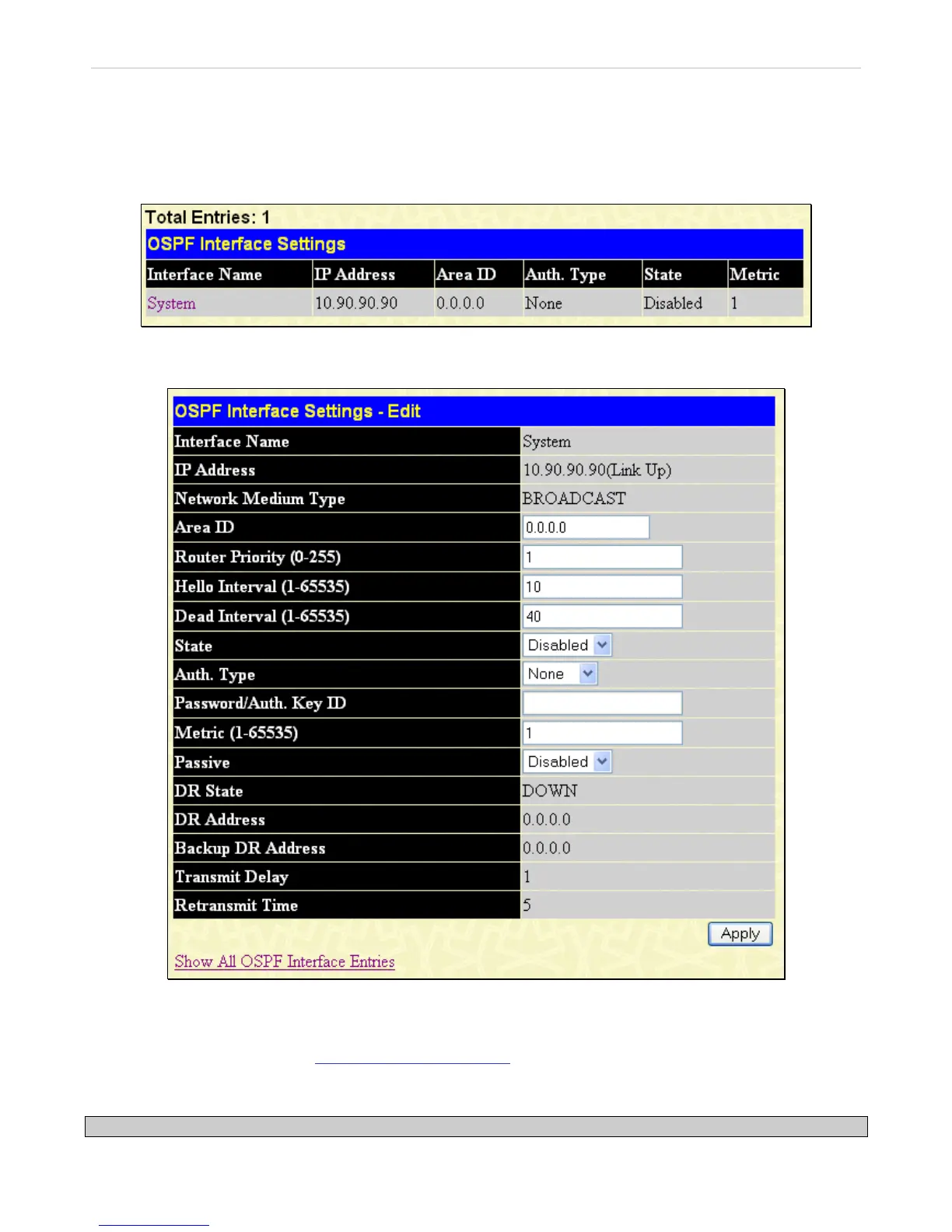

Figure 4- 55. OSPF Interface Settings window
Click the hyperlinked name of the interface to configure the settings for OSPF, which will give access to the following window:
Figure 4- 56. OSPF Interface Settings - Edit window
Configure each IP interface individually using the OSPF Interface Settings - Edit window. Click the Apply button when you
have entered the settings. The new configuration appears listed in the OSPF Interface Settings window. To return to the OSPF
Interface Settings window, click the Show All OSPF Interface Entries
link.
OSPF interface settings are described below. Some OSPF interface settings require previously configured OSPF settings. Read the
descriptions below for details.
Parameter Description
219
