xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Parameter Description
RP Address
Enter the IP address of the RP for which the data part will be included when calculating
checksum for registering packets to the RP.
Click Apply to add the RP into the checksum including the data list. To remove an entry from the table, click its corresponding
under the Delete heading.
BGP
The Switch supports Border Gateway Protocol (BGP), a layer 3 Unicast routing protocol that maintains a table of IP networks or
“prefixes” which designate network reachability among autonomous systems. BGP makes routing decisions based on path,
network policies, and/or rule sets.
BGP Global Settings
This window is used to configure BGP state, AS number, and global settings.
To view this window, click L3 Features > BGP > BGP Global Settings, as shown below:

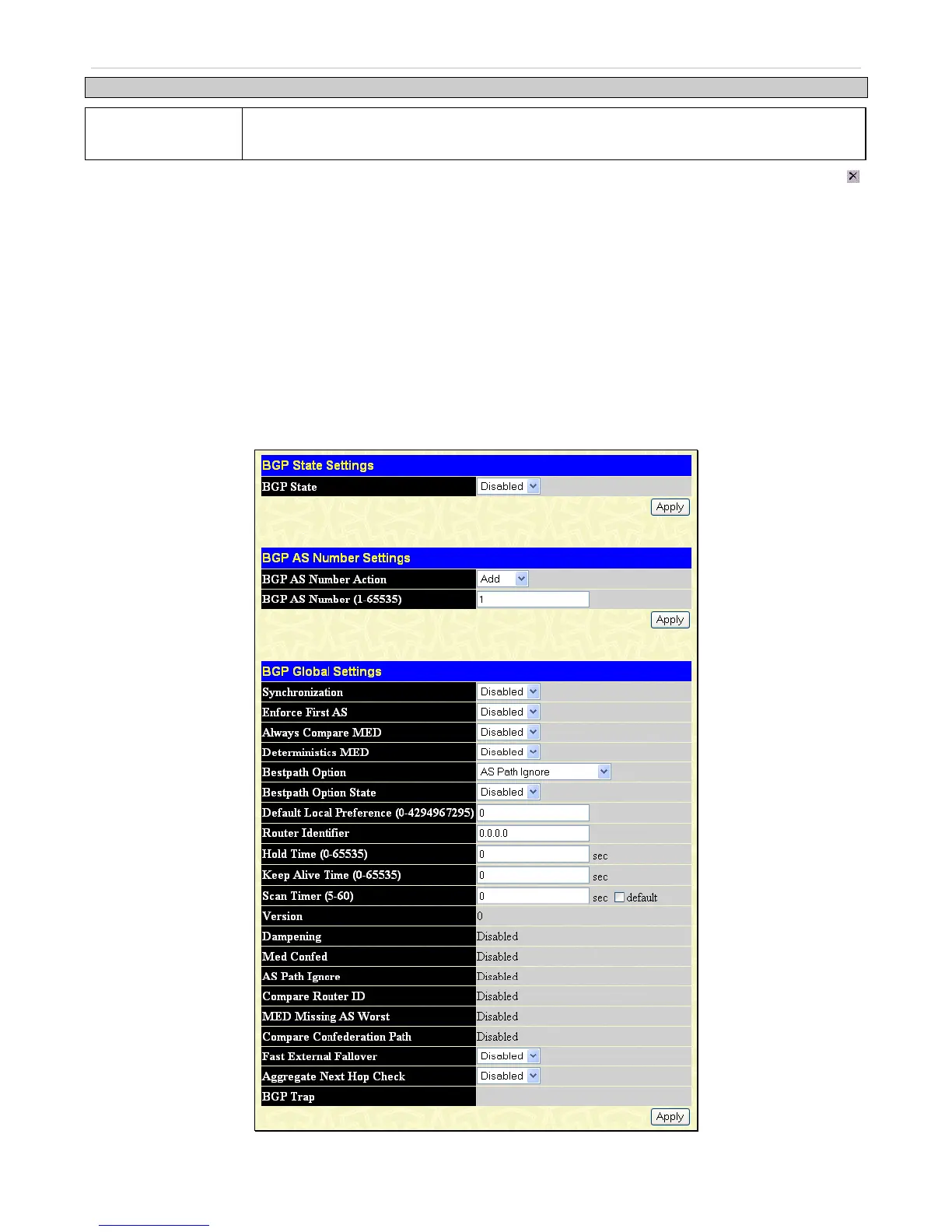

Figure 4- 133. BGP State Settings window
272
