xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Packet Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be viewed as either a line
graph or a table. Two windows are offered.
To view this table, click Monitoring > Packet Size, the following window will be displayed.

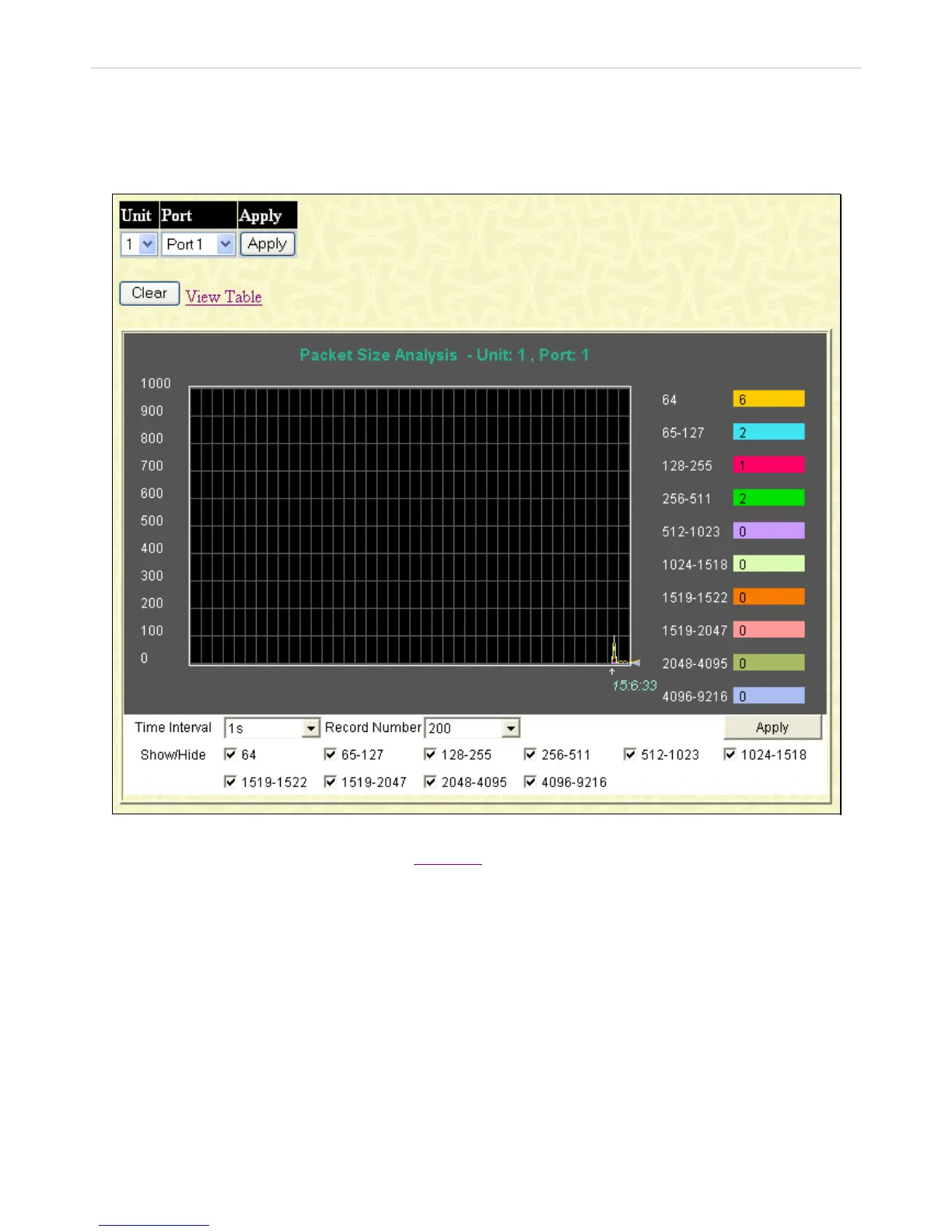

Figure 8- 18. RX Size Analysis window (line graph)
To view the Packet Size Analysis Table, click the link View Table
, which will show the following table:
430
