xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

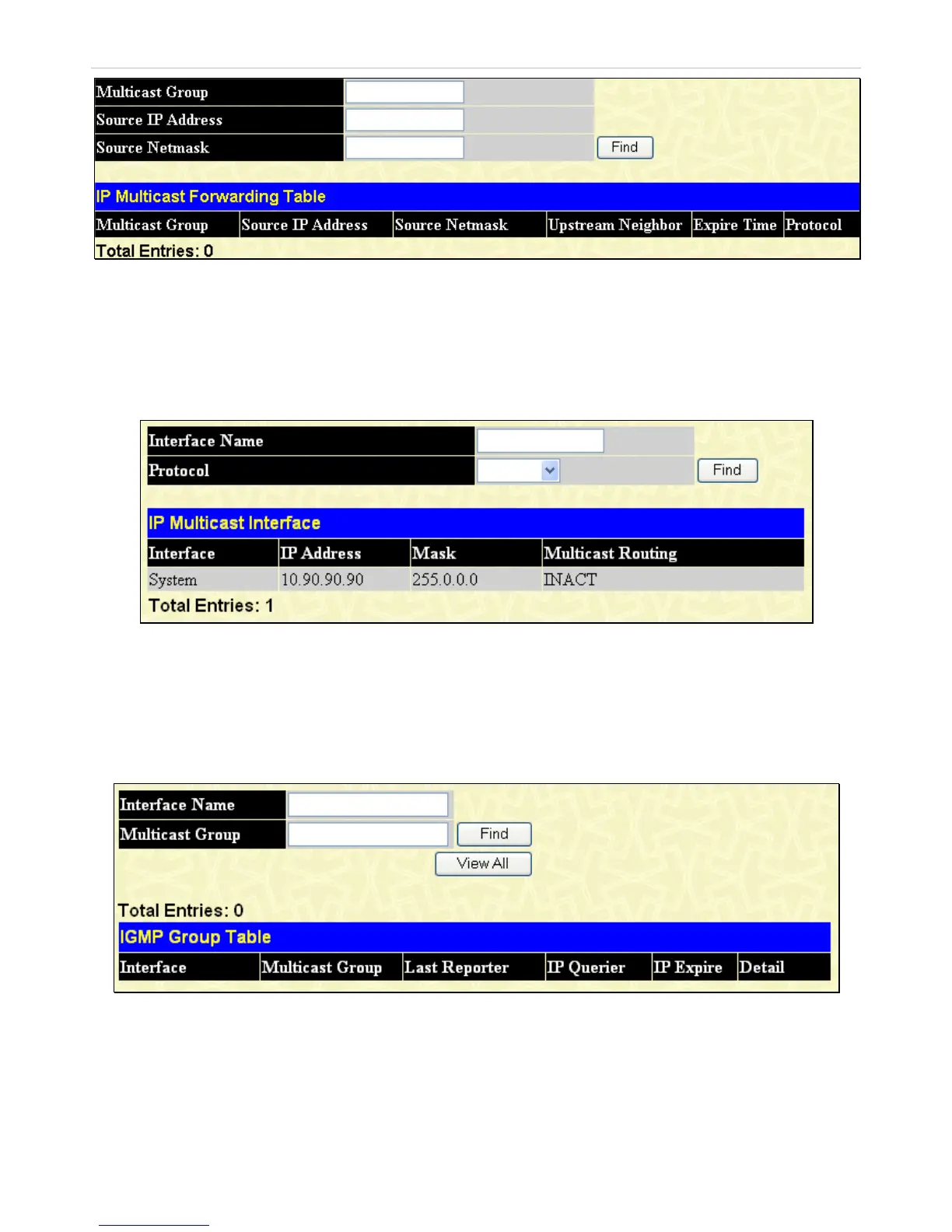

Figure 8- 43. IP Multicast Forwarding Table window
Browse IP Multicast Interface Table
This window will show current IP multicasting interfaces located on the Switch. To search a specific entry, enter a multicast
interface name into the Interface Name field or choose a Protocol from the pull down list and click Find.
To view this window, click Monitoring > Browse IP Multicast Interface Table, as shown below:
Figure 8- 44. IP Multicast Interface window
Browse IGMP Group Table
This window will show current IGMP group entries on the Switch. To search a specific IGMP group entry, enter an interface
name into the Interface Name field or a Multicast Group IP address and click Find.
To view this window, click Monitoring > Browse IGMP Group Table, as shown below:
Figure 8- 45. IGMP Group Table window
DVMRP Monitor
This folder allows the DVMRP (Distance-Vector Multicast Routing Protocol) to be monitored for each IP interface defined on the
Switch. The DVMRP monitor section offers three windows for monitoring: Browse DVMRP Routing Table, Browse DVMRP
Neighbor Table, and Browse DVMRP Routing Next Hop Table.
454
