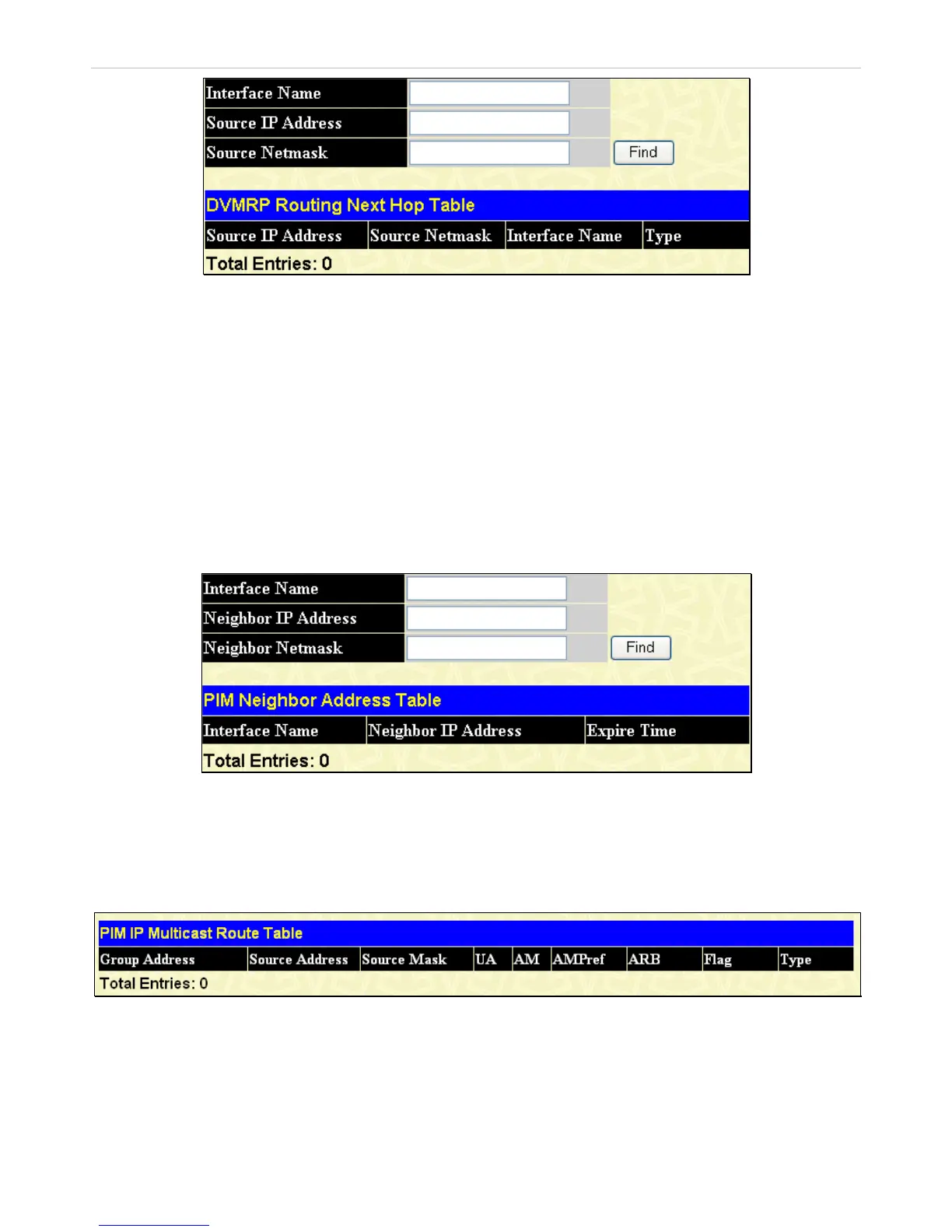

Figure 8- 48. DVMRP Routing Next Hop Table window
PIM Monitor
Multicast routers use Protocol Independent Multicast (PIM) to determine which other multicast routers should receive multicast
packets. To find out more information concerning PIM and its configuration on the Switch, see the IP Multicast Routing Protocol
chapter of Section 6, Configuration.
Browse PIM Neighbor Table
The PIM Neighbor Address Table contains information regarding each of a router’s PIM neighbors. To search this table, enter an
Interface Name, Neighbor Address or Neighbor Netmask into the respective field and click the Find button. PIM neighbors of that
entry will appear in the PIM Neighbor Address Table below.
To view this window, click Monitoring > PIM Monitor > Browse PIM Neighbor Table, as shown below:
Figure 8- 49. PIM Neighbor Address Table window
Browse PIM IP Multicast Route Table
The PIM IP Multicast Route Table is used to view information regarding the multicast data route entries in the Switch.
To view this window, click Monitoring > PIM Monitor > Browse PIM IP Mutlicast Route Table, as shown below:
Figure 8- 50. PIM IP Multicast Route Table window
Browse PIM RP-Set Table
The following window is used to assess information regarding the Rendezvous Point (RP) Set on the Switch.
To view this window, click Monitoring > PIM Monitor > Browse PIM RP-Set Table, as shown below:
