xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Delete Ports – Will allow users to remove ports from the Service Provider VLAN configured,
using the Port List field below.
Config TPID – Will allow users to configure the Tagged Protocol ID of the Service Provider
VLAN, in hex form.
Port Type
Allows the user to choose the type of port being utilized by the Service Provider VLAN. The user
may choose:
Access - Access ports are for connecting Switch VLANs to customer VLANs. Gigabit ports
cannot be configured as access ports.
Uplink - Uplink ports are for connecting Switch VLANs to the Provider VLANs on a remote
source. Only gigabit ports can be configured as uplink ports.
Port List
Use the From and To fields to set a list of ports to be placed in, or removed from, the Service
Provider VLAN. The beginning and end of the port list range are separated by a dash.
PVID Auto Assign
This enables the PVID Auto Assign features on the switch.

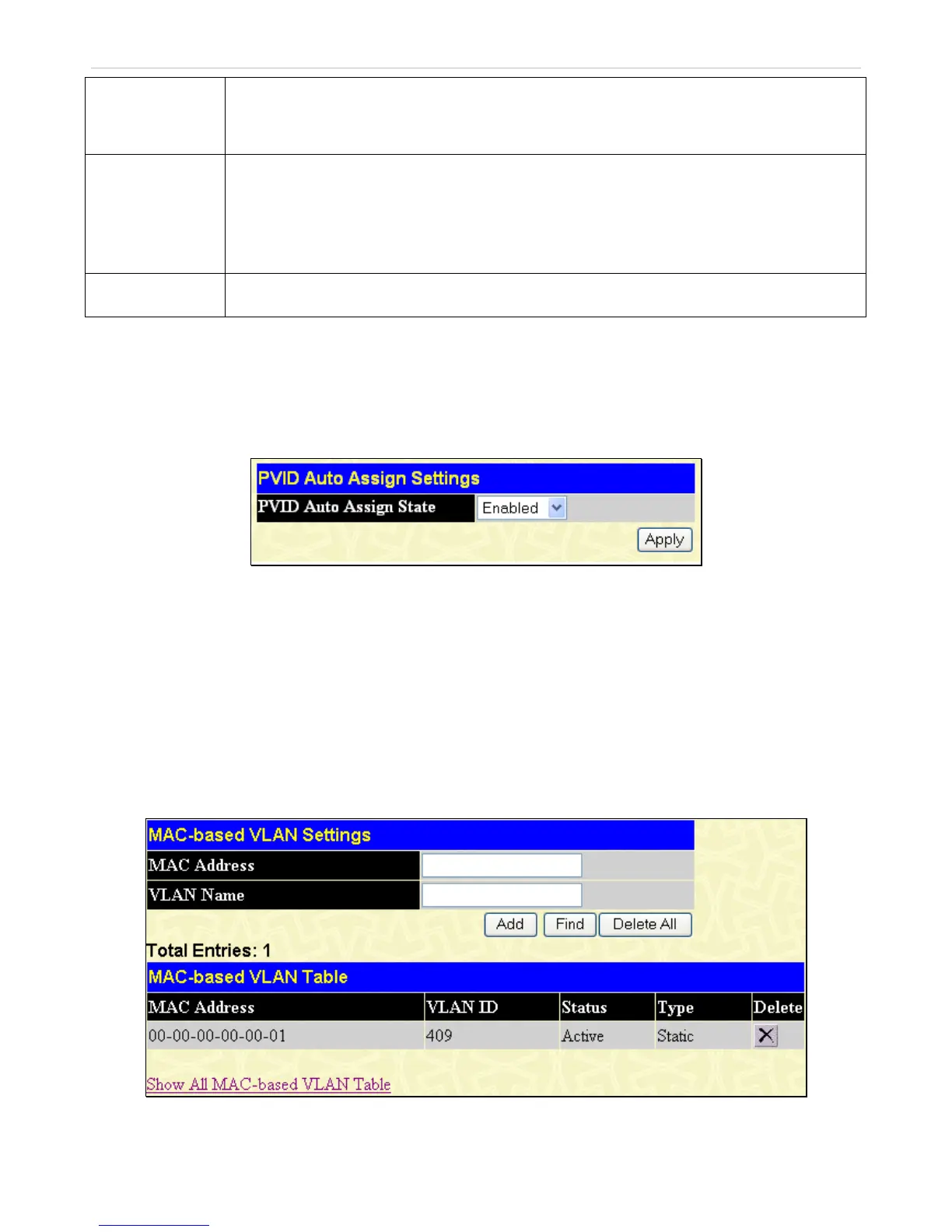

To view this table, click L2 Features > VLAN > PVID Auto Assign, as shown below:
Figure 3- 15. PVID Auto Assign Settings window
When Enabled, PVID will be automatically assigned when adding a port to a VLAN as an untagged member port.
MAC-based VLAN Settings
This table is used to create MAC-based VLAN entries on the switch. A MAC Address can be mapped to any existing static
VLAN and multiple MAC addresses can be mapped to the same VLAN. When a static MAC-based VLAN entry is created for a
user, the traffic from this user is able to be serviced under the specified VLAN regardless of the authentiucation function operated
on the port.
To view this window, click L2 Features > VLAN > MAC-based VLAN Settings, as shown below:
Figure 3- 16. MAC-based VLAN Settings window
103
