xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
MAC Address Table
This allows the Switch's dynamic MAC address forwarding table to be viewed. When the Switch learns an association between a
MAC address and a port number, it makes an entry into its forwarding table. These entries are then used to forward packets
through the Switch.
To view the MAC Address forwarding table, click Monitoring > MAC Address Table, as shown below:

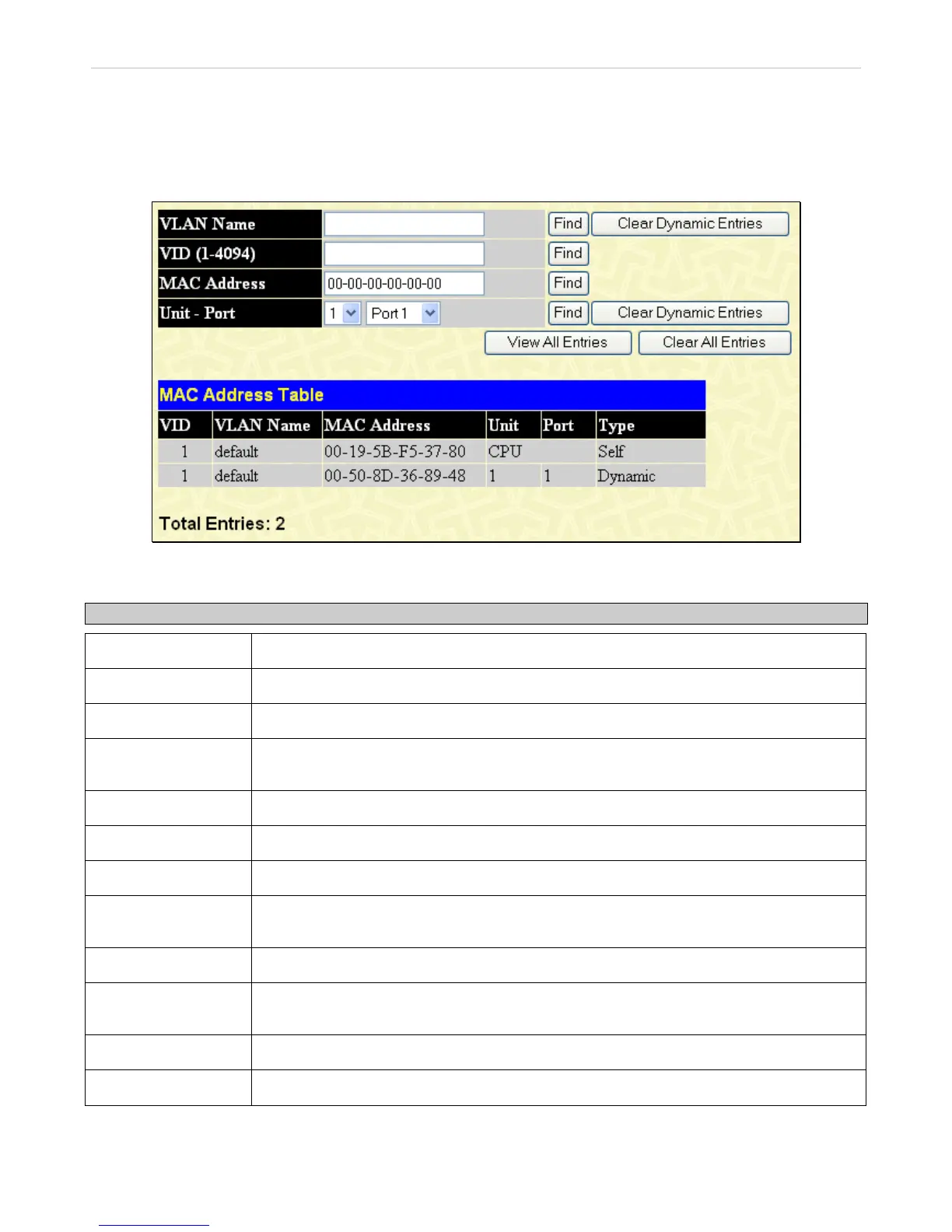

Figure 8- 33. MAC Address Table window
The following fields can be viewed or set:
Parameter Description
VLAN Name
Enter a VLAN Name for which to browse the forwarding table.
VID (1-4094)
Enter a VLAN ID between 1 and 4094 for which to browse the forwarding table.
MAC Address
Enter a MAC address for which to browse the forwarding table.
Find
Allows the user to move to a sector of the database corresponding to a user defined port,
VLAN, or MAC address.
VID
The VLAN ID of the VLAN the port is a member of.
MAC Address
The MAC address entered into the address table.
Unit – Port
The Unit and port that the MAC address above corresponds to.
Type
How the Switch discovered the MAC address. The possible entries are Dynamic, Self, and
Static.
Next
Click this button to view the next page of the address table.
Clear Dynamic Entry
Clicking this button will clear Dynamic entries learned by the Switch. This may be
accomplished by VLAN Name or by Port.
View All Entry
Clicking this button will allow the user to view all entries of the address table.
Clear All Entry
Clicking this button will allow the user to delete all entries of the address table.
