xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Compound Authentication Settings
This window is used to configure the authorization mode and authentication method of individual ports.
To view this window, click Security > Compound Authentication > Compound Authentication Settings, as shown below:

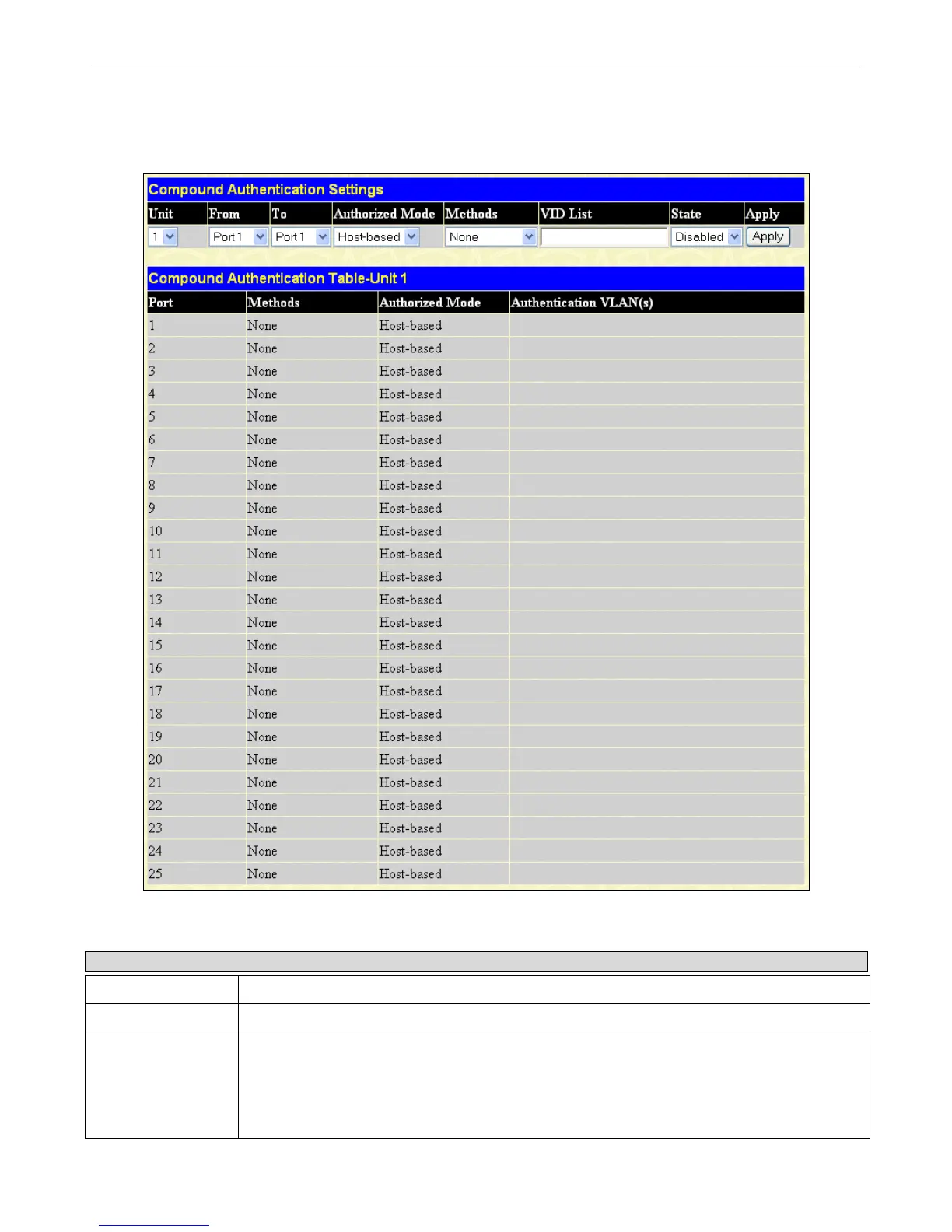

Figure 7- 75. Compound Authentication Settings window
The following parameters may be set:
Parameter Description
Unit
Choose the Unit ID of the switch in the switch stack to configure.
From/To
Select a port or range of ports to be configured.
Authorized Mode
Use the drop-down menu to select either Port-based or Host-based authorized mode.
Port-based – If one of the attached hosts passes the authentication process, all hosts on the
same port will be granted access to the network. If the user fails the authorization, this port will
keep trying until the next authentication.
Host-based – Each user can be authenticated individually.
406
