xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

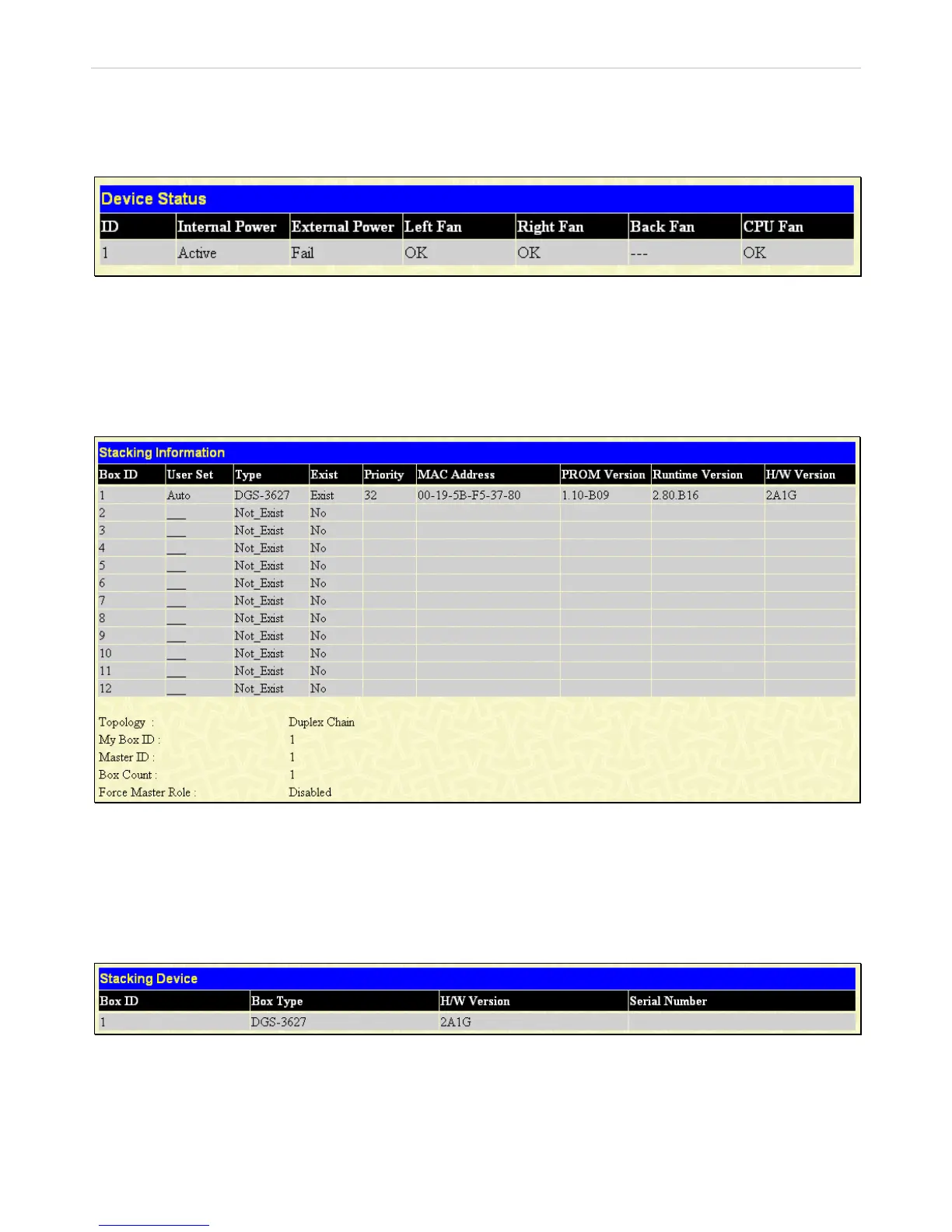

Device Status
This window displays status information for Internal Power, External Power, Side Fan, and Back Fan.
To view the Device Status window, click Monitoring > Device Status, as shown below:
Figure 8- 1. Device Status window
Stacking Information
This window displays all the Switches that are currently in the stack as well as configuration information about each Switch.
To view the Stacking Information window, click Monitoring > Stacking Information, as shown below:
Figure 8- 2. Stacking Information window
Stacking Device
This window displays all the Switches that are currently in the stack as well as configuration information about each Switch.
To view the Stacking Information window, click Monitoring > Stacking Device, as shown below:
Figure 8- 3. Stacking Device window
416
