Transit Area ID
Allows the entry of an OSPF Area ID − previously defined on the Switch − that allows a
remote area to communicate with the backbone (area 0). A Transit Area cannot be a Stub
Area or a Backbone Area.
Virtual Neighbor
Router ID
The OSPF router ID for the remote router. This IP address uniquely identifies the remote
area’s Area Border Router.
OSPFv3
This section offers windows regarding OSPF (Open Shortest Path First) Version 3 information on the Switch, including the
OSPFv3 LSDB Table, OSPFv3 LSDB AS External LSA Table, OSPFV3 LSDB Link LSA Interface Table, OSPFv3 Neighbor
Table, and the OSPFv3 Virtual Neighbor Table.
Browse OSPFv3 LSDB Table
The OSPFv3 LSDB Table displays the current link-state database in use by the OSPFv3 routing protocol on a per-OSPF area
basis.
To view this table, click Monitoring > OSPF Monitor > OSPFv3 > Browse OSPFv3 LSDB Table, as shown below:

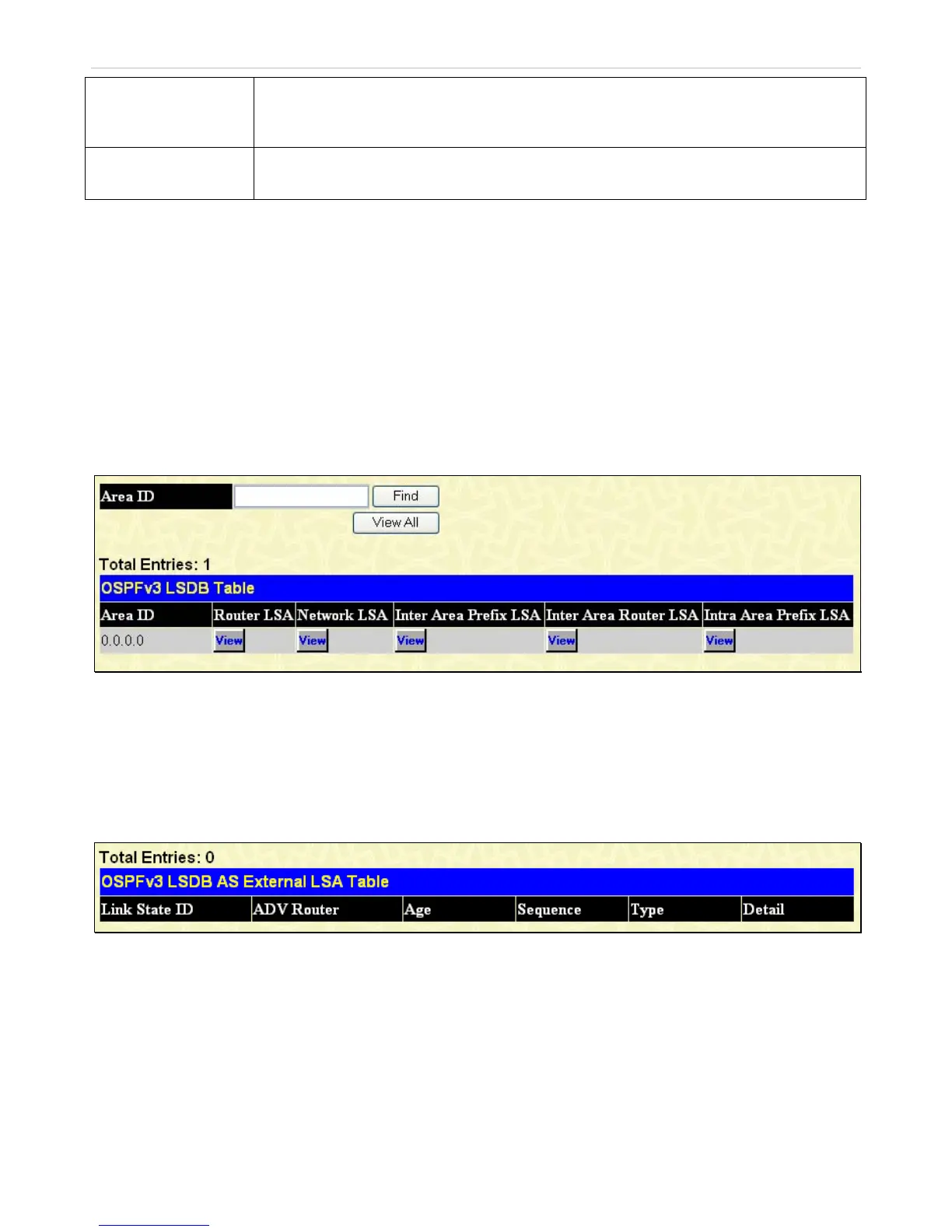

Figure 8- 55. OSPFv3 LSDB Table window
Browse OSPFv3 LSDB AS External LSA Table
This table displays a list of OSPFv3 LSDB AS External LSA Table entries of the Switch.
To view this table, click Monitoring > OSPF Monitor > OSPFv3 > Browse OSPFv3 LSDB AS External Table, as shown
below:
Figure 8- 56. OSPFv3 LSDB AS External LSA Table window
Browse OSPFv3 LSDB Link LSA Interface Table
This table displays a list of OSPFv3 LSDB Link LSA Interfaces of the Switch.
To view this table, click Monitoring > OSPF Monitor > OSPFv3 > Browse OSPFv3 LSDB Link LSA Interface Table, as
shown below:
