xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

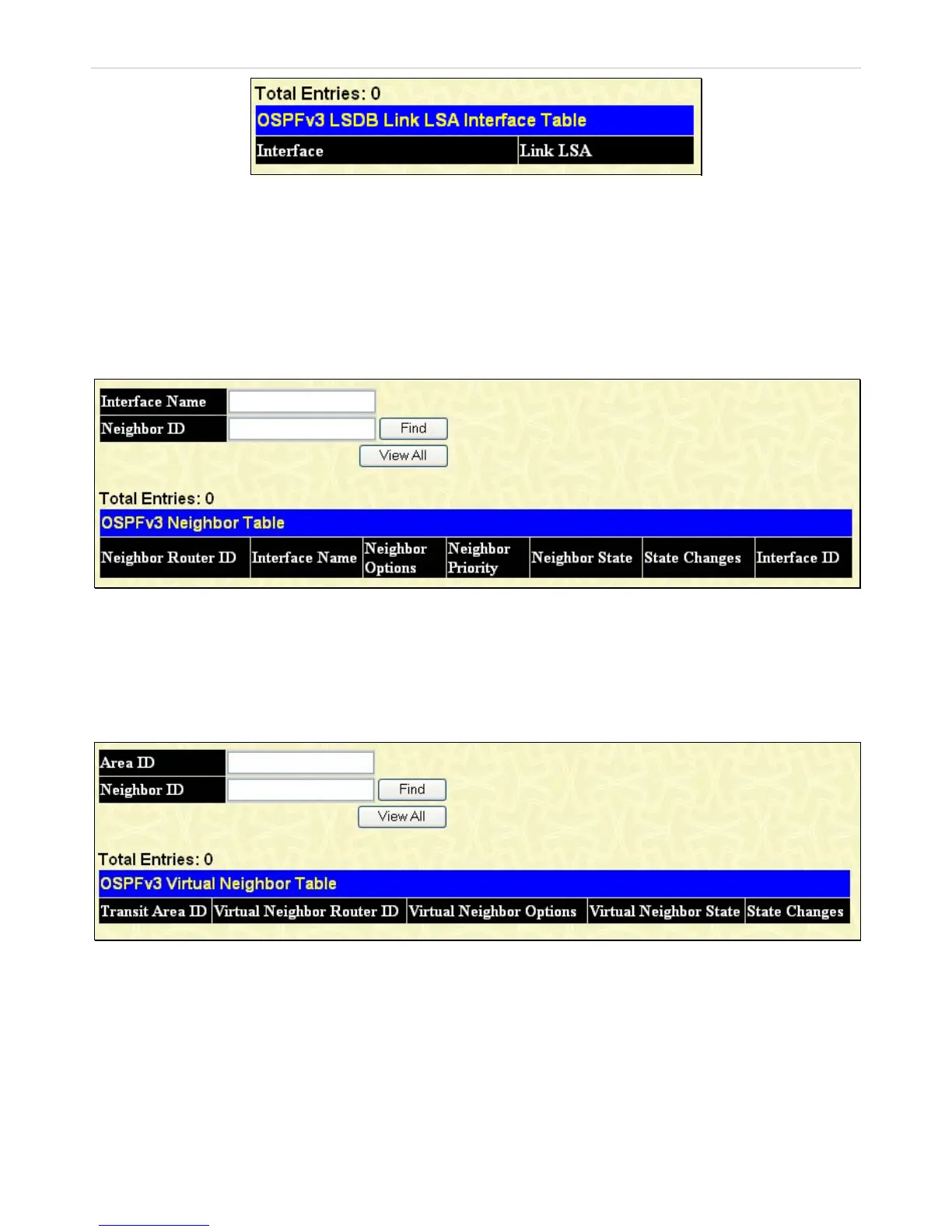

Figure 8- 57. OSPFv3 LSDB Link LSA Interface Table window
Browse OSPFv3 Neighbor Table
Routers that are connected to the same area or segment become neighbors in that area. Neighbors are elected via the Hello
protocol. IP multicast is used to send out Hello packets to other routers on the segment. Routers become neighbors when they see
themselves listed in a Hello packet sent by another router on the same segment. In this way, two-way communication is
guaranteed to be possible between any two-neighbor routers. This table displays OSPFv3 neighbors of the Switch.
To view this table, click Monitoring > OSPF Monitor > OSPFv3 > Browse OSPFv3 Neighbor Table, as shown below:
Figure 8- 58. OSPFv3 Neighbor Table window
Browse OSPFv3 Virtual Neighbor Table
This table displays a list of OSPFv3 Virtual Neighbors of the Switch.
To view this table, click Monitoring > OSPF Monitor > OSPFv3 > Browse OSPFv3 Virtual Neighbor Table, as shown below:
Figure 8- 59. OSPFv3 Virtual Neighbor Table window
460
