xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Parameter Description
IP Address
Enter the IP address of the device to be added as a Candidate RP.
Subnet Mask
Enter the corresponding subnet mask of the device to be added as a Candidate RP.
Interface
Enter the IP interface where this device is located.
Click Apply to add the device as a Candidate RP.

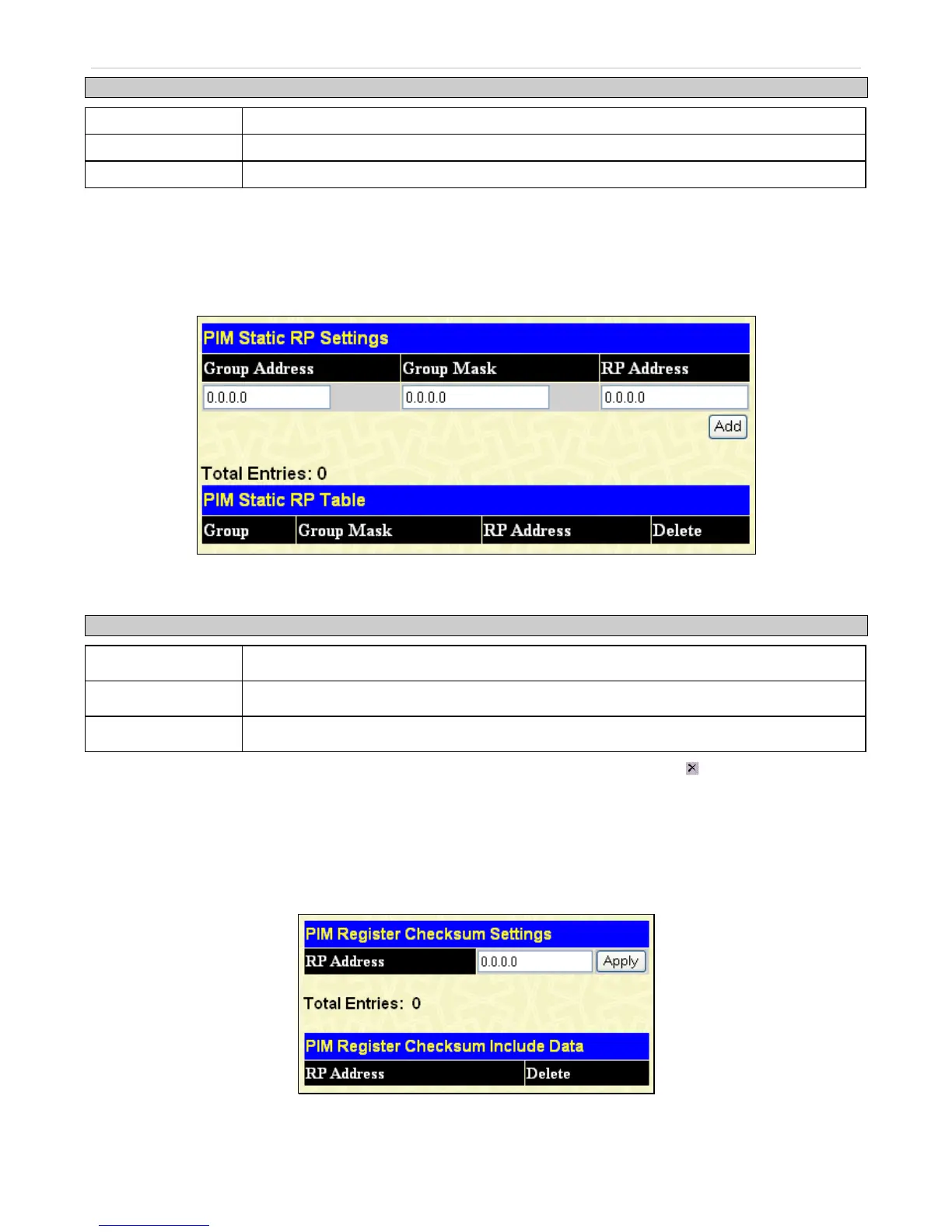

PIM Static RP Settings
The following window will display the parameters for the switch to become a static RP.
To view this window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM Static RP Settings, as shown below:
Figure 4- 131. PIM Static RP Settings window
The following fields can be viewed or set:
Parameter Description
Group Address
Enter the multicast group address for this Static RP. This address must be a class D address.
Group Mask
Enter the mask for the multicast group address stated above.
RP Address
Enter the IP address of the rendezvous Point.
Click Apply to implement changes made. To remove an entry from the table, click its corresponding under the Delete heading.
PIM Register Checksum Settings
This window is used to configure RP addresses. The data part is included when calculating the checksum for a PIM register
message to the RP on the first hop router.
To view this window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM Register Checksum Settings, as
shown below:
Figure 4- 132. PIM Register Checksum Settings window
The following fields can be set:
271
