xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

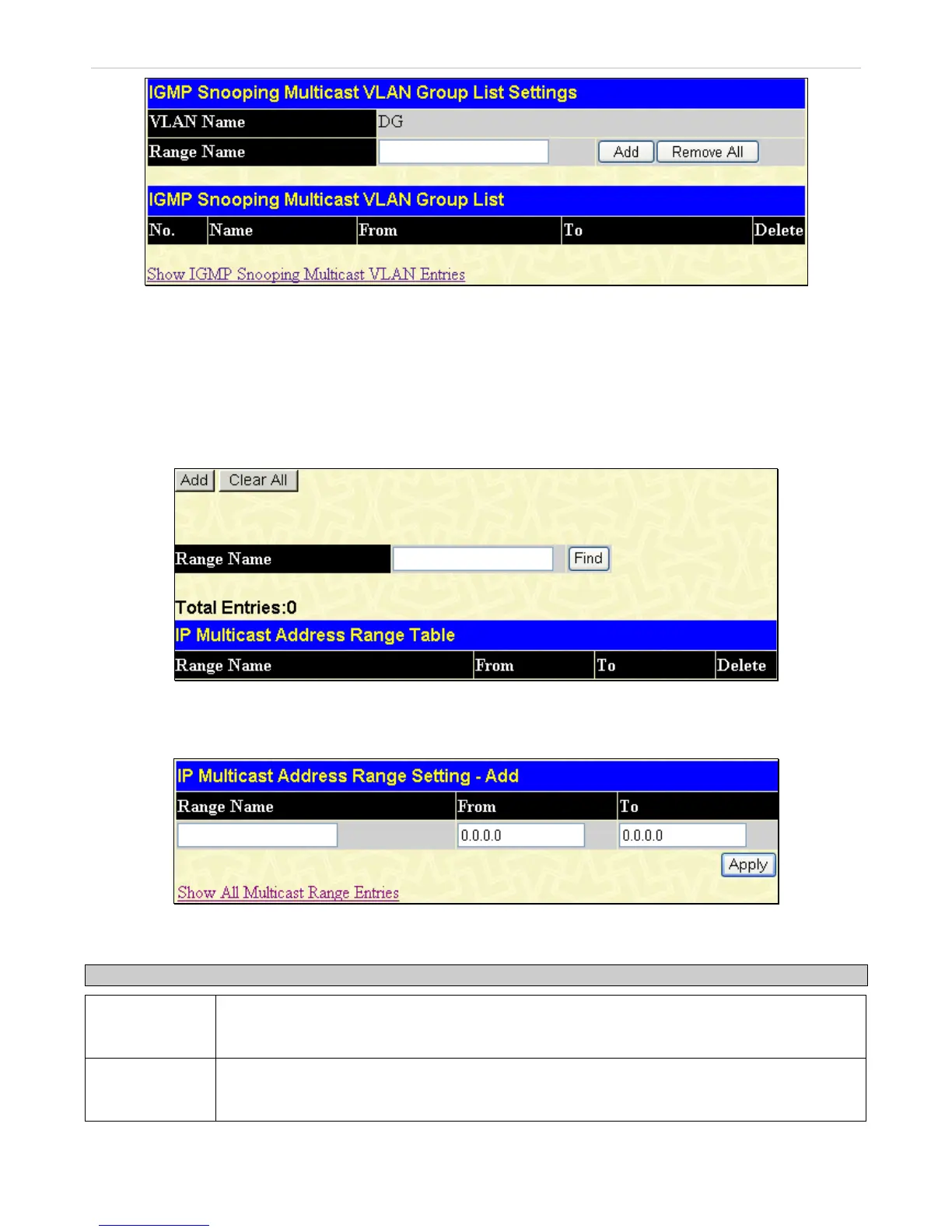

Figure 3- 40. IGMP Snooping Multicast VLAN Group List Settings
Enter an existing Range Name and click Add. To remove all entries click the Remove All button.
IP Multicast Address Range Settings
Users can configure the range of multicast addresses that will be accepted by the source port to be forwarded to the receiver ports.
The following window will be displayed for the user.
To view this window, click L2 Features > IGMP Snooping > IP Multicast Address Range Settings, as shown below:
Figure 3- 41. IP Multicast Address Range Table window
To display a previously created IP Multicast Address enter the Range Name and click Find, the information will be displayed on
the IP Multicast Address Range Table. To create a new range, click the Add button which will display the following window.
Figure 3- 42. IP Multicast Address Range Setting – Add window
The following parameters can be set:
Parameter Description
Range Name Enter an alphanumeric name of no more than 32 characters to define the Multicast Address
range. This name will be used to define the multicast address range when it is added to a
multicast port.
From/To Enter the range of multicast addresses that will be accepted by the multicast port using this range
name. A range of multicast addresses may be separated by a dash (Ex. 224.0.0.0-
239.255.255.255).
Click Apply to set this Range Name with these multicast addresses.
124
