xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
SNMP Group Table
An SNMP Group created with this table maps SNMP users (identified in the SNMP User Table) to the views created in the
previous menu.
To view the SNMP Group Table window, click Administration > SNMP Manager > SNMP Group Table, as shown below:

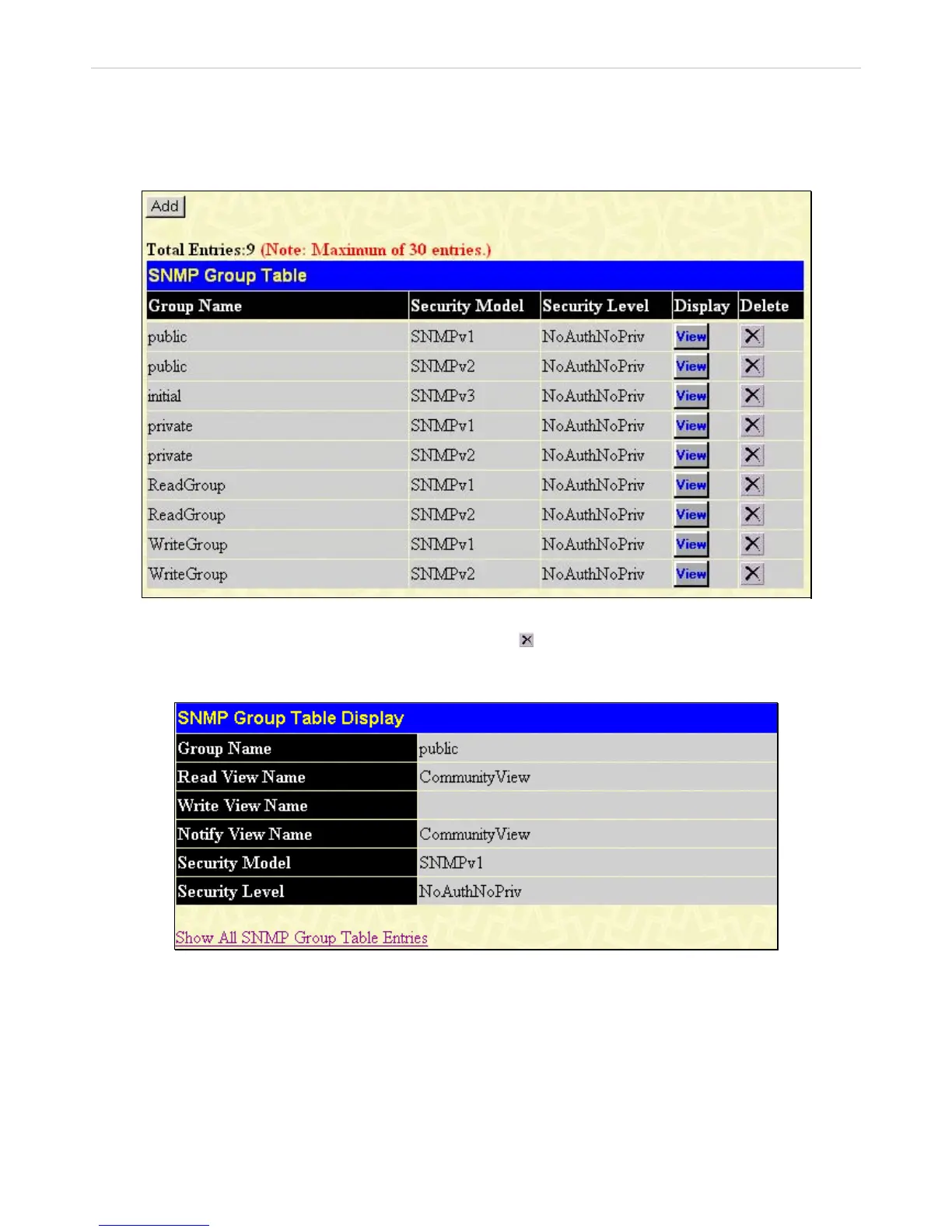

Figure 2- 72. SNMP Group Table window
To delete an existing SNMP Group Table entry, click the corresponding
under the Delete heading.
To display the current settings for an existing SNMP Group Table entry, click the View button located under the Display
heading, which will show the following window.
Figure 2- 73. SNMP Group Table Display window
To add a new entry to the Switch's SNMP Group Table, click the Add button in the upper left-hand corner of the SNMP Group
Table window. This will open the SNMP Group Table Configuration window, as shown below:
67
