xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
VLAN Status
This allows the VLAN status for each of the Switch's ports to be viewed by VLAN. This window displays the ports on the Switch
that are currently Egress (E) or Tag (T) ports. To view the next VLAN in the list, click the Next button.
To view this window, click Monitoring > VLAN Status, as shown below:

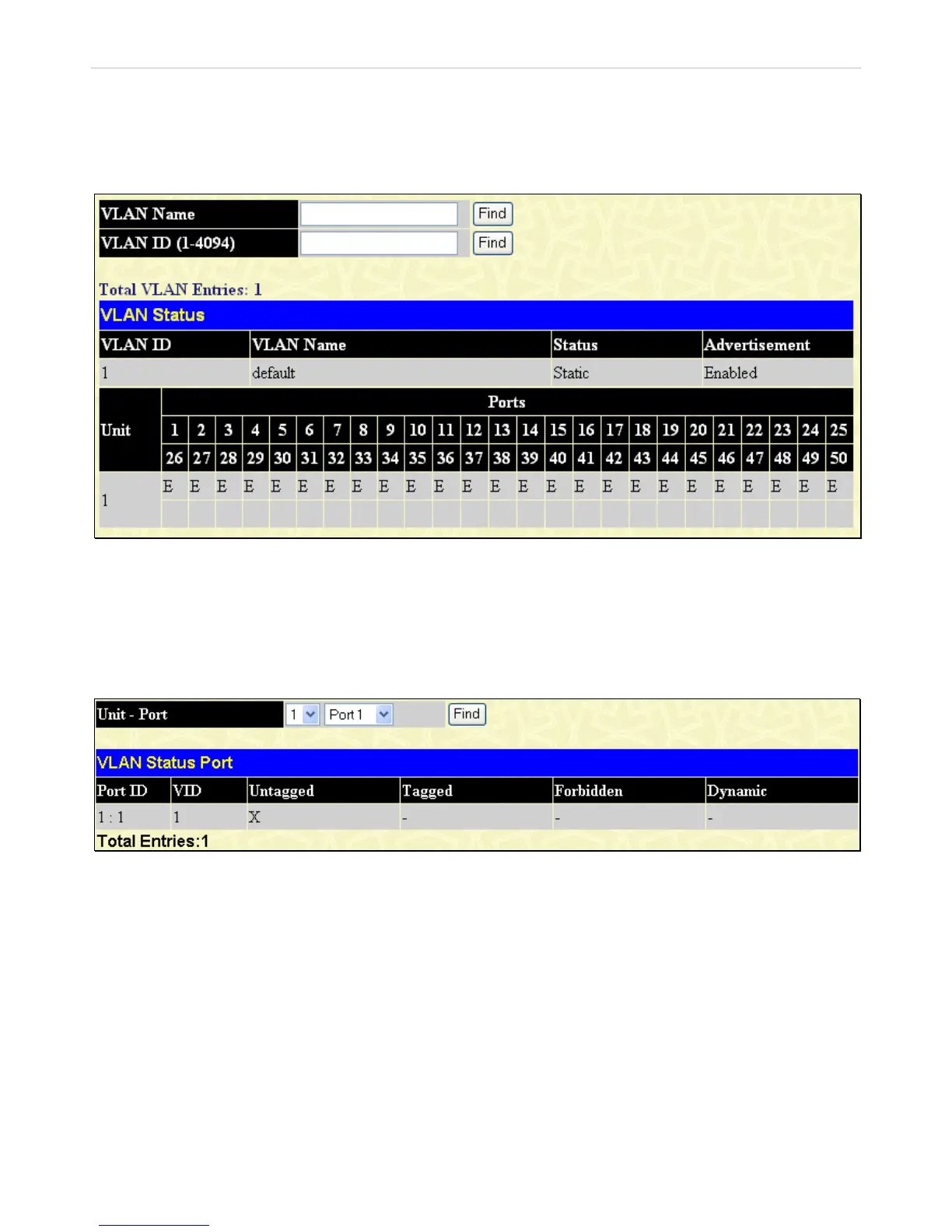

Figure 8- 22. VLAN Status window
VLAN Status Port
This read-only window displays the current VLAN status for the port selected using the drop-down menu.
To view this window, click Monitoring > VLAN Status Port, as shown below:
Figure 8- 23. VLAN Status Port window
434
