DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
VLAN Translation Settings
The VLAN translation settings translates the VLAN ID carried in the data packets it receives from private networks into those
used in the Service Providers network.
To view this window, click L2 Features > Q-in-Q > VLAN Translation Settings, as shown below:

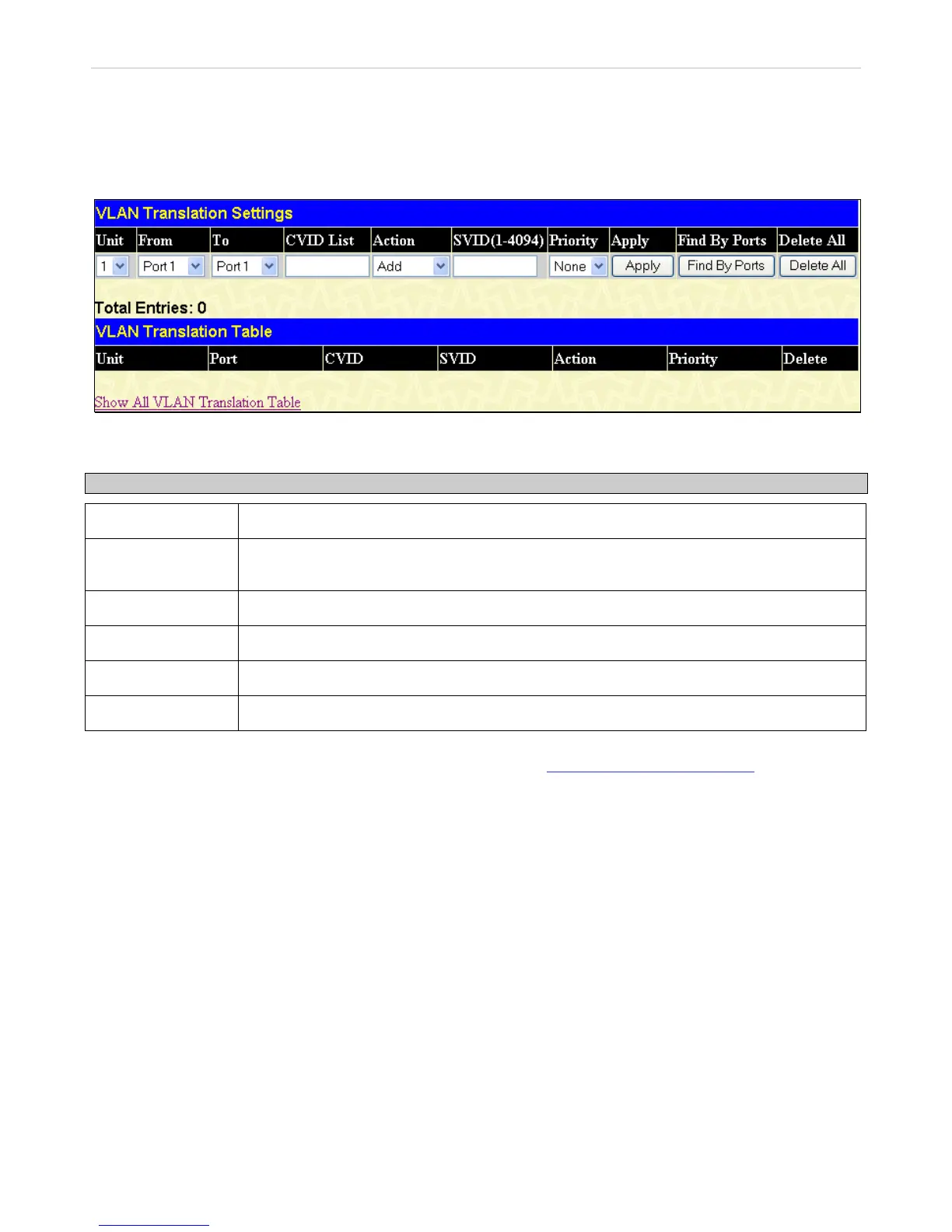

Figure 3- 75. VLAN Translation Settings window
The following fields can be set:
Parameter Description
Unit
Select the unit to configure.
From/To
A consecutive group of ports that are part of the VLAN configuration starting with the selected
port.
CVID List
The customer VLAN ID List to which the tagged packets will be added.
Action
Specify if for SPVID packets to be added or replaced.
SPVID(1-4094)
This configures the VLAN to join the Service Providers VLAN as a tagged member.
Priority
Select a priority for the VLAN ranging from 0-7. With 7 having the highest priority.
Click Apply to create a new entry, click Find By Ports to view the current entries by ports and Delete All to remove a VLAN
Translation entry. To view the VLAN translation table, click the hyperlinked Show All VLAN Translation Table
.
