xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

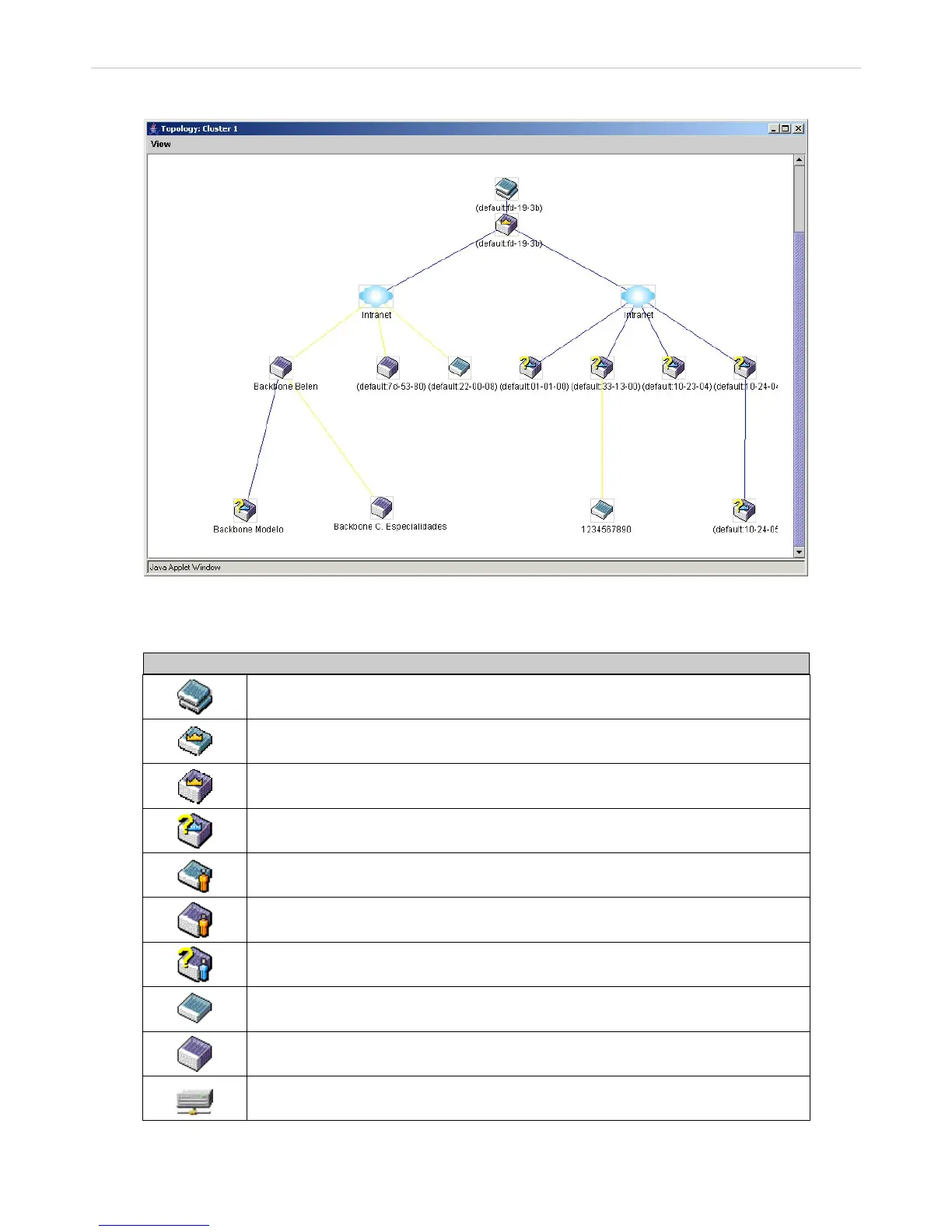

To view the Topology Map, click the View menu in the toolbar and then Topology, which will produce the following window.
The Topology View will refresh itself periodically (20 seconds by default).
Figure 2- 92. Topology View window
This window will display how the devices within the Single IP Management Group are connected to other groups and devices.
Possible icons in this window are as follows:
Icon Description
Group
Layer 2 commander switch
Layer 3 commander switch
Commander switch of other group
Layer 2 member switch
Layer 3 member switch
Member switch of other group
Layer 2 candidate switch
Layer 3 candidate switch
Unknown device
83
