DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
802.1p Settings
The 802.1p Settings section includes 802.1p Default Priority Settings and 802.1p User Priority Settings.
802.1p Default Priority Settings
The Switch allows the assignment of a default 802.1p priority
to each port on the Switch.
This window allows users to assign a default 802.1p priority to
any given port on the Switch. The priority queues are
numbered from 0, the lowest priority, to 7, the highest priority.
Click Apply to implement changes made.
To view this window, click QoS > 802.1p Settings > 802.1p
Default Priority Settings, as shown on the right.
NOTE: The settings users assign to
the queues, numbers 0-7, represent
the IEEE 802.1p priority tag number.
Do not confuse these settings with
port numbers.

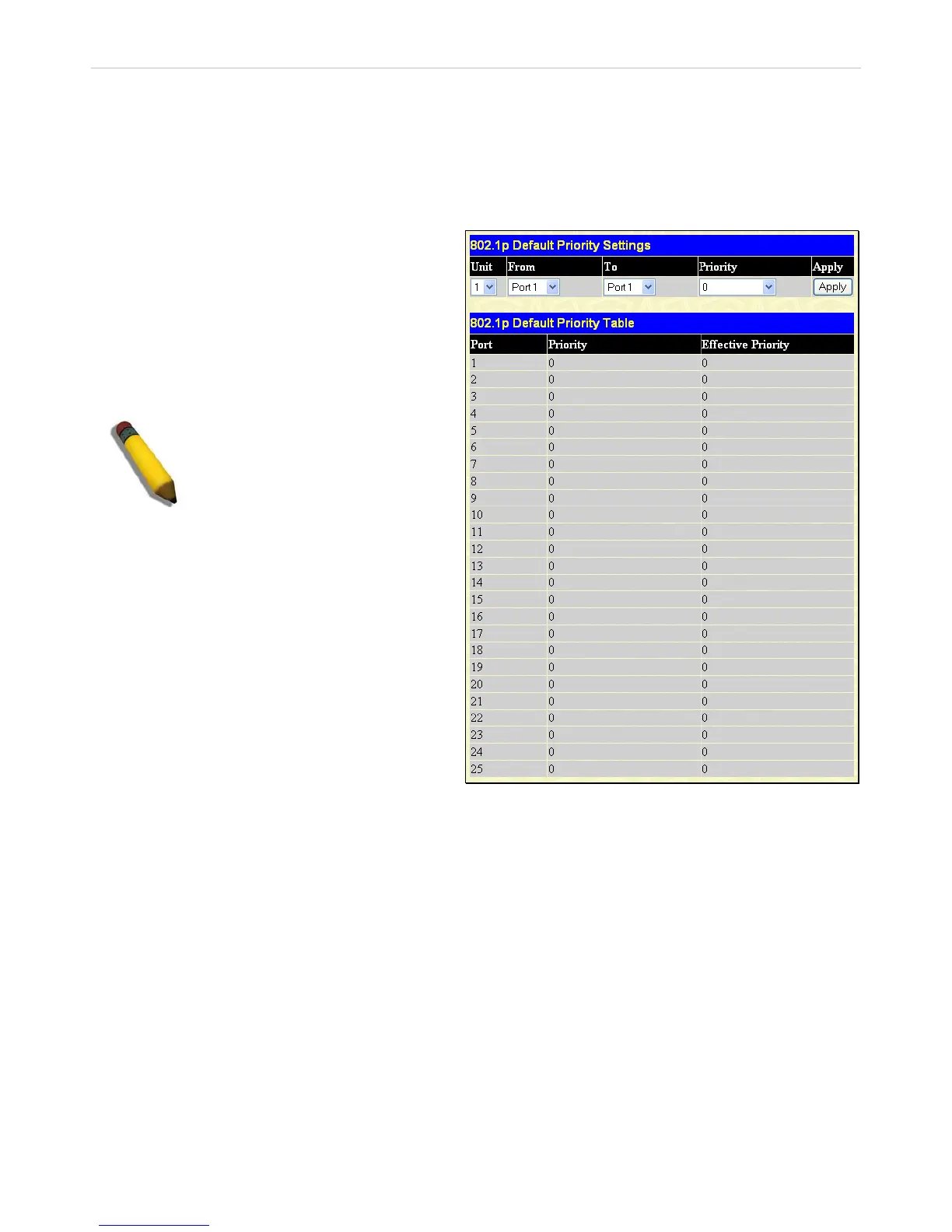

Figure 5- 2. 802.1p Default Priority Settings window
802.1p User Priority Settings
The Switchs allows the assignment of a user priority to each of the 802.1p priorities.
To view this window, click QoS > 802.1p Settings > 802.1p User Priority Settings, as shown below:
