DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Sub VLAN Settings
This window is used to configure the sub VLANs of a super VLAN. A sub VLAN only can belong to one super VLAN and users
cannot bind an IP interface to it. The maximum number of sub VLANs for a super VLAN is 80.
To view this window, click L2 Features > VLAN > Super VLAN > Sub VLAN Settings, as shown below:

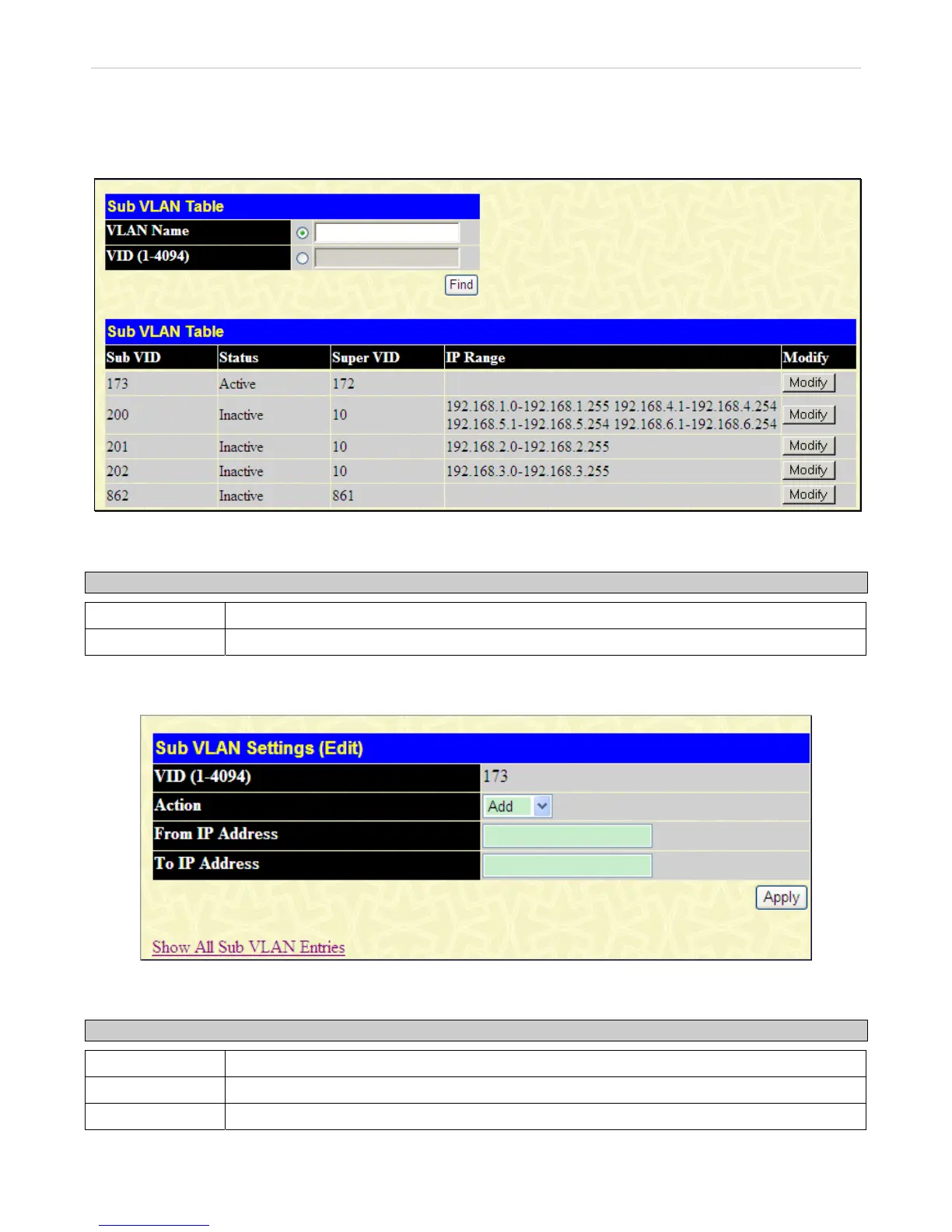

Figure 3- 24. Sub VLAN Table window
The following fields may be configured:
Parameter Description
VLAN Name
Enter the name of the sub VLAN.
VID (1-4094)
Enter the VLAN ID of the sub VLAN.
Clicking the Modify button will open the Sub VLAN Table – Edit window, shown below:
Figure 3- 25. Sub VLAN Table – Edit window
The following fields may be configured:
Parameter Description
Action
Use the drop-down menu to choose the desired action.
From IP Address
Enter the IP address to start from.
To IP Address
Enter the IP address to end with.
