xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

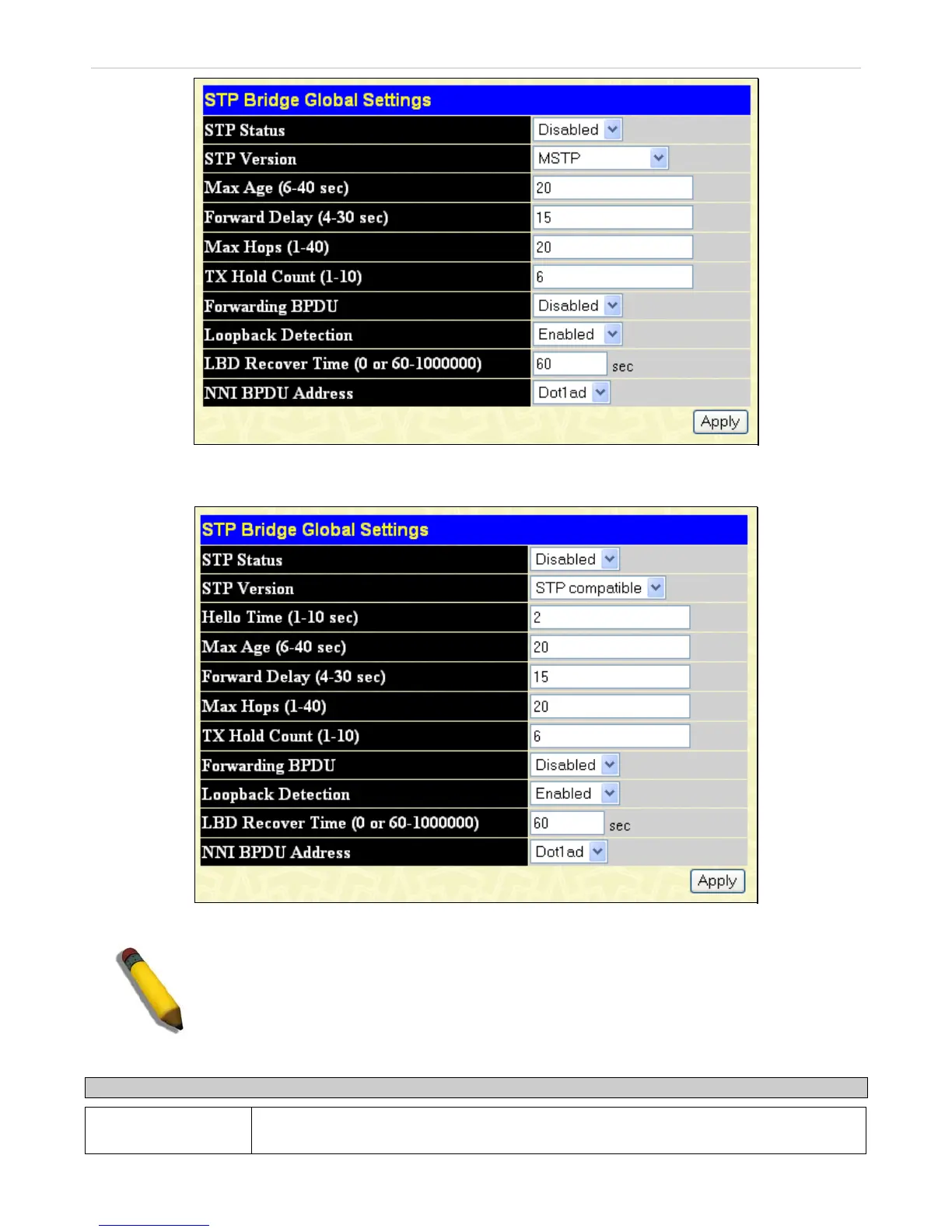

Figure 3- 50. STP Bridge Global Settings window - MSTP
Figure 3- 51. STP Bridge Global Settings – STP Compatible window
NOTE: The Hello Time cannot be longer than the Max. Age. Otherwise, a configuration error will
occur. Observe the following formulas when setting the above parameters:
Max. Age <= 2 x (Forward Delay - 1 second)
Max. Age >= 2 x (Hello Time + 1 second)
The following parameters can be set:
Parameter Description
STP Status Use the pull-down menu to enable or disable STP globally on the Switch. The default is
Disabled.
135
