xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
OSPFv3 Virtual Interface Settings
This window shows the current OSPFv3 Virtual Interface Settings. There are no virtual interface settings configured by default, so
the first time this table is viewed there will be no interfaces listed. To add a new OSPFv3 virtual interface configuration set to the
table, click the Add button. A new window appears (see below). To change an existing configuration, click on the hyperlinked
Transit Area ID for the set you want to change. The window to modify an existing set is the same as the window used to add a
new one.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Virtual Interface Settings, as shown below:

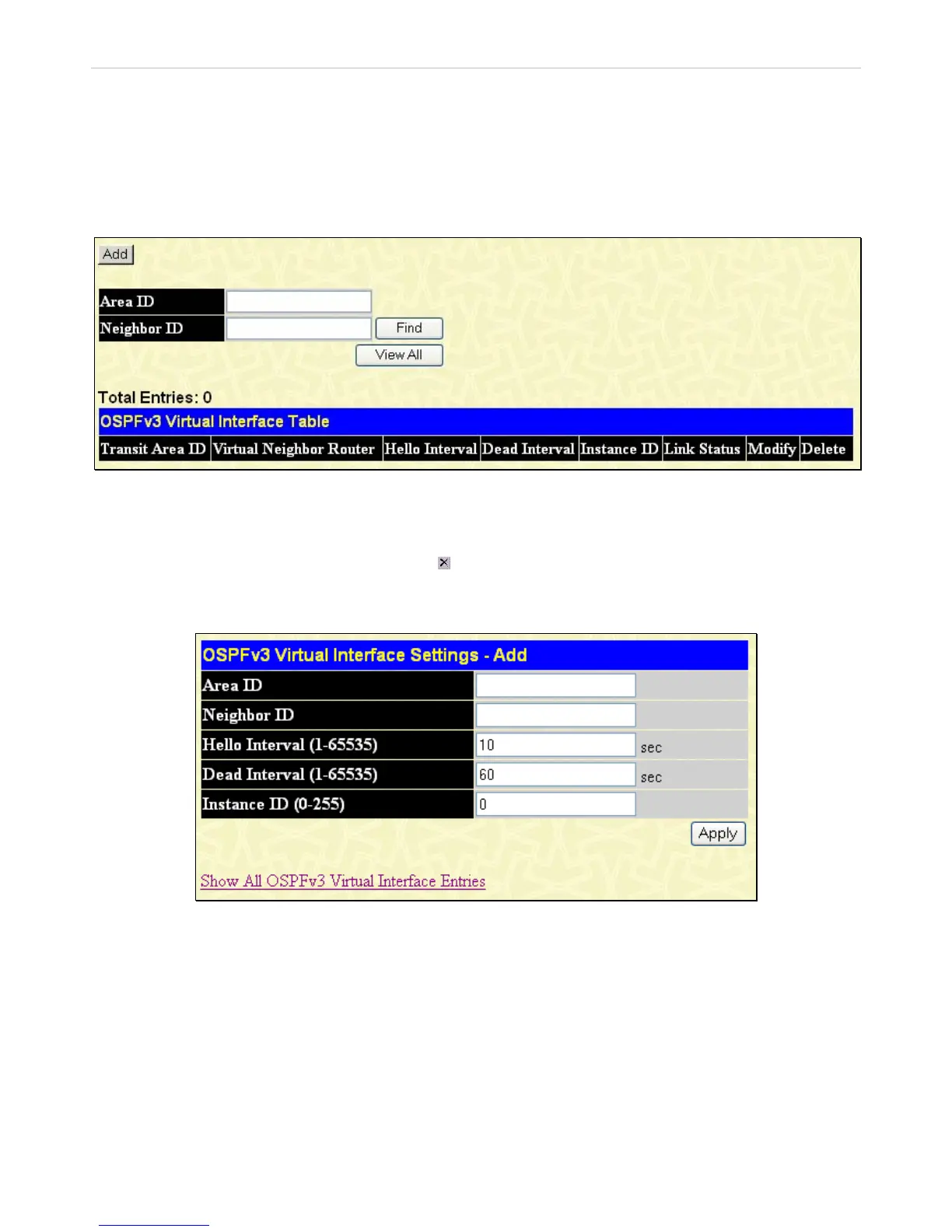

Figure 4- 69. OSPFv3 Virtual Interface Table window
To search for an entry by Area ID and Neighbor ID, click the Find button.
To display all virtual interface entries, click the View All button.
To remove an entry from the table, click its corresponding
under the Delete heading.
Clicking the Add button will reveal the following window to configure:
Figure 4- 70. OSPFv3 Virtual Interface Settings - Add window
To edit an entry in the OSPFv3 Virtual Interface Table window, click the Modify button.
229
