xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

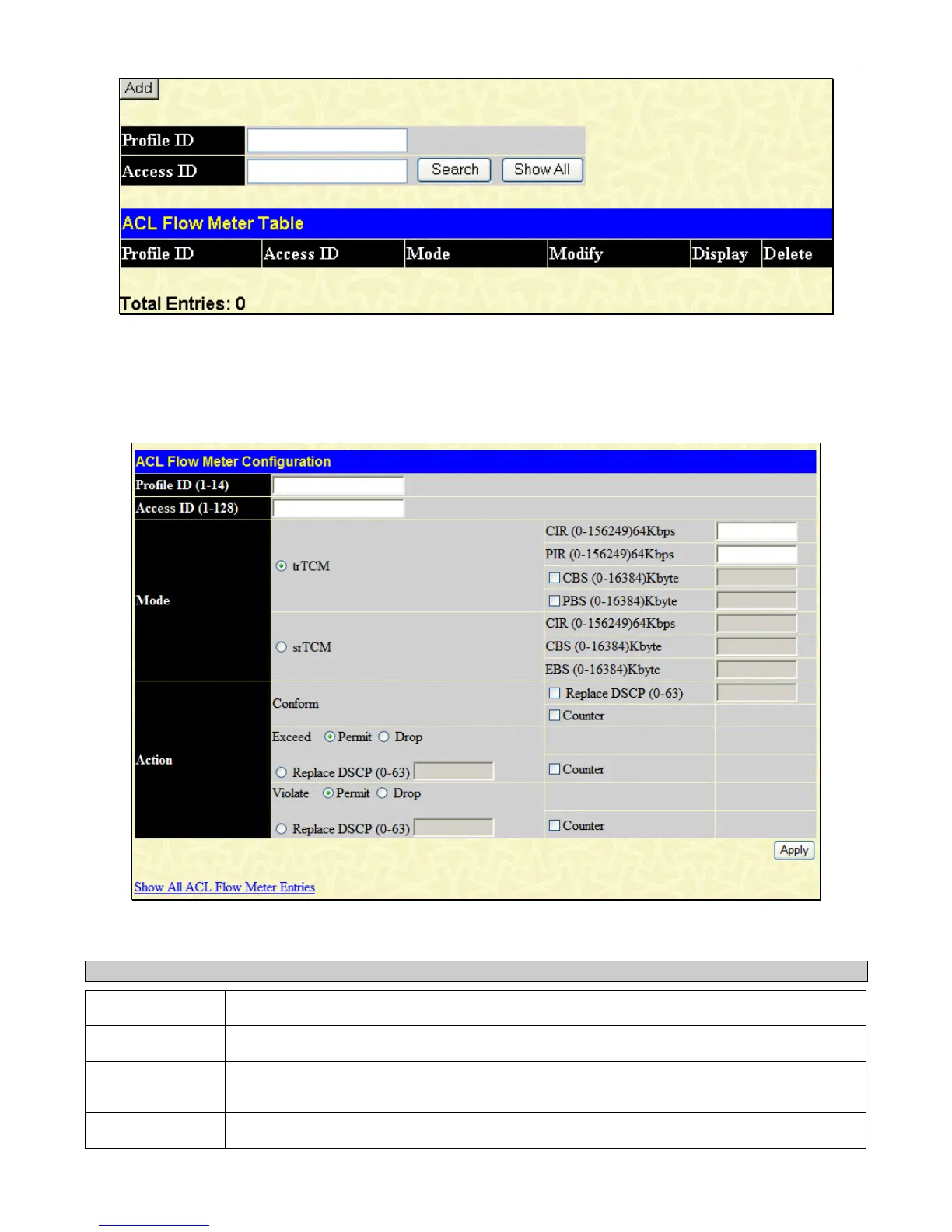

Figure 6- 21. ACL Flow Meter Table window
The previous window allows users to view the ACL profile and rule that is utilizing the ACL Flow Meter function, and the mode
associated with that profile and rule. Users may search a particular Profile ID or Access ID by entering that value into one of the
available fields and clicking Search. The result should be displayed in the table. Click Show All to show all ACL Profiles and
Access IDs that are utilizing the ACL Flow Metering function. To add an ACL Flow Meter configuration for an Access Profile
and Rule, click the Add button, which will display the following window for users to configure.
Figure 6- 22. ACL Flow Meter Configuration window
The following fields may be configured:
Parameter Description
Profile ID (1-14)
Enter the pre-configured Profile ID for which to configure the ACL Flow Metering parameters.
Access ID (1-128)
Enter the pre-configured Access ID for which to configure the ACL Flow Metering parameters.
Mode
In this field the user may choose they type of mode to be employed for the ACL Flow Meter
function, and then the limits of the packet flow.
trTCM
Choosing this field will allow users to employ the Two Rate Three Color Mode and set the
325
