xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
Time Range
Click the check box and enter the name of the Time Range settings that has been previously
configured in the Time Range Settings window. This will set specific times when this CPU
access rule will be implemented on the Switch.
To view the settings of a previously configured rule, click in the Access Rule Table to view the following window:

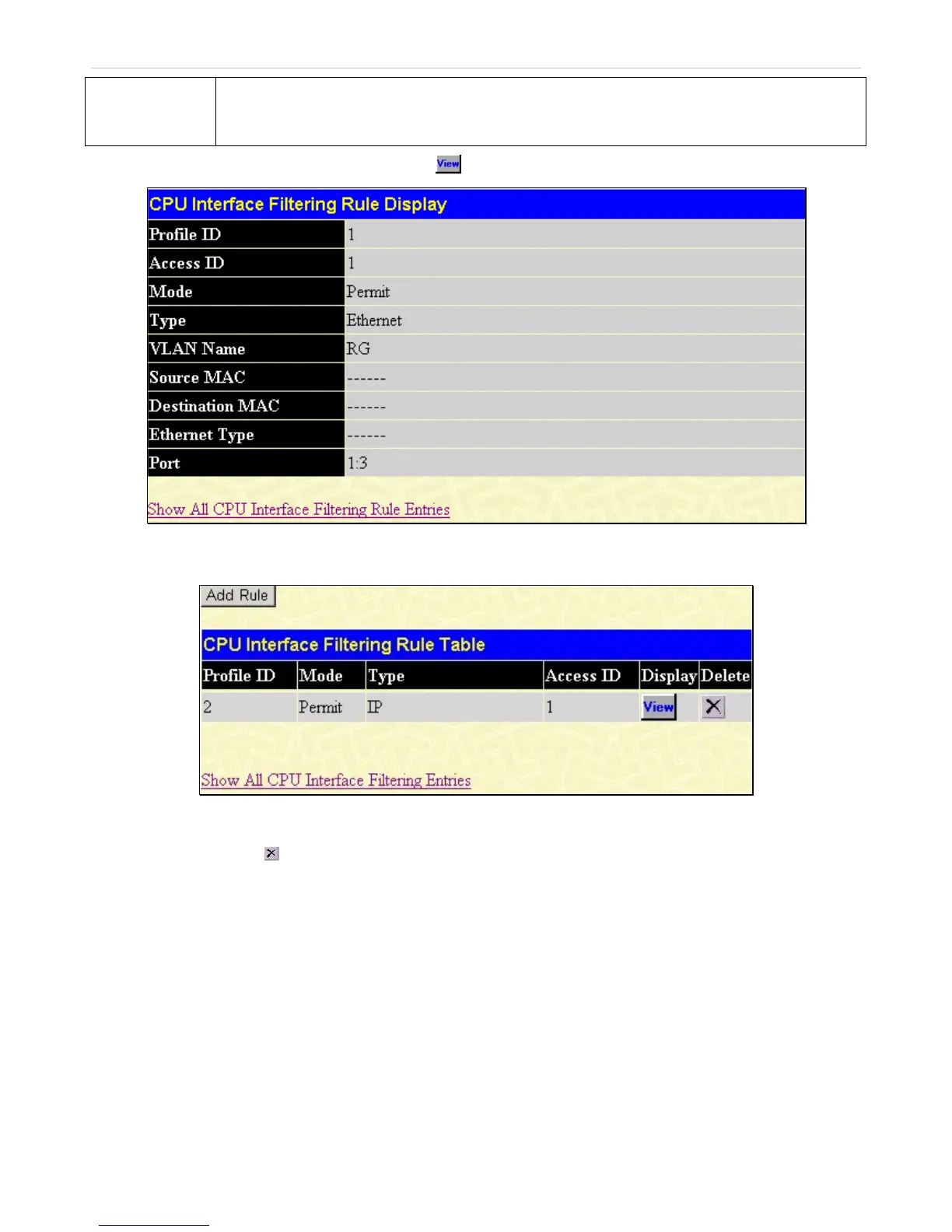

Figure 6- 33. CPU Interface Filtering Rule Display window (Ethernet)
The following window is the CPU Interface Filtering Rule Table for IP.
Figure 6- 34. CPU Interface Filtering Rule Table window (IP)
To create a new rule set for an access profile click the Add button. A new window is displayed. To remove a previously created
rule, click the corresponding
button. The following window is used for the CPU IP Rule configuration.
335
