xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch
The following fields can be configured:
Parameter Description
VLAN Name
Enter the name of the VLAN to Add, Find or Delete.
VID (1-4094)
Enter the VLAN ID of the VLAN to Add, Find or Delete.
Mirror Group ID
The mirror group identify that specifies which mirror session is used for the RSPAN
source function. If the mirror group is not specified when configuring the mirror ports, the
mirror group 1 will be the default group.
Target Port
The mirror group target port which the mirror session used for the RSPAN source
function.
RX Source Ports
The goal of Rx source ports is to monitor as much as possible all the packets received
by the source interface or VLAN before any modification or processing is performed by
the switch. A copy of each packet received by the source is sent to the destination port
for that RSPAN session.
TX Source Ports
The goal of Tx source ports is to monitor as much as possible all the packets sent by the
source interface after all modification and processing is performed by the switch.
Redirect Port
RSPAN redirect function will work when RSPAN is enabled and at least one RSPAN
VLAN has been configured with redirect ports.
Modify Redirect
Click on the corresponding Modify button to edit the entries.
Modify Source
Click on the corresponding Modify button to edit the source setting for the RSPAN
VLAN on the source switch.
To remove an entry, click the corresponding Delete by VLAN icon. To search for an entry enter the appropriate information and
click the Find by VLAN button. To modify an existing entry, click the corresponding Modify button, revealing the following
window to configure:

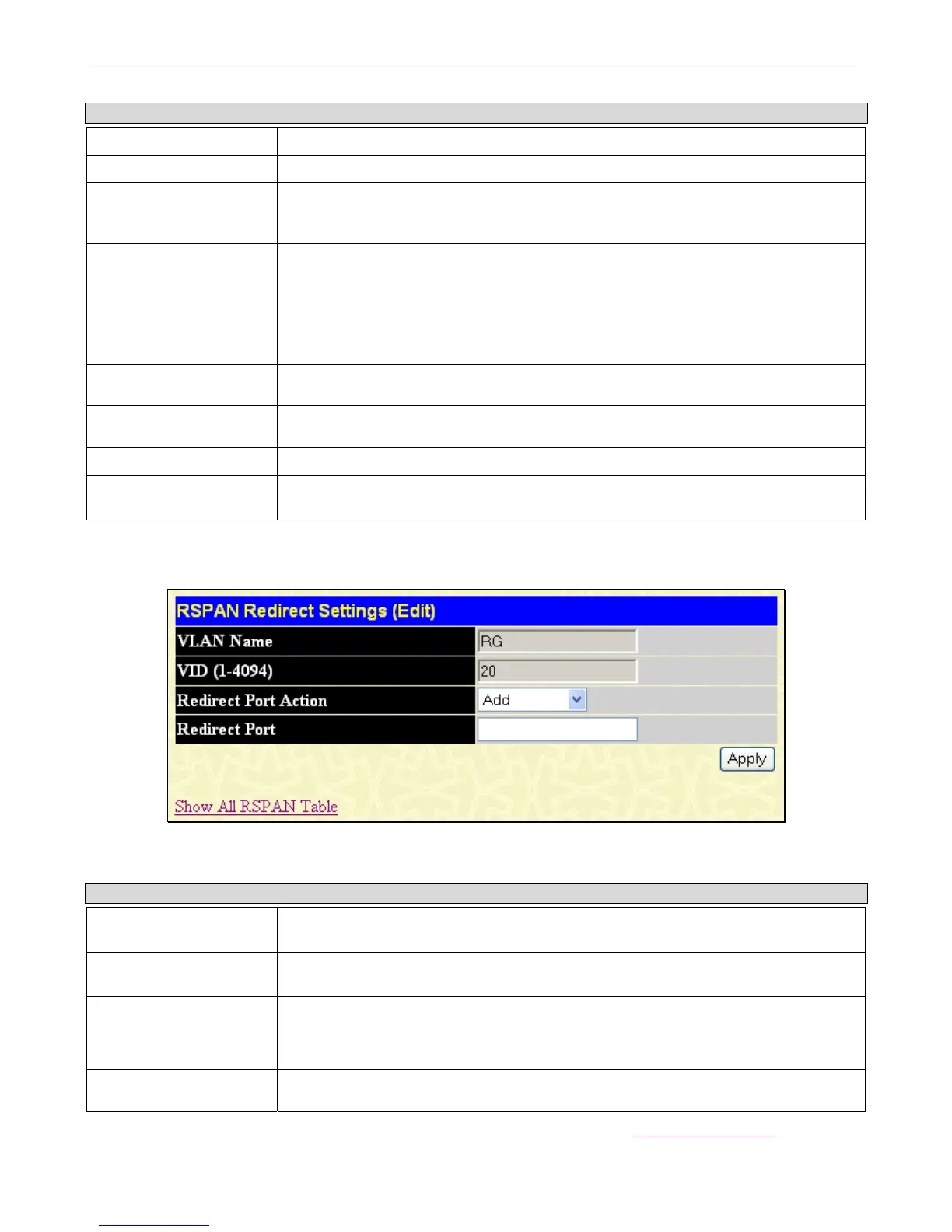

Figure 2- 64. RSPAN Redirect Settings (Edit) window
The following fields can be configured:
Parameter Description
VLAN Name
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN which will
modify the RSPAN Entries.
VID (1-4094)
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN which will to
modify the RSPAN Entries.
Redirect Port Action
Use the drop-down menu to select the configuration Redirect Ports Action.
Add – Add Redirect ports.
Delete – Delete Redirect ports.
Redirect Port
RSPAN redirect function will work when RSPAN is enabled and at least one RSPAN
VLAN has been configured with redirect ports.
Click Apply to implement the changes. To return to the RSPAN Settings window, click the Show All RSPAN Table link.
60
