FC 300 Design Guide
How to Program

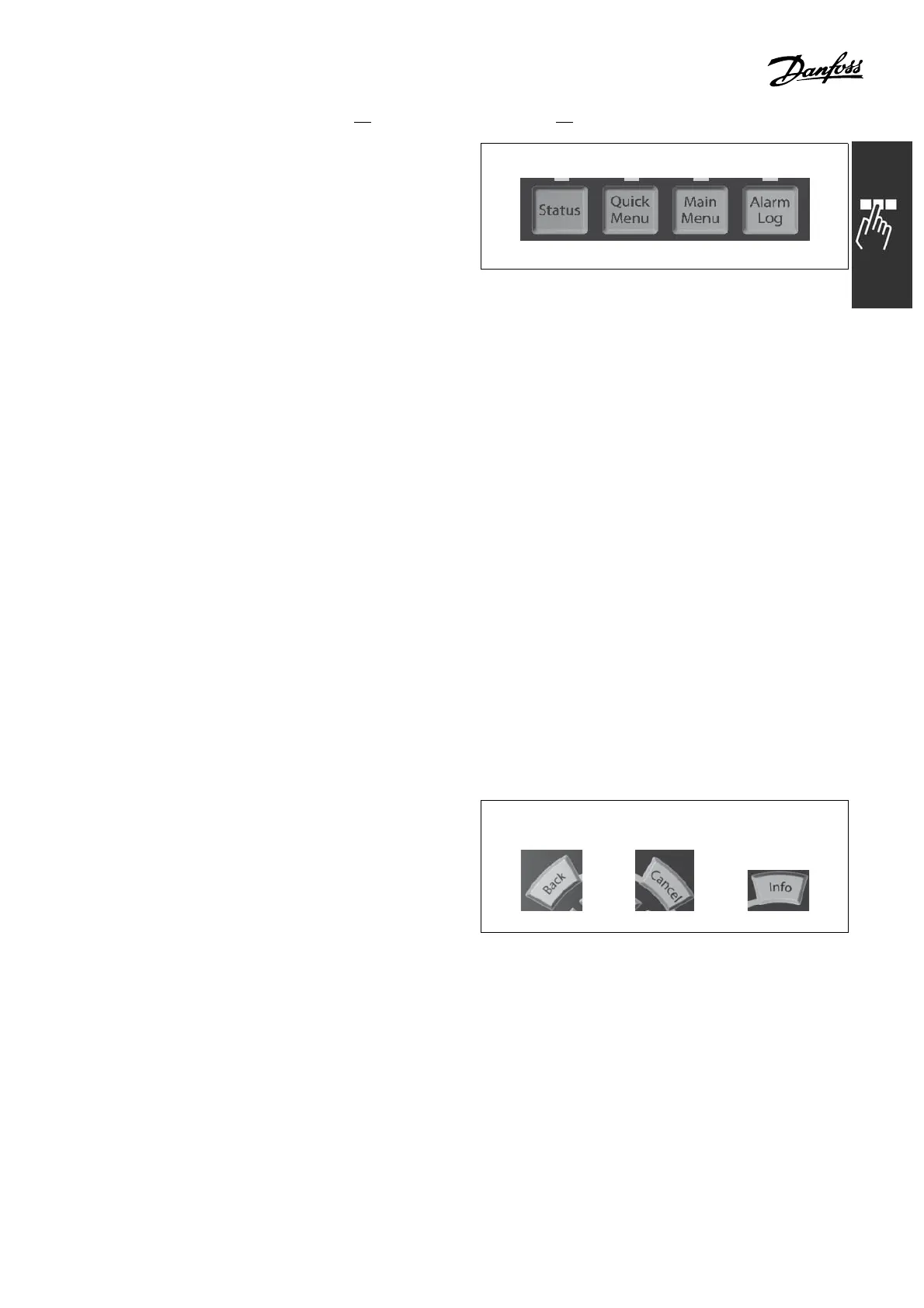

LCP keys
The control keys are divided into functions. The
keys below the display and LEDS are used for
parameter S et-up, including choice o f display
indication during normal operation.
130BP045.10
[Status] indicates the status of the adjustable frequency drive and/or the motor. You can
choose between 3 different readouts by pressing the [Status] key:
5 line readouts, 4 line readouts or Smart Log ic Control.
Use [S tatus] for selecting the mode of display or for changing back to Display mode from either the Quick Menu
mode, the Main Menu mode or Alarm mode. Also use the [Status] key to toggle single or double readout mode.
[Quick Menus] allows quick access to d ifferent Quick Menus such as:
- My personal menu
- Quick setup
- Changes made
- Loggings
Use [Quick M enus] for programming the parameters belonging to the Quick Menu. It is possible
to switch directly between Quick Menu mode and Main Me n u mode.
[Main Menu] is used for programming all parameters.
It is possible to switch directly between Main Menu mode and Quick Menu mode.
Parameter shortcut can be carried out by pressing down the [Main Menu] key for 3 seconds.
The p arameter shortcut allows direct access to any parameter.
[Alarm log] displays an Alarm list of the five late st alarms (numbered A1-A5). To obtain additional details
about an alarm, us e the a rrow keys to maneuver to the alarm number and press [OK]. You will now receive
information about the condition of your adjustable frequency drive right before entering the alarm mode.
[Back] takes you to the previous step or layer
in the navigation structure.
[Cancel] annuls your last change or command as
long as the display has not been changed.
[Info] supplies information about a command,
parameter, or function in any display window. [Info]
provides detailed information whenever
help is nee ded .
Exit info mode by pressing either [Info],
[Back], or [Cancel].
137
MG.33.B6.22 - VLT is a registered Danfoss trademark
