FC 300 Design Guide
How to Program

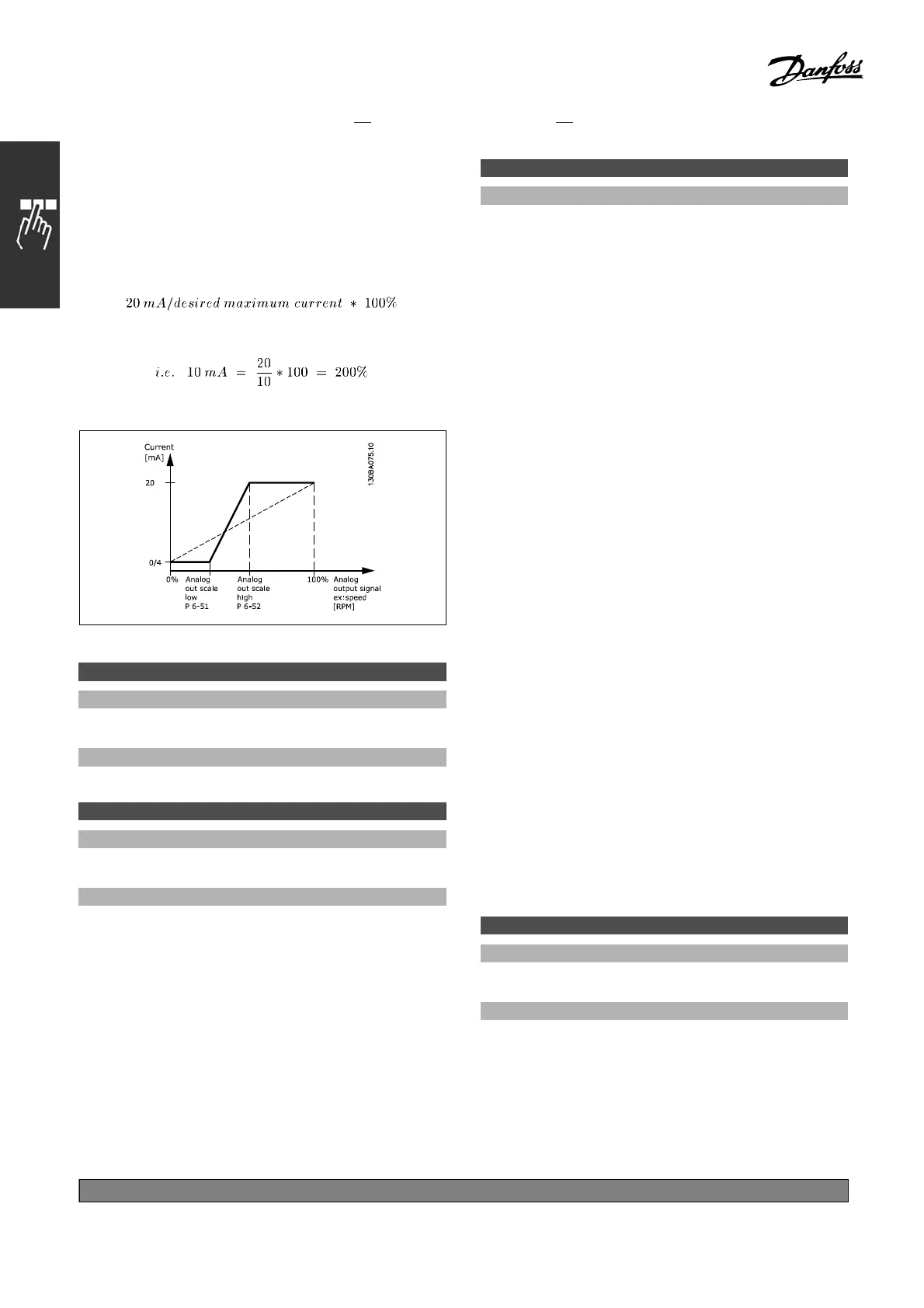

at a value between 0 - 100% of the full-scale output,
program the percentage value in the parameter,
i.e., 50% = 2 0 mA. If a current between 4 and
20 mA is desired at maximum output (100%),
calculate the percentage value as follows:
6-53 Terminal 42 Output Bus Control
Range:
0.00 – 100.00%
*
0.00%
Function:
Holds the level of Output 42 if controlled by bus.
6-54 Terminal 42 Output Timeout Preset
Range:
0.00 – 100.00%
*
0.00%
Function:
Holds the preset level of Output 42.
In case of a bus timeout and a timeout
function is selected in par. 6-50, the output
will preset to this level.
" 6-6* Analog Output 2 (MCB 101)
Analog outputs are current outputs: 0/4 -
20 mA. Common terminal (terminal X30/7)
is the same terminal and electrical potential
for an analog common connection. Resolution
on analog output is 12 bit.
6-60 Terminal X30/7 Output
Option:
No operation [0]
MCO 0-20 mA [52]
MCO 4-20 mA [53]
Outputfrequency(0. 1000Hz),0.20mA[100]
Output frequency (0 . 1000 Hz), 4 .20 mA
Reference (Ref min-max), 0.20 mA [101]
Reference (Ref min-max), 4.20 mA
Feedback (FB min-max) 0.20 mA [102]
Feedback (FB min-max) 4.20 mA
Motor current (0-Imax) 0.20 mA [103]
Motor current (0-Imax) 4.20 mA
Torque relative to limit 0-Tlim, 0.20 mA [104]
Torque relative to limit 0-Tli m, 4.2 0 mA
To rque relative to rated 0-Tnom,
0.20 mA [105]
To rq ue relative to rated 0-Tnom, 4.20 mA
Power (0-Pnom), 0.20 mA [106]
Power (0-Pnom), 4.20 mA
Speed (0-Speedmax), 0.20 mA [107]
Speed (0-Speedmax), 4.20 mA
Torque (+/-1 60% torque), 0-20 mA [108]
Torque (+/-160% torque), 4-20 mA
Output freq. 4-20 mA [130]
Reference 4-20 mA [131]
Feedback 4-20 mA [132]
Motor cur. 4-20 m A [13 3]
To rq ue % lim. 4-20 mA [134]
Tor q ue % no m 4 -2 0 mA [ 1 35 ]
Power 4 -20 mA [136]
Speed 4-20 mA [137]
Tor q ue 4-2 0 m A [1 38]
Bus Ctrl 0-20 mA [139]
Bus Ctrl 4-20 mA [140]
Bus Ctrl 0-20 m A , Timeout [141]
Bus Ctrl 4-20 m A , Timeout [142]
6-61 Term. X30/8 Output Min Scale
Range:
0.00 - 200%
*
0%
Function:
Scales the minimum output of the selected a nalog
signal on terminal X30/8. Scale the minimum value
as a percentage of the maximum signal value, i.e.,
0 mA (or 0 Hz) is desired at 25% of t h e maximum
output value and 25% is programmed. The value
*
default setting ()display text []value for use in communication via serial communication port
206
MG.33.B
6.22 - V LT is a registered Danfoss trademark
