PackTrack™
Reference Manual 221

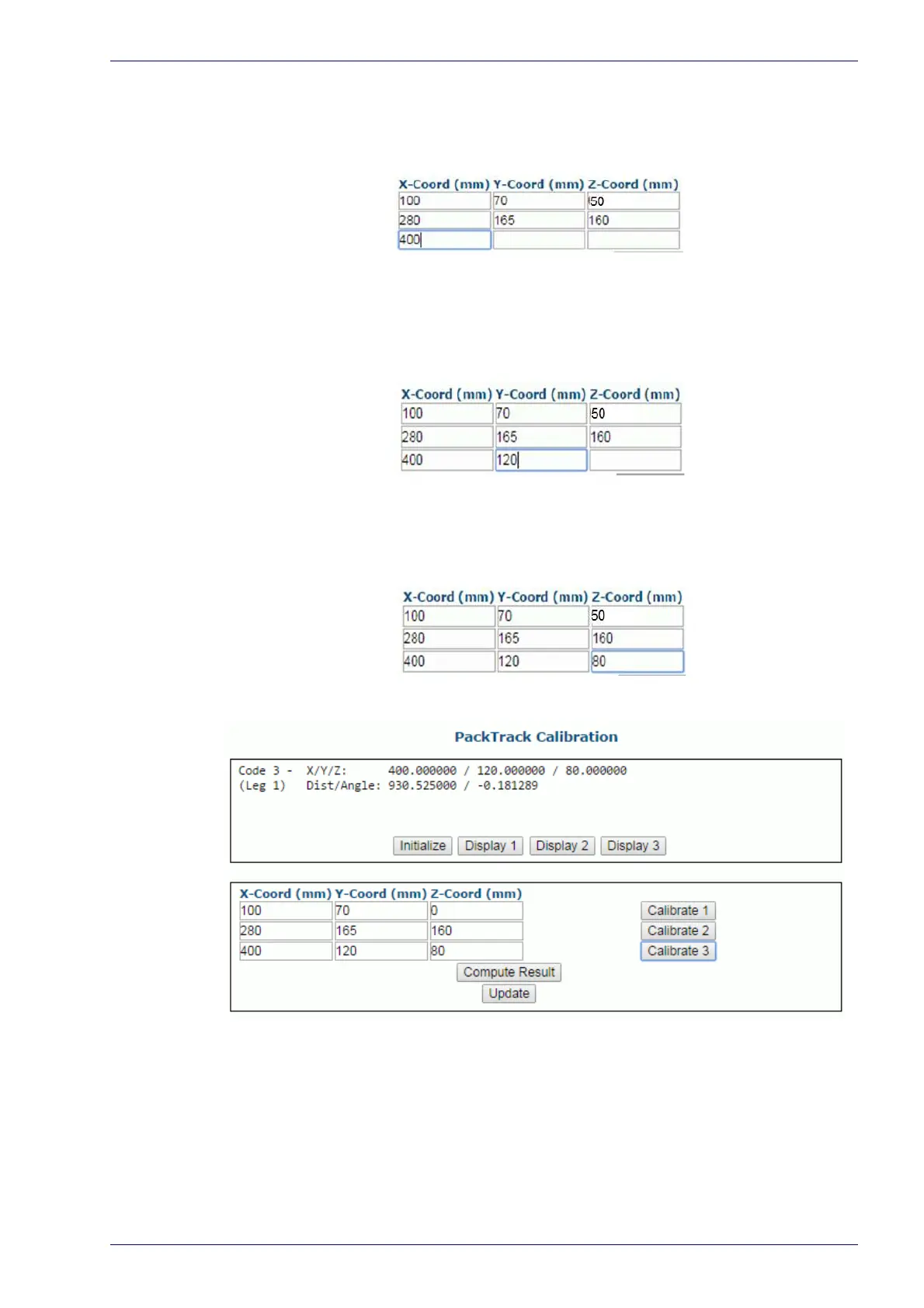

12. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode, and enter that distance in the first box under X-
Coord (mm).
Your measurements will likely differ from those shown below.
13. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on the barcode (back edge of box), and enter that distance in
the fir
st box under Y-Coord (mm).
Your measurements will likely differ from those shown below.
14. Measure the distance for Z from the conveyor bed to the laser line inter-
secting the barcode, and enter that dist
ance in the first box under Z-Coord
(mm)
.
Your measurements will likely differ from those shown below.
15. Click Calibrate 3. PackTrack data is displayed for the third code.
16. Click Compute Results. The results are displayed at the top of the PackTrack
Calibration window.
