Ethernet | User Sockets
Reference Manual 107
Port
The port number specified.
User Socket n
Enable User Socket
Select the check box to enable User Sockets and reveal the related configuration
options.
Enable Data Transmission
Select the check box to enable User Sockets and reveal the related configuration
options. When enabled, Ethernet User Socket is selected as the channel to be used
by the scanner for transmitting data and/or messages.
Heartbeat
Select Disable, Enable Unconditioned, or Enable Conditioned from the drop-down
list. This parameter is available when the Data TX parameter is checked. It enables/
disables the transmission of the Heartbeat message signaling that the device is still
active.
Disable: The Heartbeat message is not transmitted
Enable Unconditioned: The Heartbeat message is always transmitted, even if
communication is still active
Enable Conditioned: The Heartbeat message is transmitted only when there is
no communication

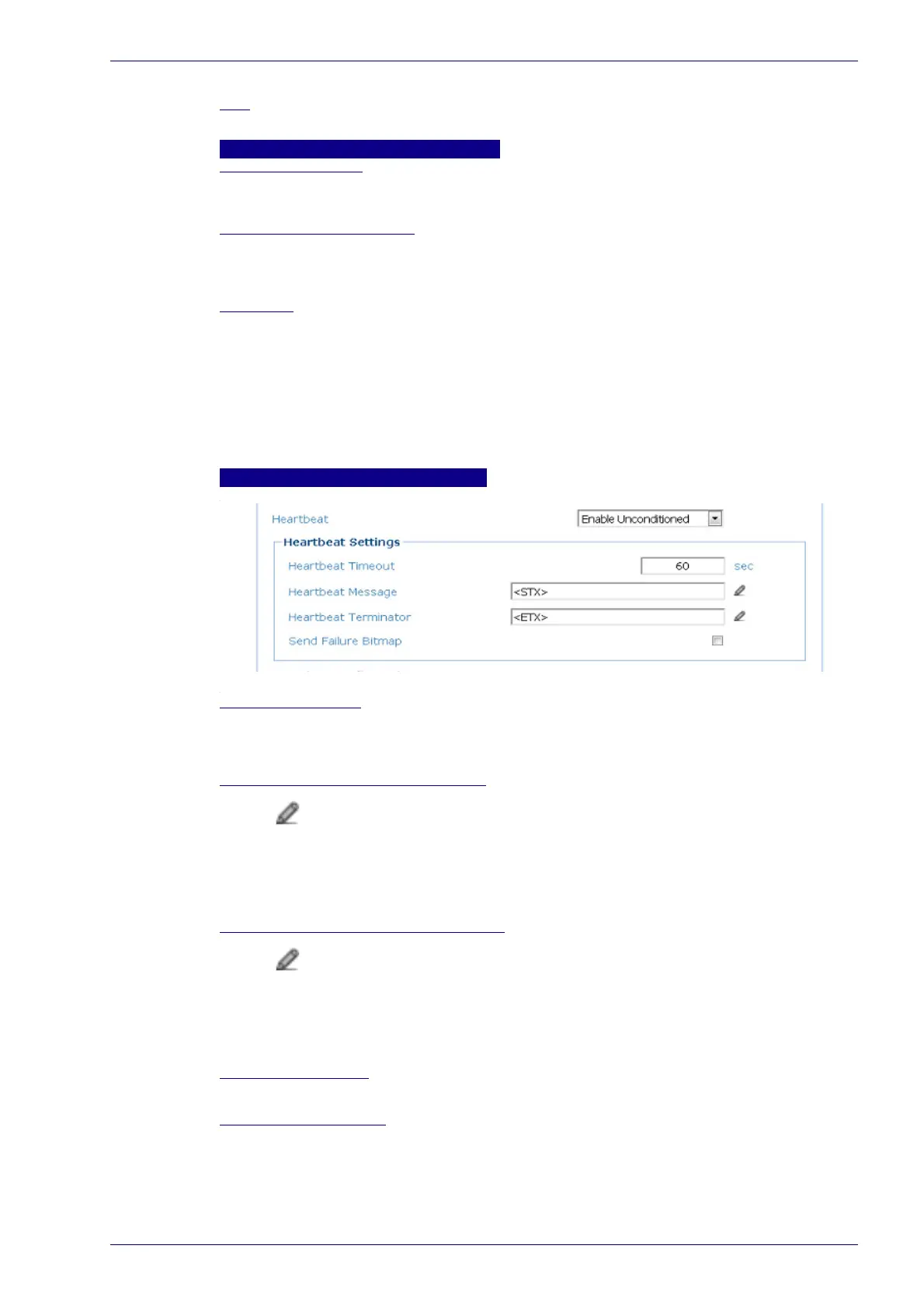

Heartbeat Settings
Heartbeat Timeout
Enter a time value in seconds to define the amount of time between two message
transmissions. If the input timeout expires and no transmission has occurred, the
Heartbeat message will be transmitted.
Heartbeat Message (max. 32 chars)
Click to activate the Text Entry Tool and create heartbeat header text to signal
the beginning of the heartbeat message. Characters from NUL (00H) to ~ (7EH) can
be used. Click Submit to save your text to the origin window text field, or click
Cancel to return to origin window without transferring text.
The Heartbeat Message (header) string must be different from the Heartbeat
Terminator string.
Heartbeat Terminator (max. 32 chars)
Click to activate the Text Entry Tool and create Heartbeat Terminator text to
signal the end of the heartbeat message. Characters from NUL (00H) to ~ (7EH) can
be used. Click Submit to save your text to the origin window text field, or click
Cancel to return to origin window without transferring text.
The Heartbeat Terminator string must be different from the Heartbeat Message
(header) string
Send Failure Bitmap
Select the check box to include a Failure Bitmap in the heartbeat message.
Failure Bitmap Format
Select the Format of the Failure Bitmap from the drop-down. Options are; Decimal
(ASCII), Hexidecimal (ASCII), Bitmap (ASCII) and Numeric (Binary
