Electrical Installation
24
DX8210 Barcode Scanner

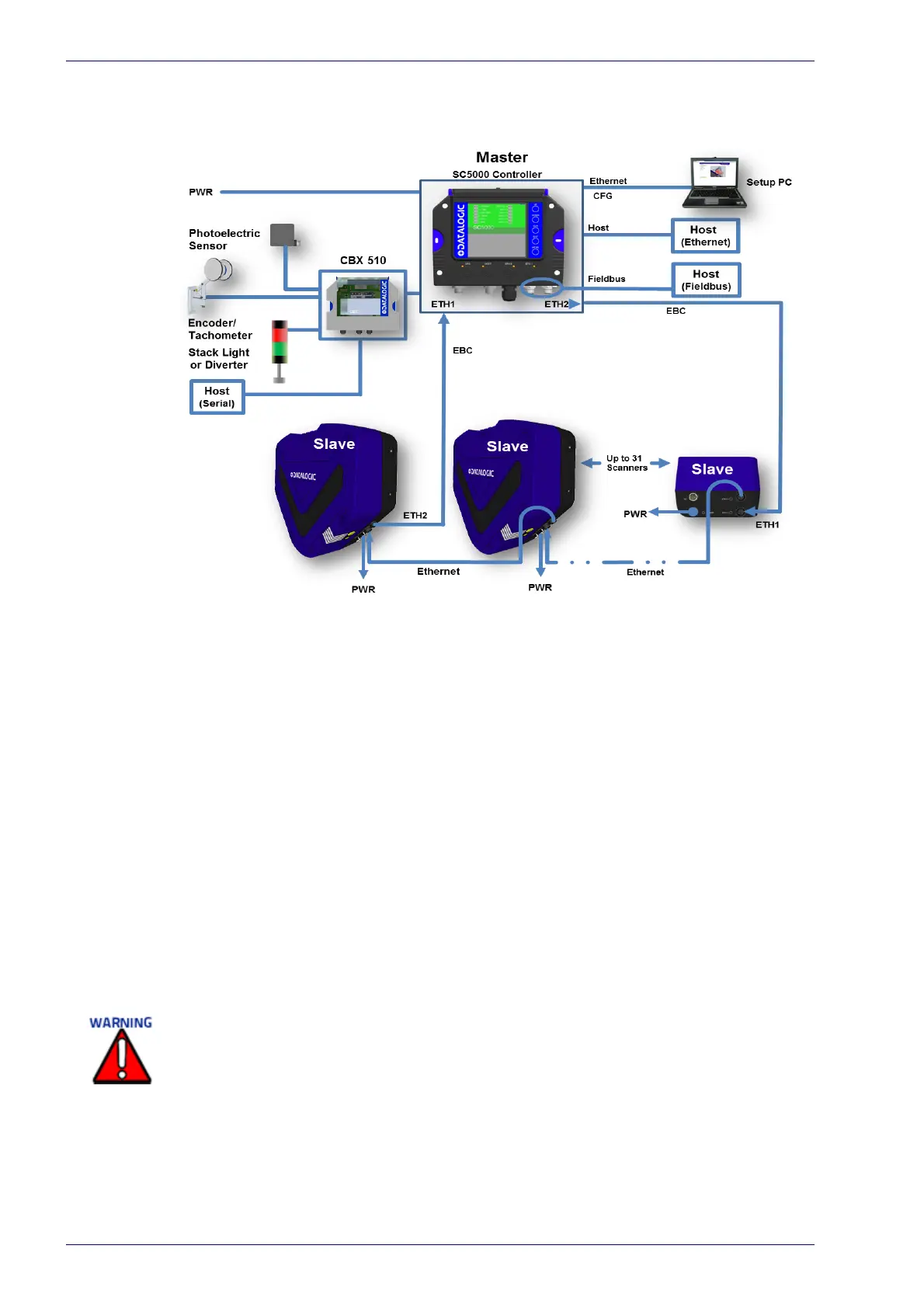

DX8210 Barcode Scanners in an Array with CBX
General Electrical Installation Guidelines and Precautions
It is important that you follow these general precautions when installing, setting
up, operating, maintaining, troubleshooting or replacing any Datalogic products,
parts or related equipment. As you plan and install your scanner(s), be sure to
keep the following guidelines in mind:
• Determine the scanner is in the proper location as outlined in Chapter 2.
• Leave adequate clearances (approximatel
y 300mm [12 inches]) for wiring.
• Route wires carefully to reduce or minimize electrical noise.
• When extraneous power and communication wiring must cross, make their
in
tersection perpendicular. Avoid running power and data wiring parallel to
each other. If possible, maintain one of the following separations between
the power and data wiring:
- 300 mm [12 inch] gap
- use steel conduit and 25 mm [1 inch] gap
- 6.5 mm [0.25 inch] of aluminum.
When planning your installation wiring, remember all power connections must be
quick-disconnect. For PERMANENTLY CONNECTED EQUIPMENT a readily accessible
disconnect device must be incorporated in the building installation wiring. For PLUG-
GABLE EQUIPMENT the socket-outlet must be installed near the equipment and must
be easily accessible.
To assure no ESD damage will occur, be sure to observe the precautions outlined in the
Introduction to this manual.
Ground the mounting structure to safety ground (protective earth ground (PE)). See wir-
ing recommendations for safety ground.
