CBX510 Connection Box
Reference Manual 27
The CBX connection boxes provide flexible connectivity to a range of I/O devices
as well as serial hosting. The DX8210 connects to the CBX via its I/O port using a
single 17-pin M12 to 25-pin D cable. The CBX connection box also provides
space for an optional BM100 backup module (recommended) for parameter stor-
age, allowing quick replacement and configuration of the scanners.
In a system with multiple scanners and other devices
required in a scanning
array (tunnel), an SC5000 Controller serves as the system Master and provides
communications between devices and to the Host. Complete installation infor-
mation for the SC5000 Controller is available in the
SC5000 System Controller
Reference Manual
available at www.datalogic.com.
CBX510 Connection Box
Complete installation information for the connection box is available in the

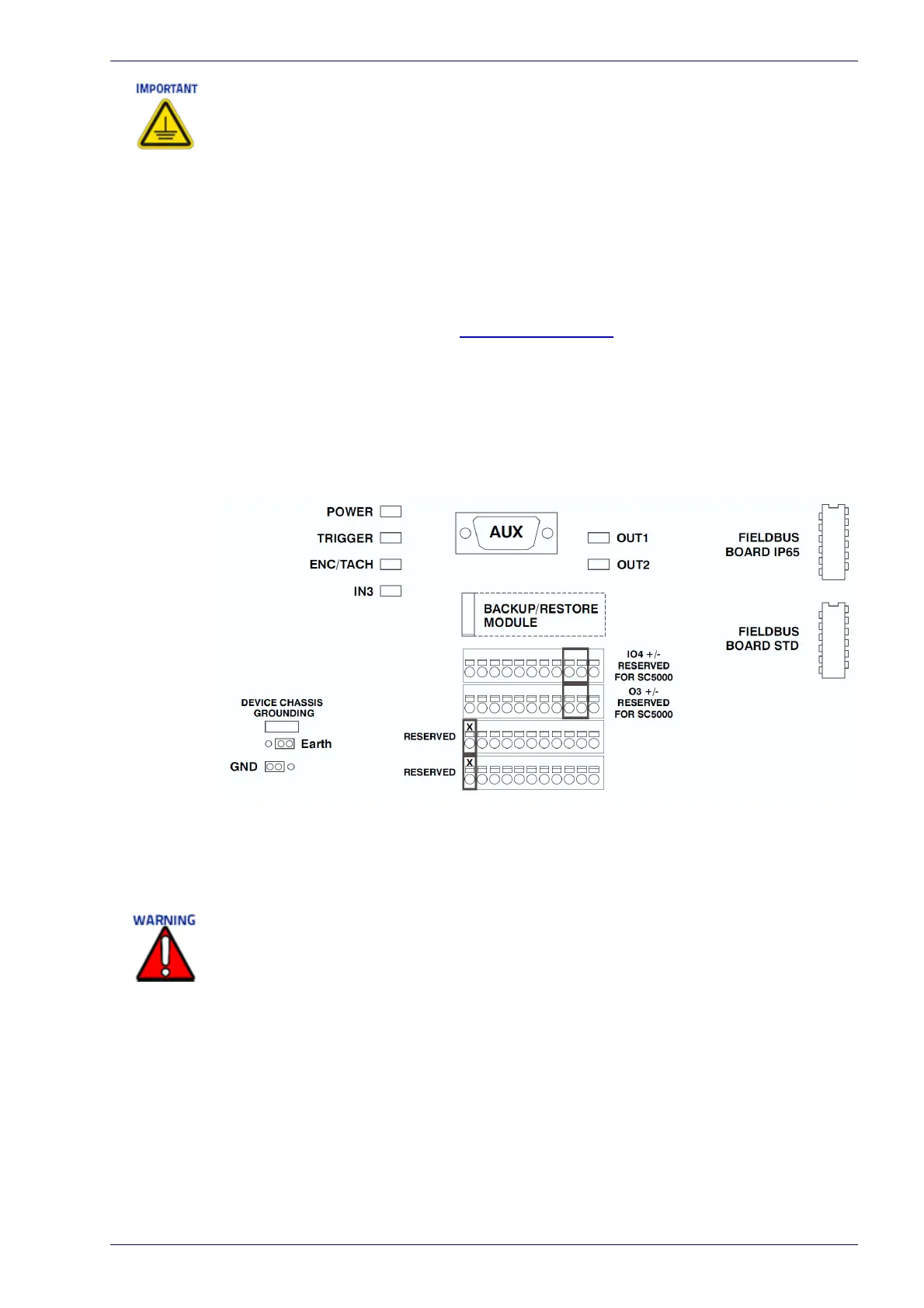

CBX510 Installation Manual available at www.datalogic.com. A simple drawing of
the interior of the box is shown below.
Wiring Into the CBX510 Connection Box
Loose-lead cables must pass through the water-tight seals in the base of the
CBX510 connection box. Insert the cables allowing enough slack for the individ-
ual wires to reach the appropriate pin block connectors. Securely tighten the
wat
er-tight seals after the cables have been inserted.
Insulation on individual wires
should be removed to expose 13 mm [0.5 inch] of
bare metal before inserting into the pin block.
Ground the scanner to safety ground (protective earth ground (PE)). See wiring recom-
mendations for safety ground.
DO NOT connect a separate power source to the CBX510 connection box. The CBX510
receives its power through its connection to the DX8210/DX8210 Barcode Scanner.
Connecting a separate power source will be detrimental to the system operation.
DISCONNECT POWER from the scanning system and CBX510 before wiring any compo-
nents.
