Photoelectric Sensor
Reference Manual 7

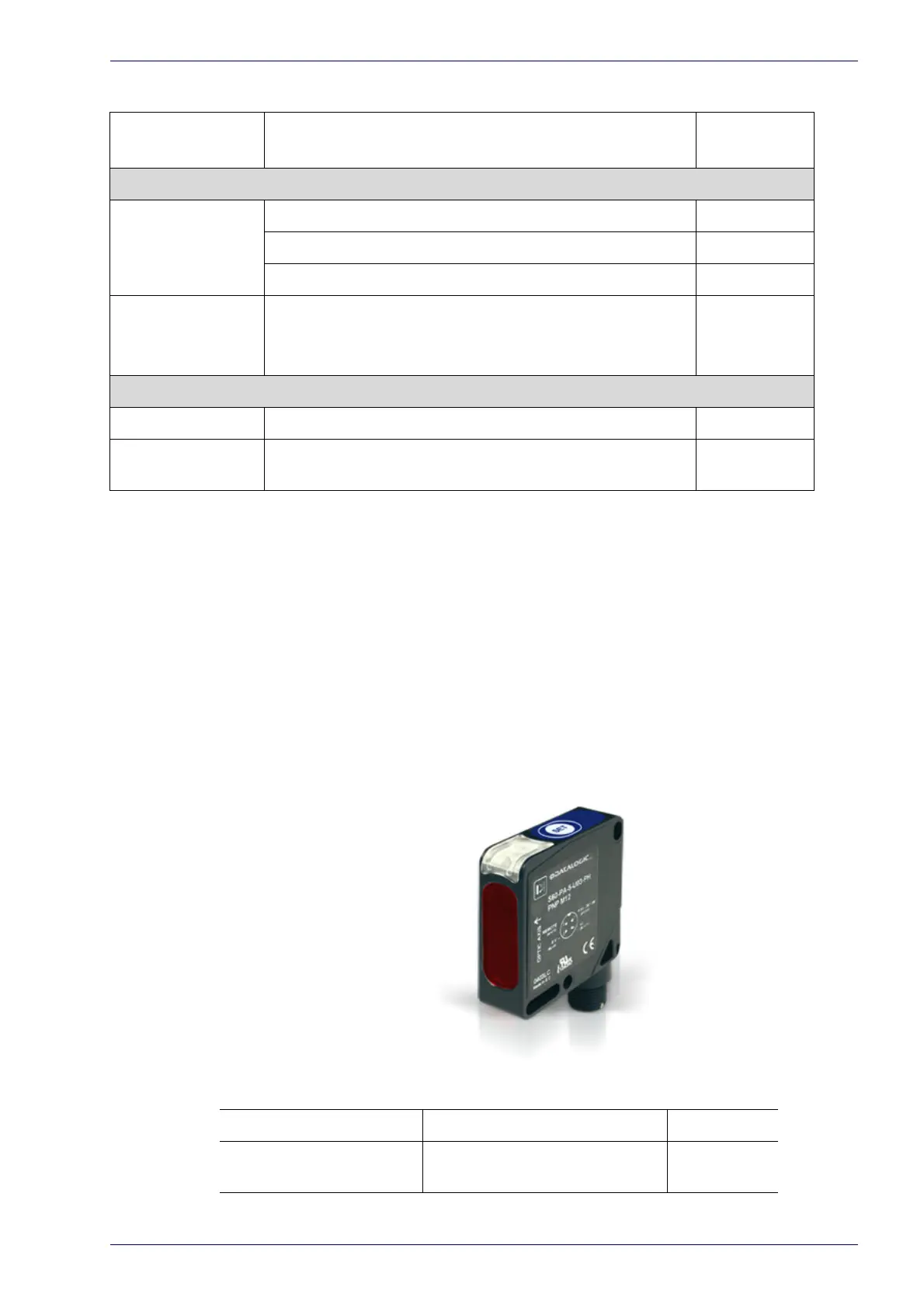

Photoelectric Sensor
The optional Datalogic Photoelectric Sensor is used in DX8210 barcode scanner
systems to detect the presence of an item in the scanning area.
The photoelectric sensor is used in singulated systems where the packages are
se
parated by an open space between the trailing edge of one package and the
leading edge of the next. The photoelectric sensor, along with the encoder,
enables a programmable transmit point at a defined distance from the sensor.
Without the photoelectric sensor, the barcode scanner can be run in continuous
mode.
See Modify Settings | Global Settings | Operating Mode.
Depending on the application, these device
s may need to be configured differ-
ently. While the photoelectric sensor and tachometer work well with belt convey-
ors, a special configuration is needed
for tilt-tray and cross-belt sorter
applications.
See section for wiring options.
Photoelectric Sensor and Cable (recommended)
MEP-593 PHOTOCELL KIT PNP (PH-1) with Stripped Wires 93ACC1791
MEP-604 PHOTOCELL KIT
PNP M12-M12 Photocell with
M12 connector for SC500
0
93ACC0140
MEP-604 PHOTOCELL KIT PNP M12-M12
Photocell with M12 connector for SC500
0
93ACC0140
Encoders
OEK-2 OPTICAL ENCODER KIT (CAB 10M +SPRING) 93ACC1770
OEK-4 ENC KIT PNP 250PPR + M12-M12 CABLE 95B082040
OEK-4 ENC KIT PNP 250PPR + M12-FREE CABLE 95B082050
Field Mount Con-
nectors
FMC-5000 2xM12 TRIG+ENC INPUT KIT
Connectors for PLC signal to SC5000
(Tilt-Tray or Cross-Belt applications)
93ACC0181
Mounting Brackets
L-Bracket DX8210 L-SHAPE Mtg Bracket-Standard 93ACC0151
L-Bracket
DX8210 L-SHAPE SIDE MOUNTING BRACKET (for side Air-
port mounting)
93ACC0079
Category Description Part Number
