Barcode Scanning Features
194
DX8210 Barcode Scanner
Basic Installation with SC5000 Controller
1. Mechanically install the scanners according to the application drawing for
your system.
2. Install the SC5000 according to the application drawing or in a location for
best
wiring access to scanner(s), encoder (tachometer), and photoelectric
sensor.

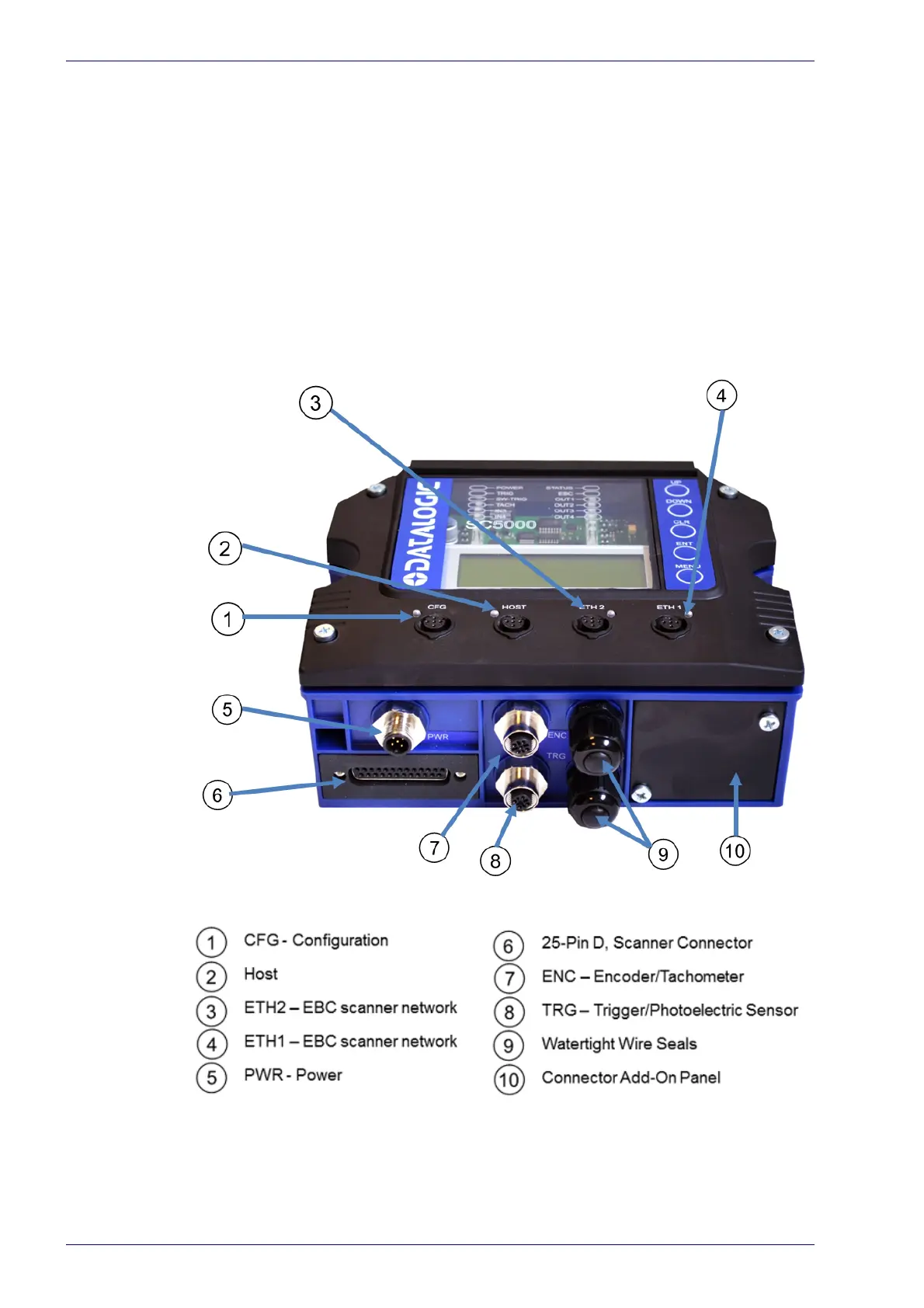

3. Connect the host cable to the HOST of the SC5000
(see figure below)
. Next,
wire ETH2 from the SC5000 to ETH1 of the first Slave, and then from the
first slave ETH2 to ETH1 of the next slave and so on. If wiring the scanners
in a complete ring configuration, connect ETH2 of the last slave in the series
to ETH1 of the SC5000.
4. Connect the encoder (tachometer) and photoelectric sensor (trigger) to the
bottom of the SC5000 Controller
(see figure above).
5. Connect the (unpowered) Power supplies to the scanners and SC5000.
