Electrical Installation
34
DX8210 Barcode Scanner

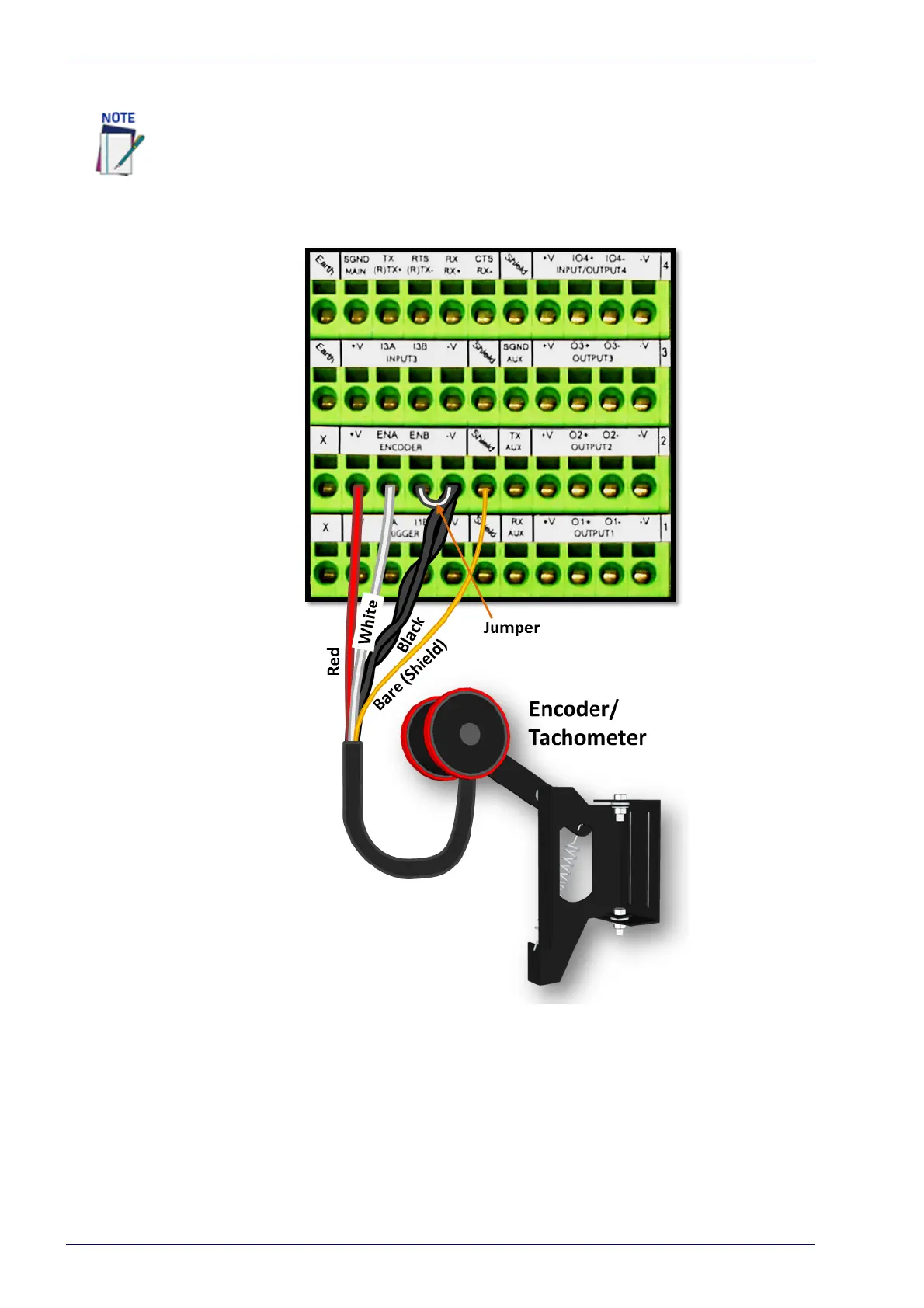

Encoder/Tachometer Wiring for PNP Output (two models)
Some tachometers may have a different color coding:
Red (+V) or White/Orange
White (signal) or White/Blue
Black (ground) or Orange/White
