CBX100 Connection Box
Reference Manual 39
Connecting to the SC5000 System Controller (Optional)
In larger scanning arrays (scanning tunnels), an SC5000 controller can act as the
system master and support up to 31 slave DX8210/DX82110 barcode scanners
in an Ethernet-based connection loop (EBC). SC5000 wiring connections are

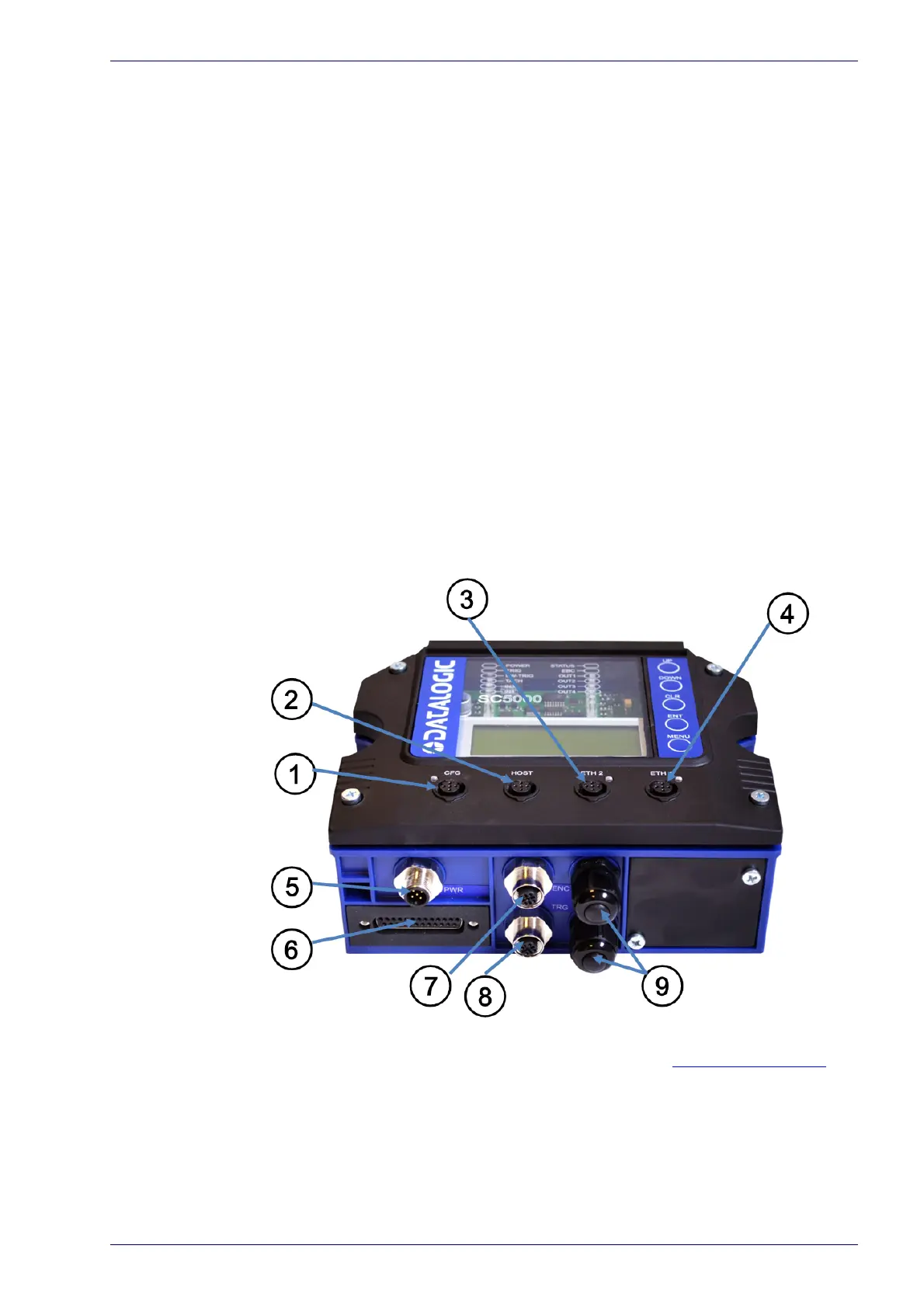

made to the front and bottom connector panels. In most applications, the cable
connections to the scanner will include:
1. CFG (Configuration via laptop Ethernet cable)
2. HOST
3. ETH 1 (EBC scanner network)
4. ETH 2 (EBC scanner network)
5. POWER
6. I/O (Connects directly to the 25-pin D type connector on the CBX connec-
tion box)
7. ENC (PNP Encoder/Tachometer)
8. TRG (PNP Trigger/Photoelectric Sensor)
9. Water-tight connectors
Complete installation information for the SC5000 Controller is available in the
SC5000 System Controller Reference Manual
available at www.datalogic.com.
To Next Page
