Maintenance
268
DX8210 Barcode Scanner
2. Check all wiring connections to the CBX connection box and/or SC5000
Controller. Tighten any loose connections as necessary. Do not over-
tighten.
3. Check all cabling/conduit for signs of wear/damage. Repair/replace any
damaged cable connections as necessary.
Verify Barcode Scanner Operation
If after performing maintenance, the barcode scanning system continues to per-
form below the normal operations experienced with the system under normal
daily conditions, contact Datalogic through our website at
www.datalogic.com.
Verify Photoelectric Sensor Operation
1. Block the Photoelectric Sensor emitter beam to confirm it is aligned prop-
erly with the reflector.
2. Verify that the TRIGGER LED on barcode scanner lights YELLOW when pho-
toelectric sensor beam is blocked.
3. If the photoelectric sensor’s LED does not change status, adjust the photo-
electric sensor so that it is properly aligned with the reflector.
4. If the TRIGGER LED on the barcode scanner is not green when the photo-
electric sensor’s beam is blocked, check the cabling between the photo-
electric sensor and CBX510 or SC5000 for damage.
Verify Tachometer Operation
Rotate the tachometer wheel slowly.

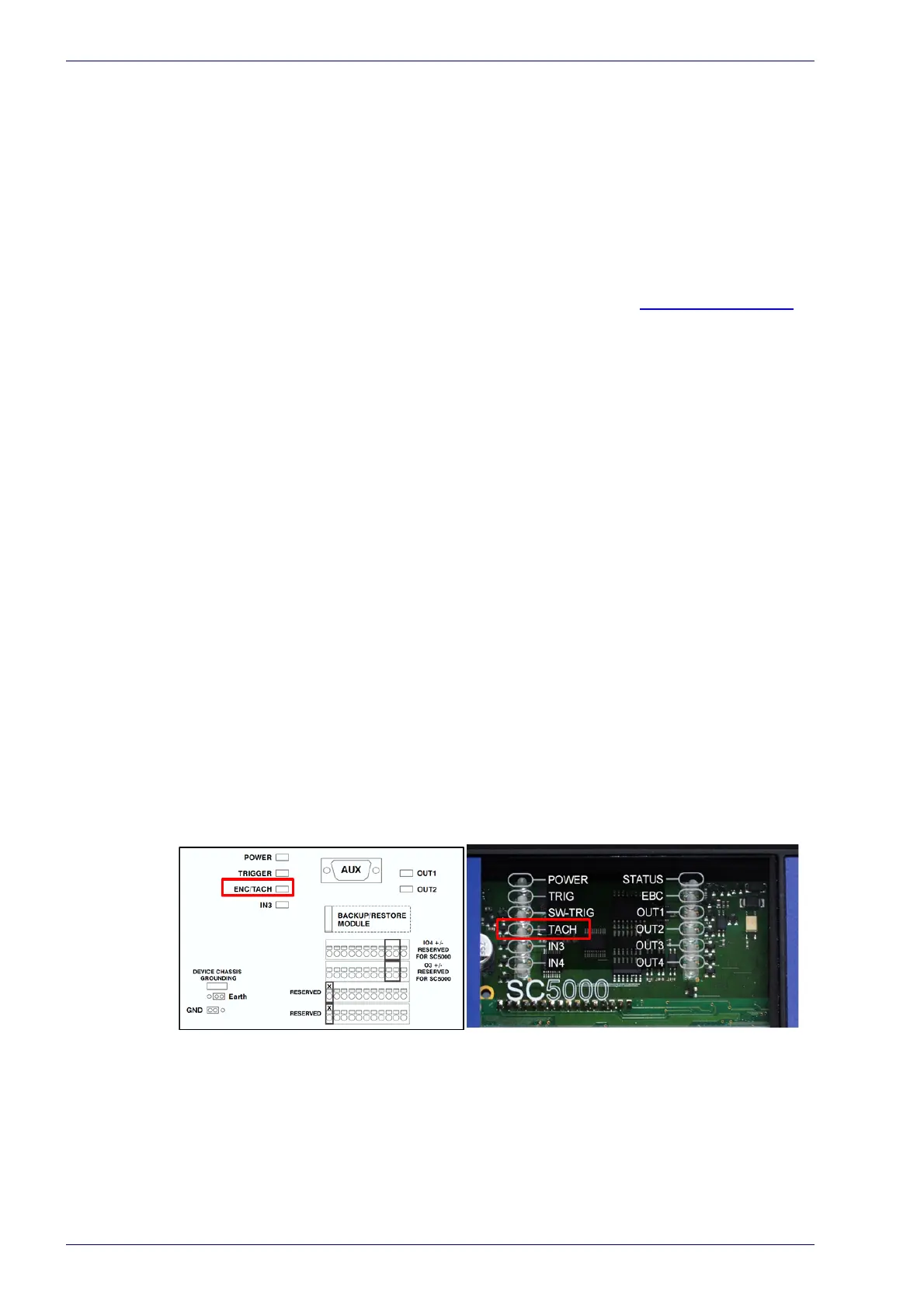

The ENC/TACH LED in the CBX510 or the TACH LED on the SC5000 should flash
indicating the tachometer is operational. Also, you can view the belt speed by
navigating to Diagnostics | Monitor in e-Genius
(see section ).
If these indicators do not register feedback when the tachometer wheel is
rotated, check the cabling between the tachometer and the CBX510 for damage.
