Installation
Reference Manual 17
Mounting the Scanner
The DX8210 can be installed to operate in any position. There are screw holes
(M6 X 8) on the sides and back of the scanner for mounting. The diagram below
can be used for installation; refer to your application drawing for correct posi-
tioning of the scanner with respect to the reading zone and scanner orientation.
There are two bracket options for mounting the DX8210, the large rear-mounted
L-
Bracket (93ACC0151, included in the box with the reader), and two smaller
side-mounted L-Brackets (93ACC0079, optional accessories).
Large Rear-Mounted L-Bracket

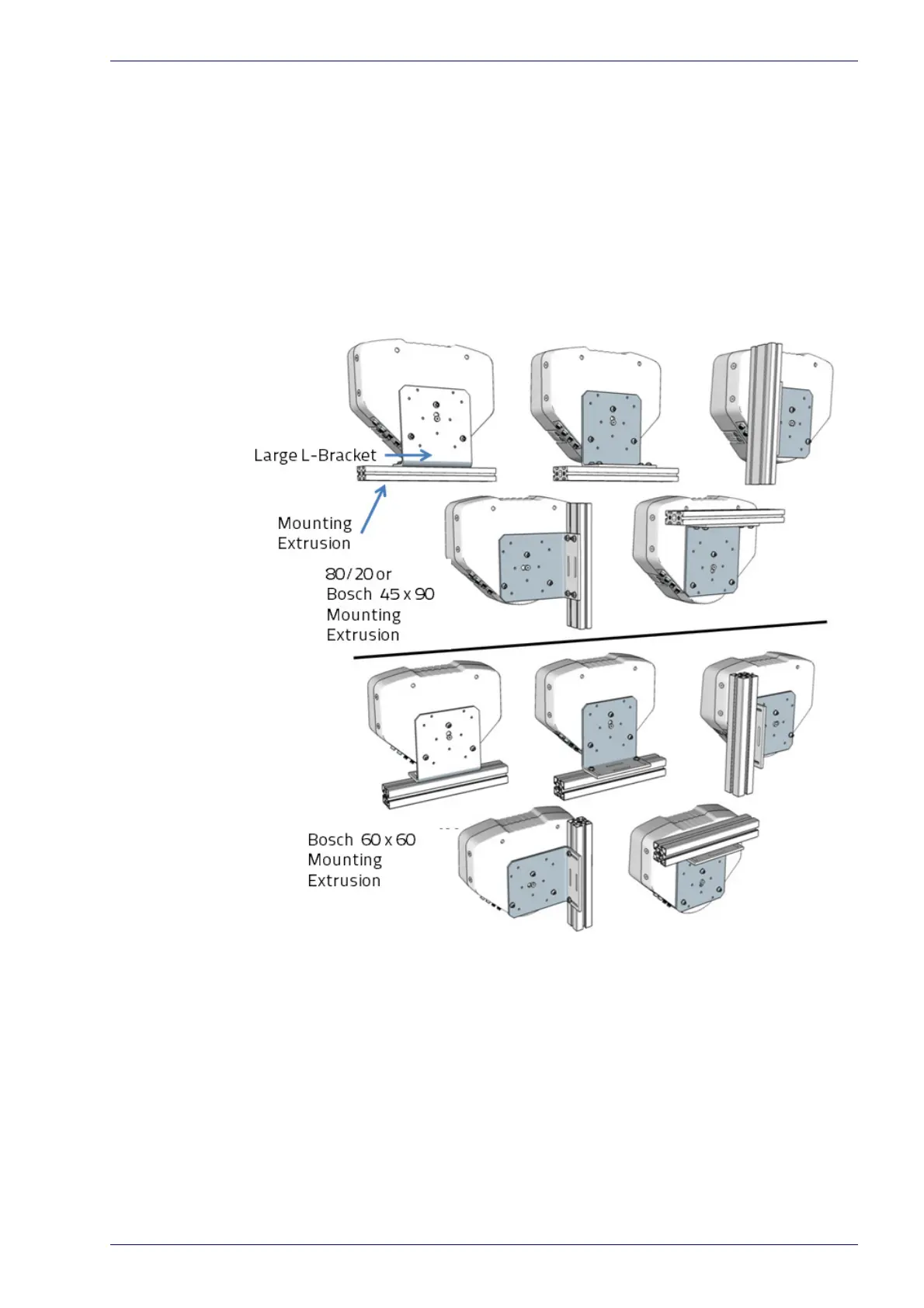

To aid in mounting the DX8210 with the large L-Bracket, mount the bracket to
the mounting structure as shown. Next, insert the shoulder screw (provided) into
the central mounting hole in the back of the unit, and then hang the scanner
using the brackets keyhole, as shown in figure 14 below. Finally, secure the
scanner to the bracket with mounting screws.
