Datalogic DX8210 User Manual

Minimum Code Height for ACR Reading (mm)
45° 30°
Conveyor Speed (m/s)
0.
5
1
1.
5
2
2.
5
3
0.
5
1
1.
5
2
2.
5
3
EAN 8-13, UPC-A
Code Resolution
(mm)
0.25 7 8 9 11 12 14 5 6 7 8 9 11
0.30 8 9 10 11 13 14 6 6 7 9 10 11
0.33 9 10 10 12 13 15 6 7 8 9 10 11
0.38 10 11 11 12 14 15 6 7 8 9 10 12
0.50 12 13 14 14 15 17 8 8 9 10 11 12
0.72 16 17 18 18 19 20 10 11 11 12 13 14
1.00 21 22 23 24 24 25 13 14 15 15 16 16
Barcode Scanning Features
254 DX8210 Barcode Scanner
Reading Diagrams

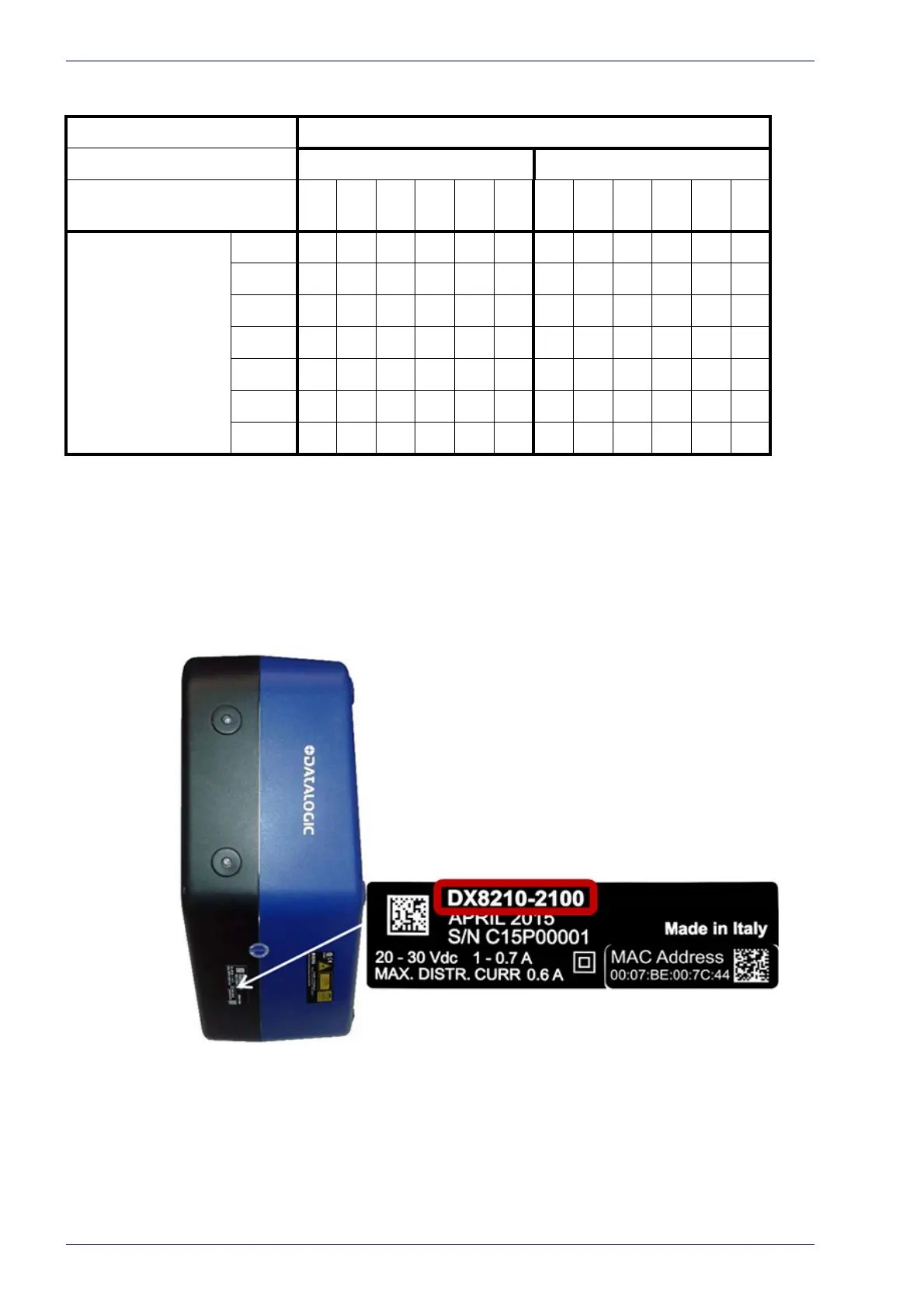

The model type is shown on the serial label.
• DX8210-2100 is Standard Resolution
• DX8210-4100 is Standard Res
olution Extended
• DX8210-4200 is Hi
gh Resolution Extended
These reading diagrams were based on the following environment:
• 1000 scans per second (standard) throughout depth-of-field (DOF)

Datalogic DX8210 Specifications
