User Interface
106
DX8210 Barcode Scanner
Ethernet | User Sockets

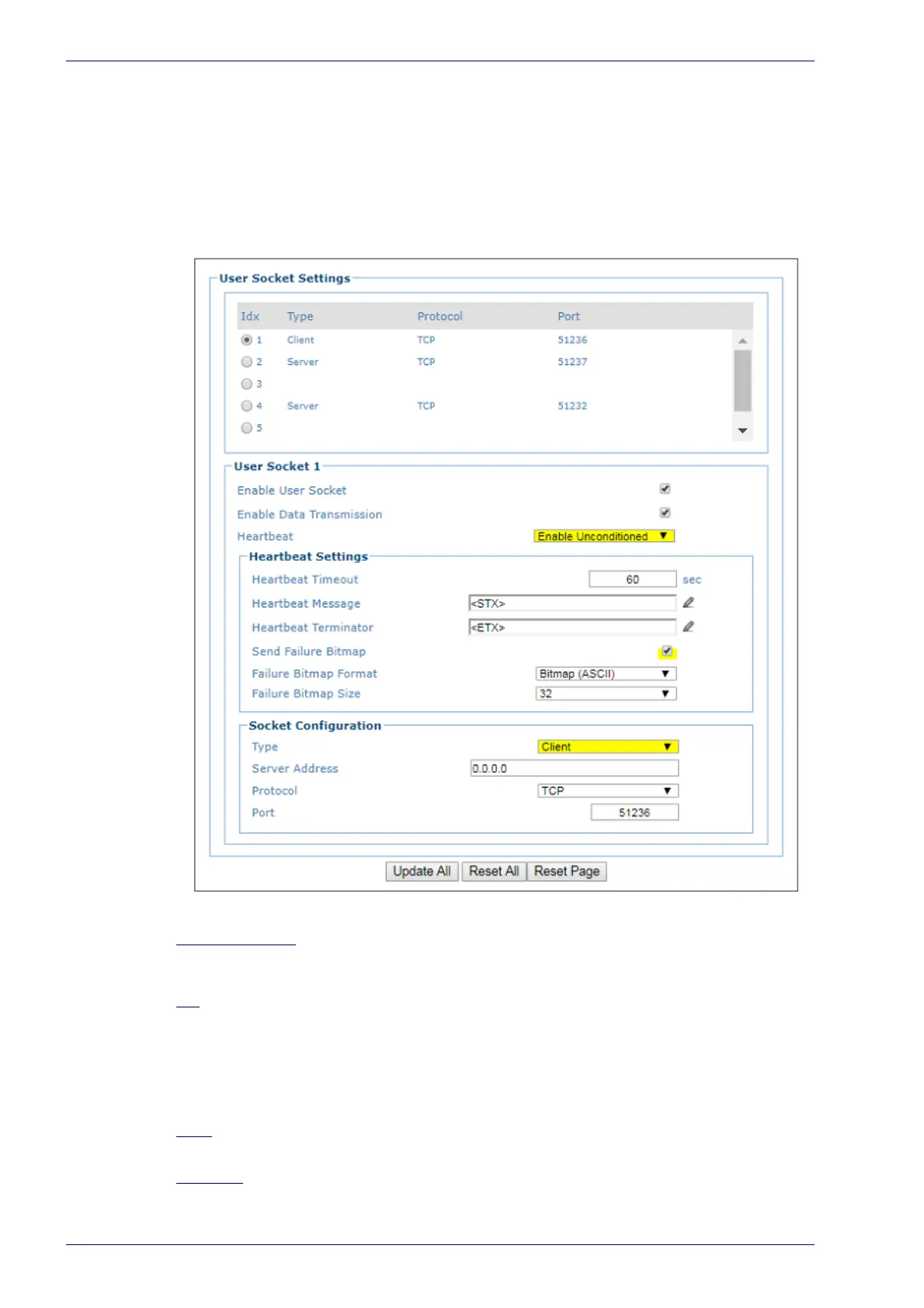

Use the User Sockets (User Socket Settings) window to setup, edit, and configure
numbered user sockets for your barcode scanning system. User sockets are
another interface available for Ethernet communication.
To edit the User Socket settings:
1. In the menu under Modify Settings, navigate to Global Settings | Ethernet |
User Sockets. The User Sockets window opens.
2. Enter the appropriate information in the form as described below:
User Socket List
Select an option button in the list at the top of this window to create a new user
socket, or to edit an existing one.
Idx
Select the Idx for the row/user socket you wish to enter or edit.
If a row is disabled, a user socket can be selected and configured for that
row.
If a user socket is displayed in the selected row, its configuration can be
edited.
Type
The type of socket specified.
Protocol
The type of protocol specified.
