PackTrack™
Reference Manual 241
38. When you have finished making changes, click Update All to save all pend-
ing changes, click Reset All t
o revert to all previously saved values, and click
Reset Page to revert to previous saved values on the current page.
39. See Verifyi
ng PackTrack Calibration
.
0.
Verifying PackTrack Calibration

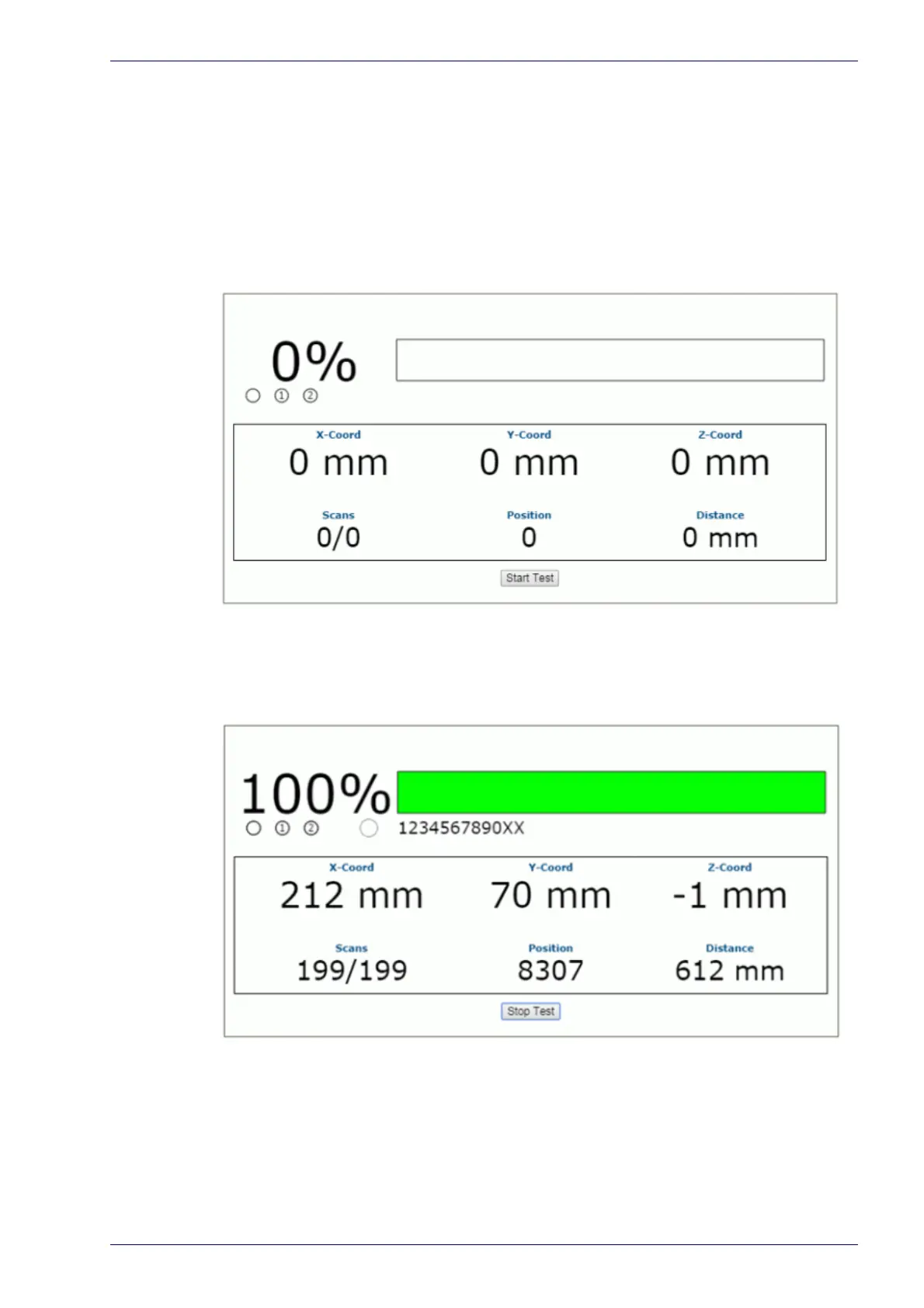

1. In the menu tree, navigate to Diagnostics/Read Test. The Read Test window
opens.
2. Place a barcode anywhere in the scanner's laser beam other than where you
placed the labels for calibration.
3. Click Start Test. The system runs a test to
identify the location of the bar-
code within the read area and displays
the results in the Read Test window.
4. Physically Measure the X (from left edge), Y (From PS), and Z (code height)
coordinates of your test barcode, and compare your measured results to
the Read Test results.
Your measured results and those displayed should be
close (within a few millimeters) but do not need to be exact.
