Electrical Installation
32
DX8210 Barcode Scanner

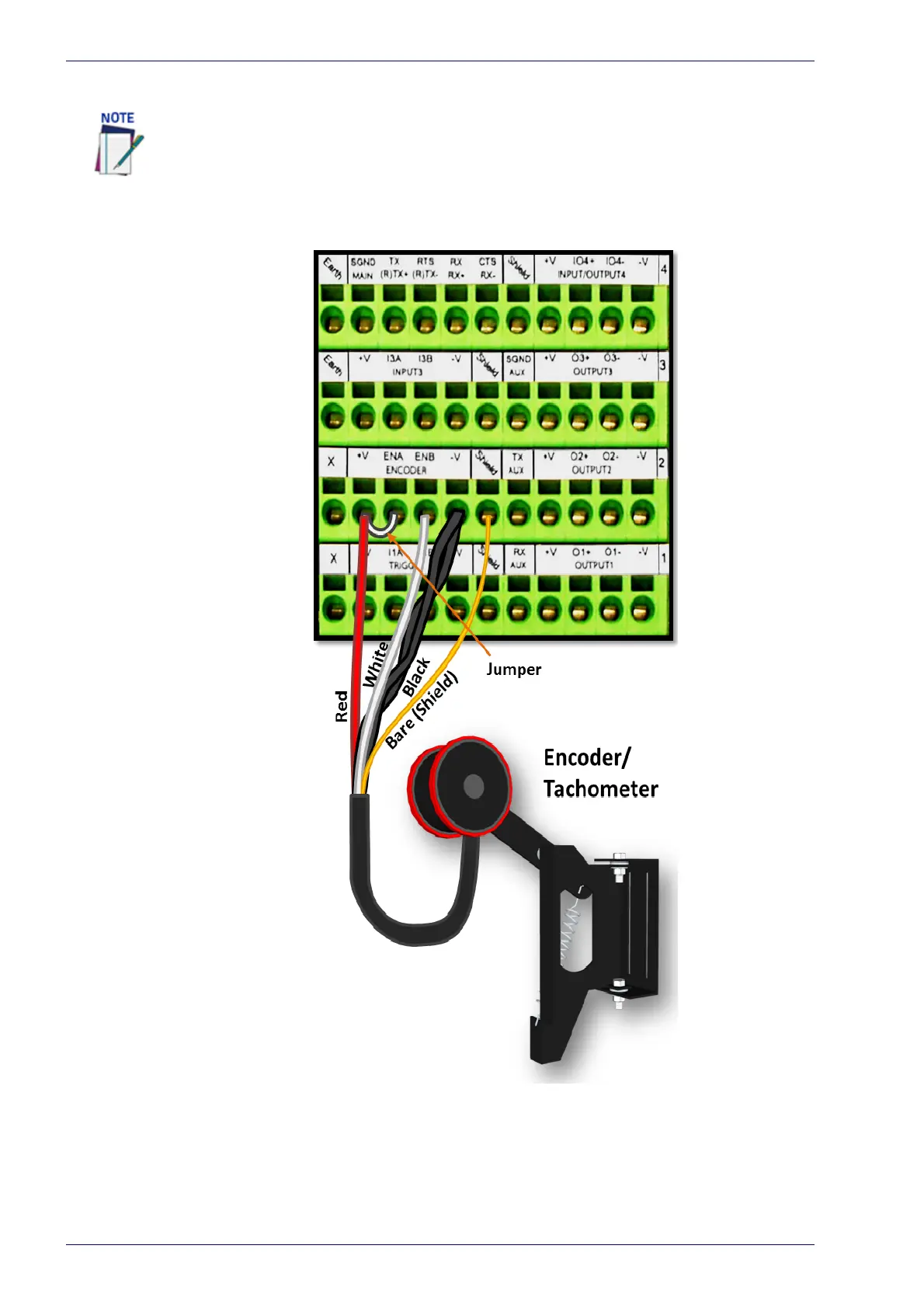

Encoder/Tachometer Wiring for NPN Output (two models)
Some tachometers may have a different color coding:
(+V) Red or White/Orange
(Signal) White or White/Blue
(Ground) Black or Orange/White
