Installation
Reference Manual 15
Installation
Dimensions and Clearances

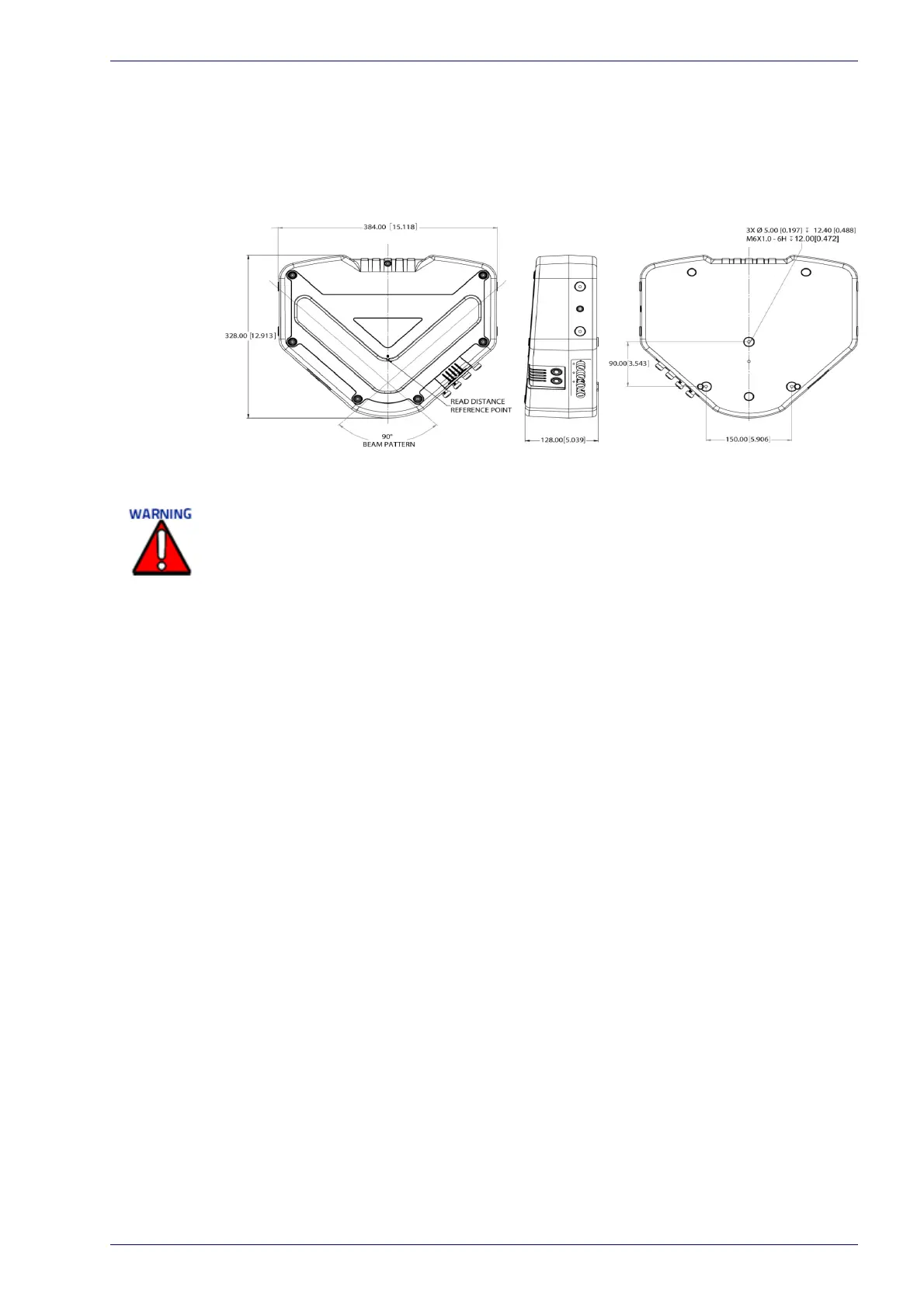

The overall dimensions of the DX8210 are 384 x 128 x 328 mm [15.1 x 5 x 12.9 in].
Physical Support Requirements
For details on the weight of the barcode scanners,
see Chapter 8, Technical Fea-
tures.
Multiple-head systems may include further details on the physical support
requirements with any application-specific documentation provided.
Vibration Limitations
See “Technical Features” on page 278.
The DX8210 is a sealed, unventilated unit. Mounting the unit with 300mm [12 inches] of
clearance (front, top, and sides) is recommended for cooling and ease of maintenance.
