Typical Connection Block Diagrams
Reference Manual 23

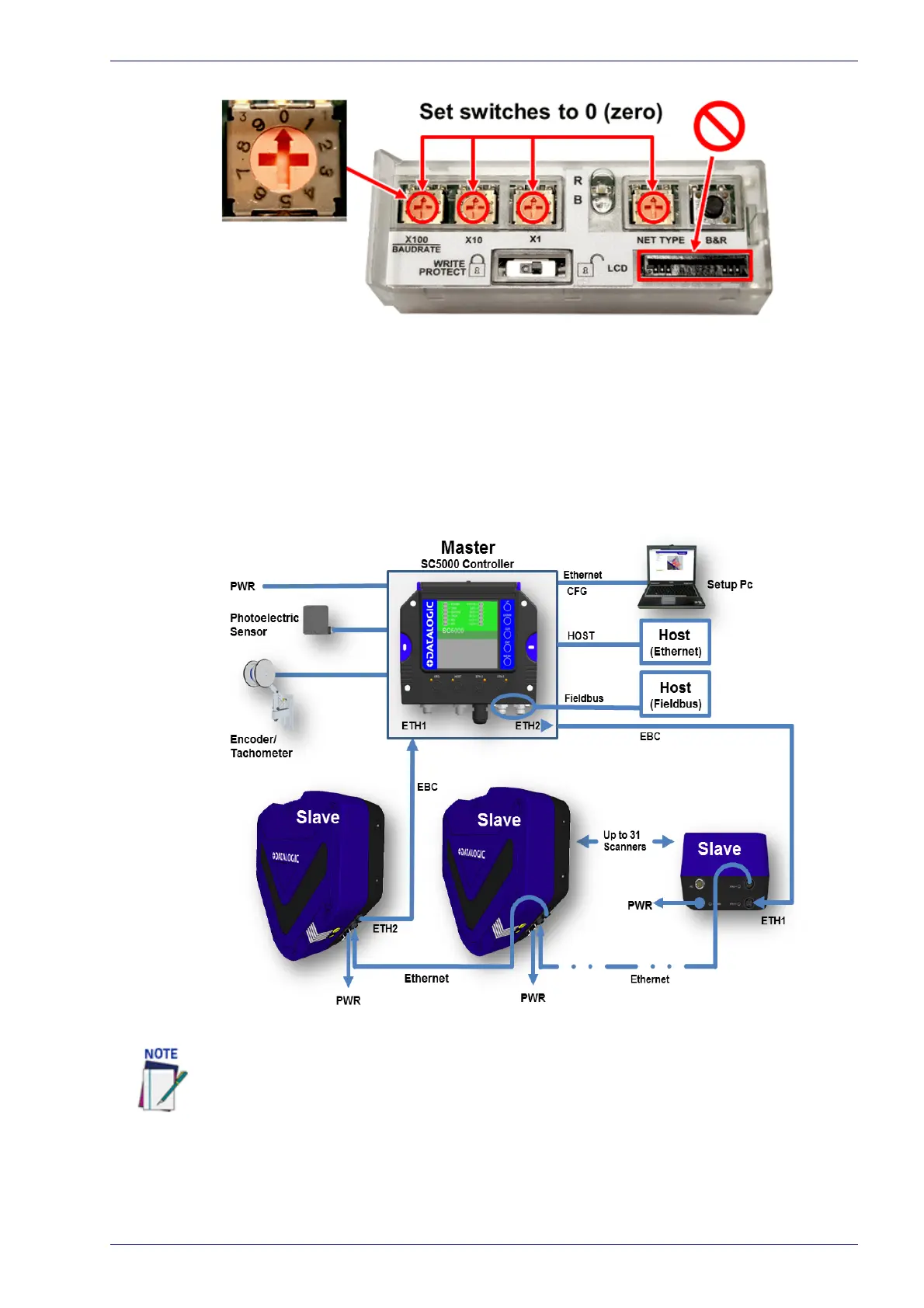

DX8210 Barcode Scanners in an Array with SC5000 Master
In an array (tunnel) using the SC5000 Controller, the chain of scanners com-
pletes a circle from and to the SC5000 Controller via ETH1 and ETH2. In this sce-
nario, if one scanner fails, communication from the other scanners to the
SC500
0 Controller is not interrupted.
When using the SC5000, a Fieldbus Host only connects to the SC5000 Fieldbus model
(Profinet or Profibus) at the connectors shown. It cannot connect to the CBX.
An Ethernet Host connects to the HOST connector on the SC5000 top cover. A Serial
Host must connect through the CBX (see )
To Next Page
