Electrical Installation

38

DX8210 Barcode Scanner

CBX100 Connection Box

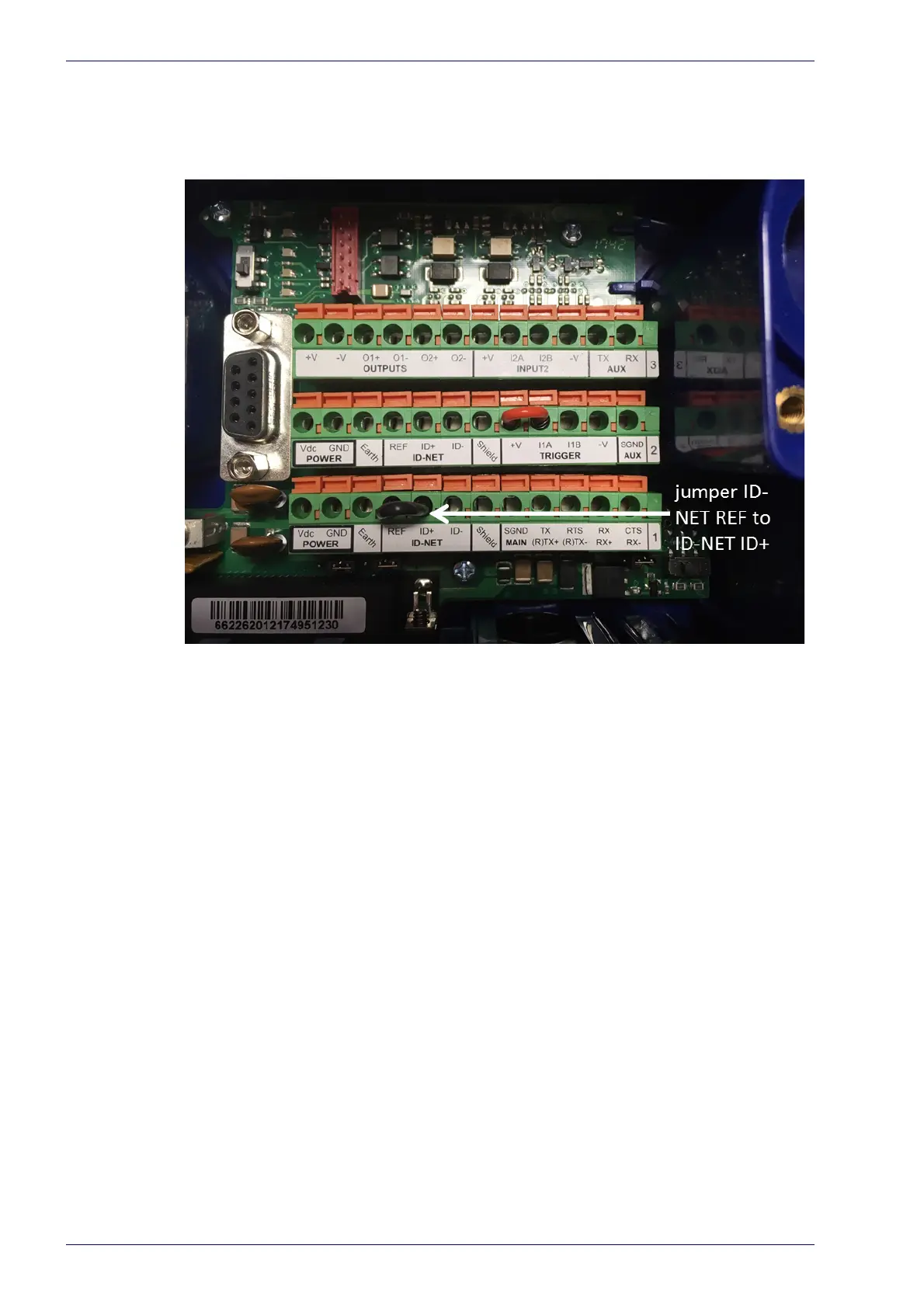

The connections are similar to the CBX510. The only difference is that in the

CBX100 ID-NET REF must be jumpered to ID-NET ID+ as shown below.
